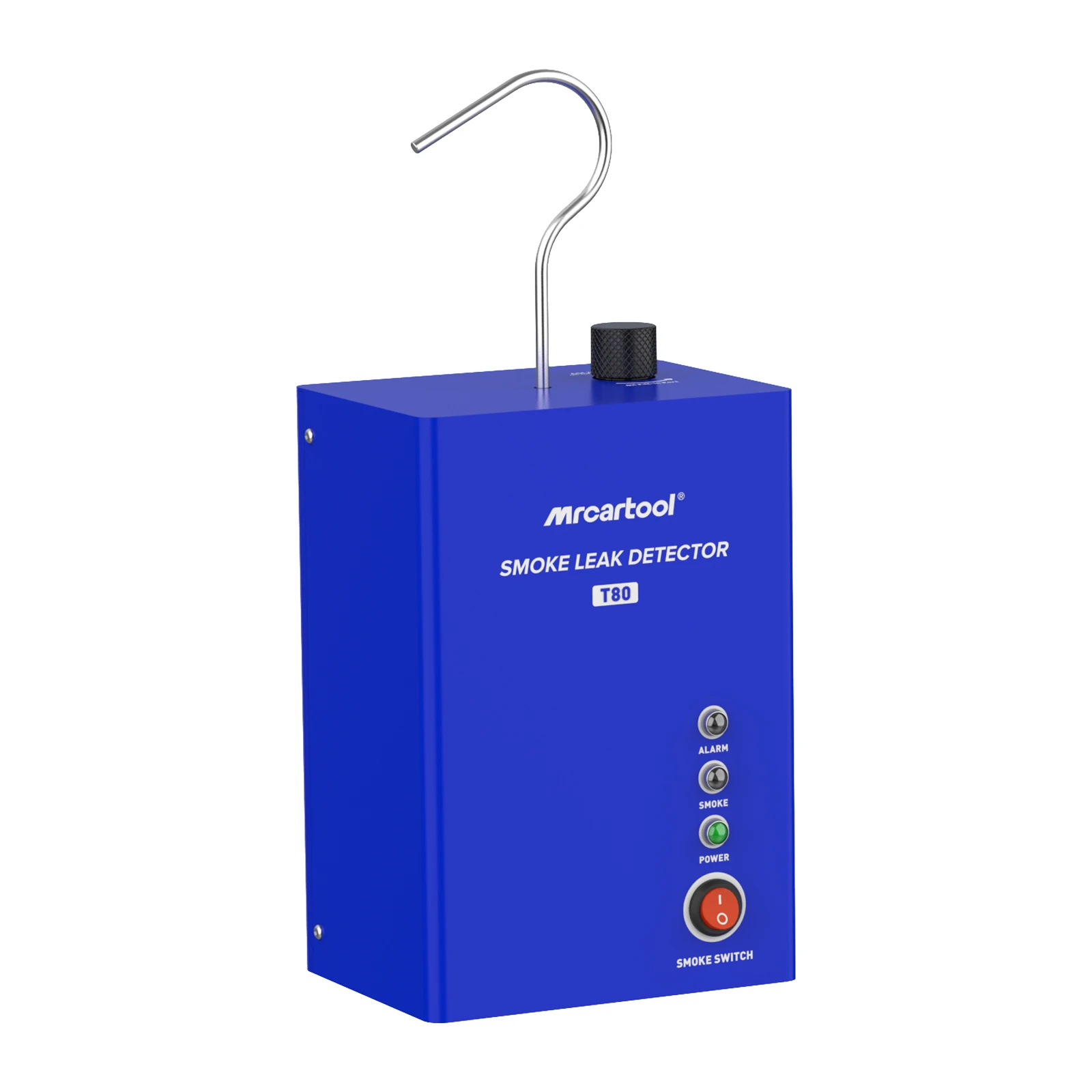

Smoke Machine Leak Detector with Built-in Air Pump
Smoke Machine Leak Detector with Built-in Air Pump
Details

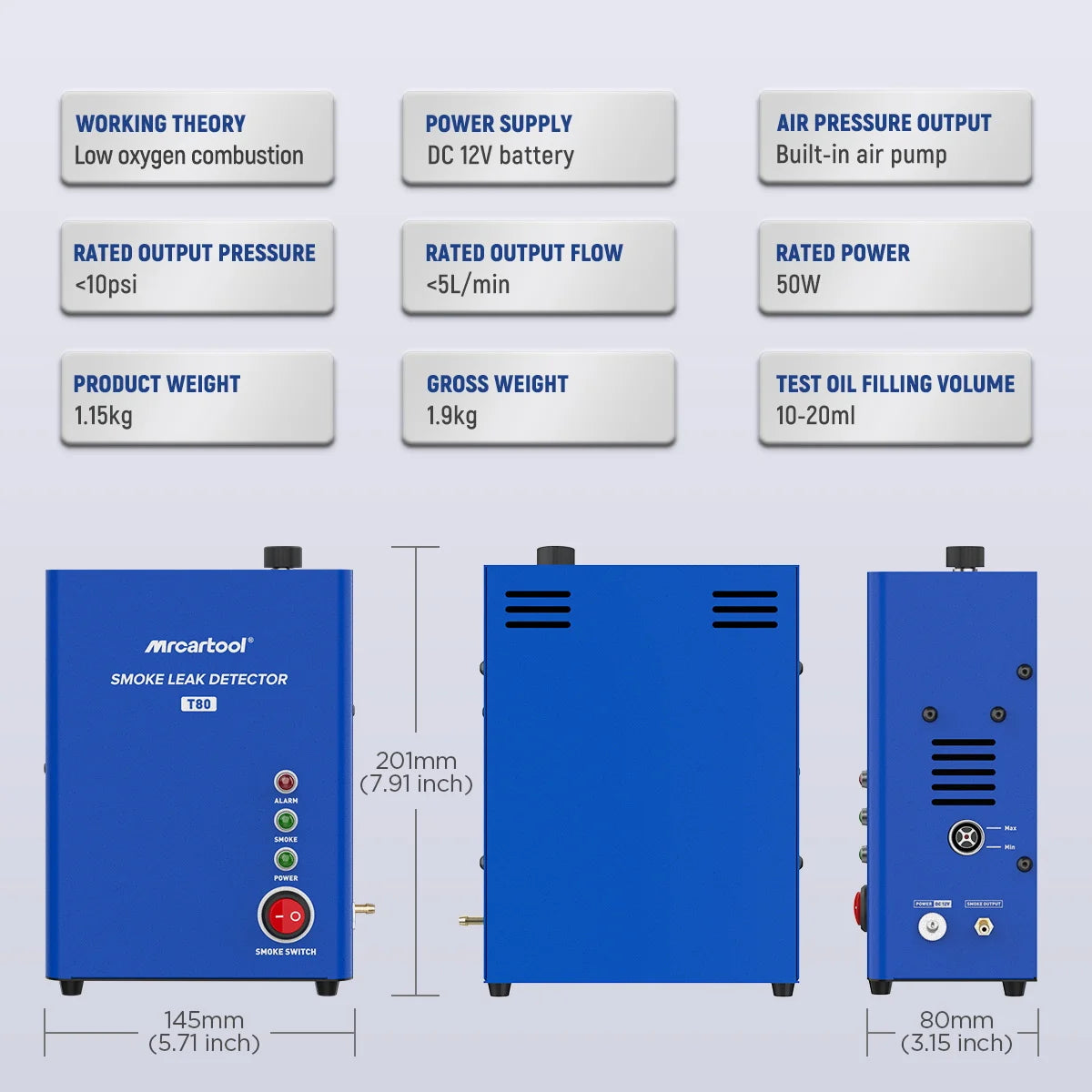

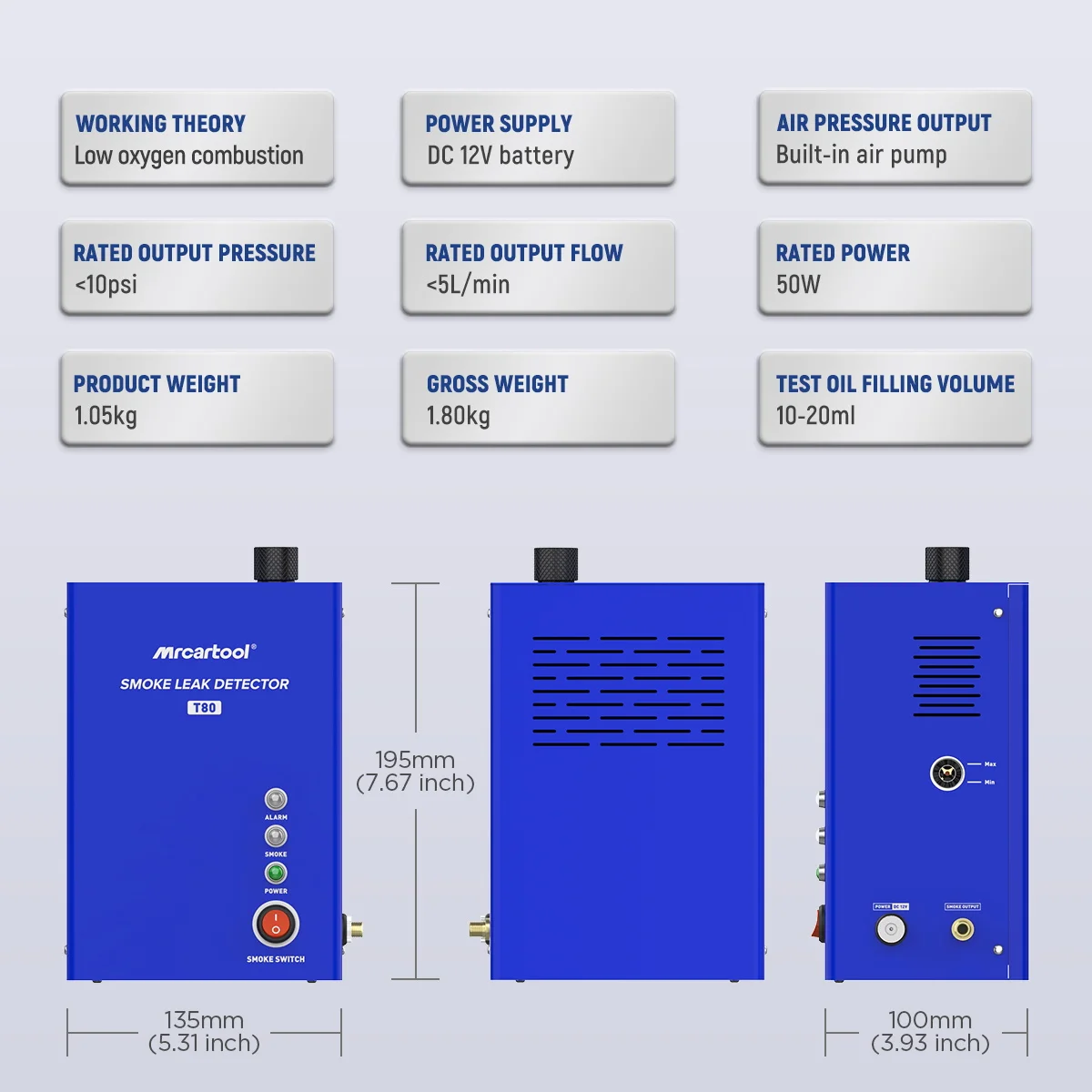

SPECIFICATIONS
Smoke detector with built in air pump
Air Pressure Output: Built-in air pump
Brand Name: MR CARTOOL
Model: T80
Power Supply: DC 12V battery

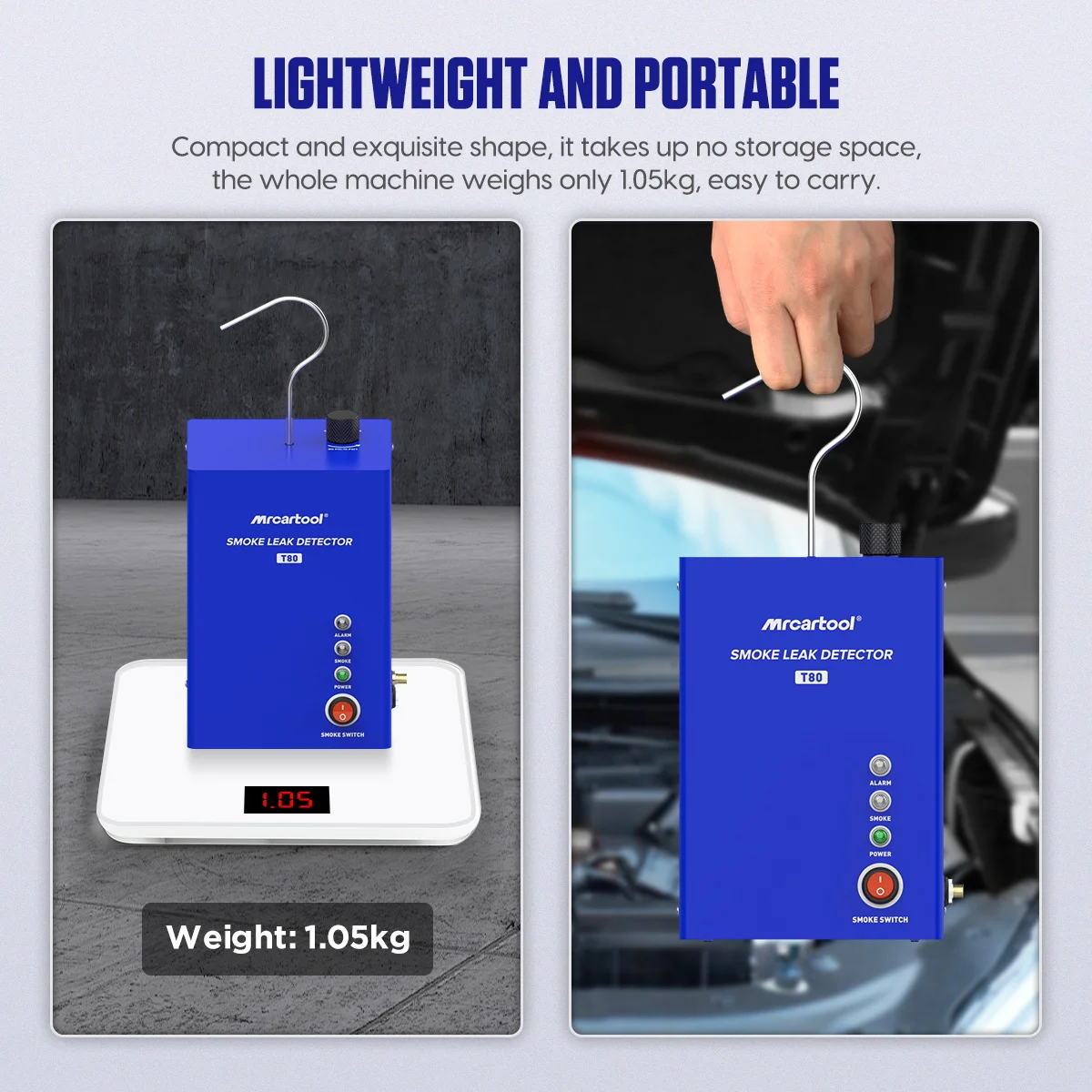

Product Weight: 1.05kg
Rated Output Flow: Lower than 5L/min
Rated Output Pressure: Lower than 10psi
Rated Power: 50W
Test Oil Filling Volume: 10-20ml
Working Theory: Low oxygen combustion

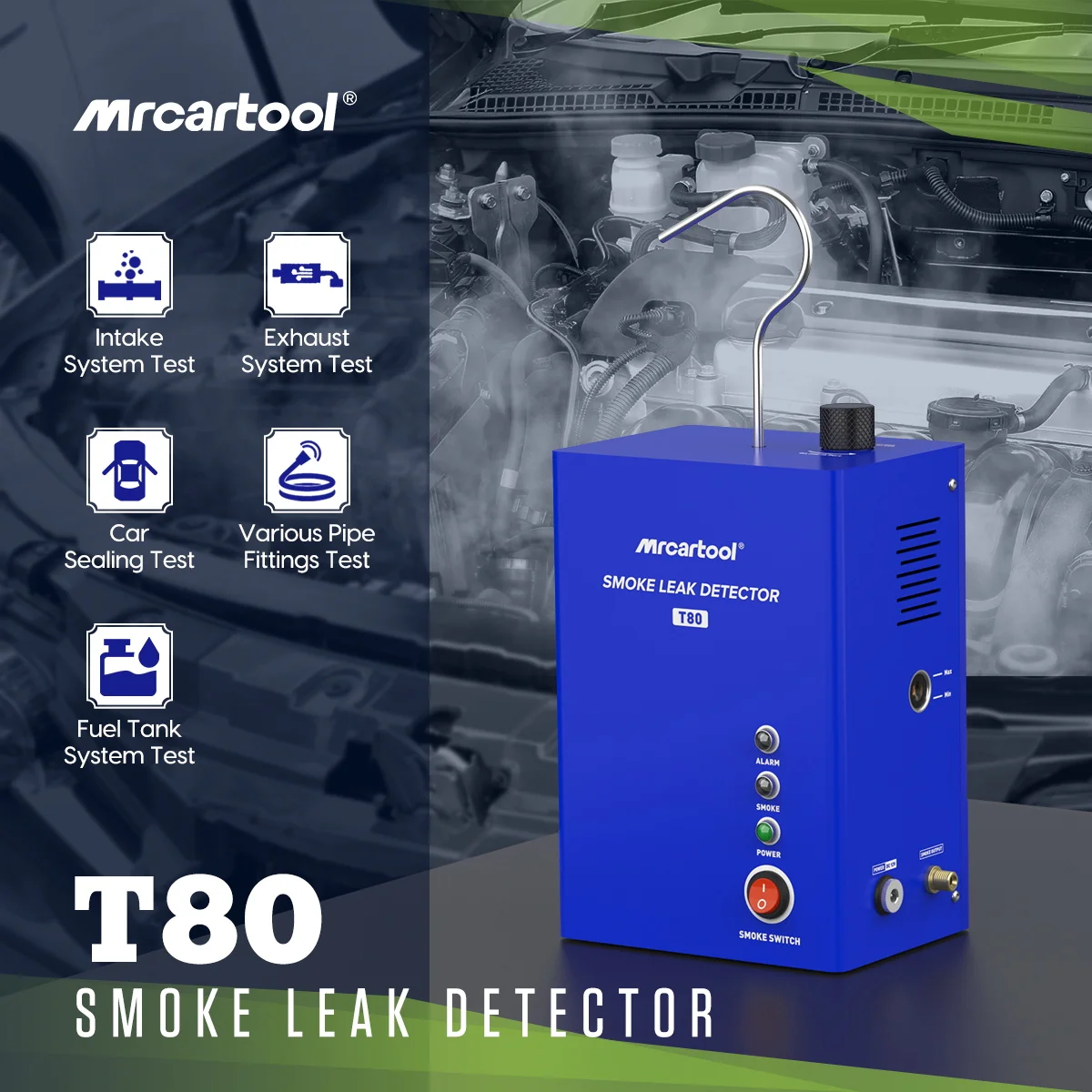

MR CARTOOL T80 Car Smoke Leak Detector is a professional detector which can carry out comprehensive leak detection on automobile pipelines. It is easy to use and works flawlessly. It is an excellent tool for locating and repairing pipes such as car intake, exhaust and emission leaks, and is even more beneficial for maintaining your car, making it healthier and improving driving security.
How to do leakage test ?

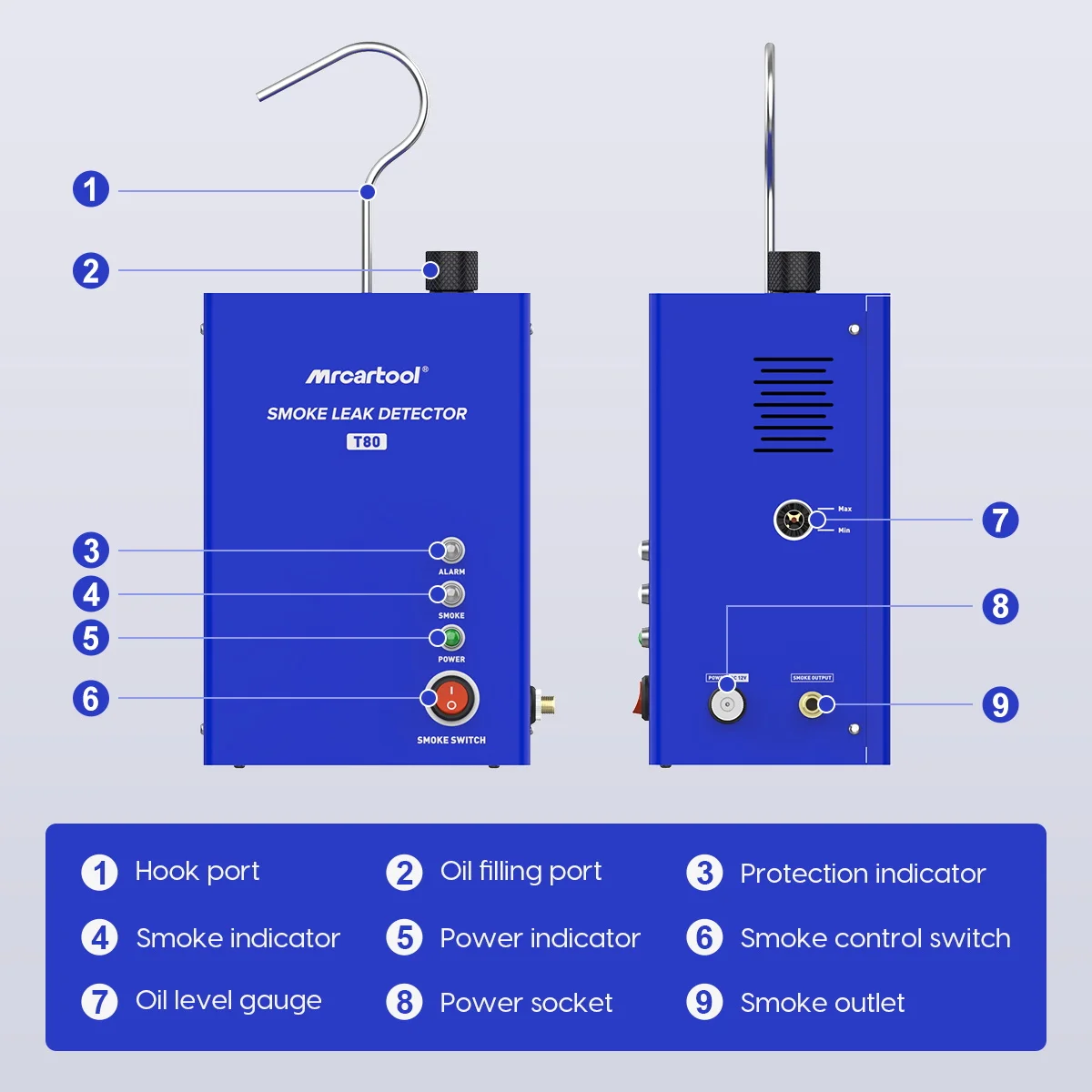

1. Unscrew the oil filler cap and fill it with10ml baby oil into the detector for the first time.
2. Connect the car battery, then turn on the air pump and smoke generator.
3. Connect the smoke hose to the pipeline to be tested through the adapter.
4. In about 10 seconds, the leaks can be found according to where the smoke appears.
MR CARTOOL T80 Car Smoke Leak Detector Features :

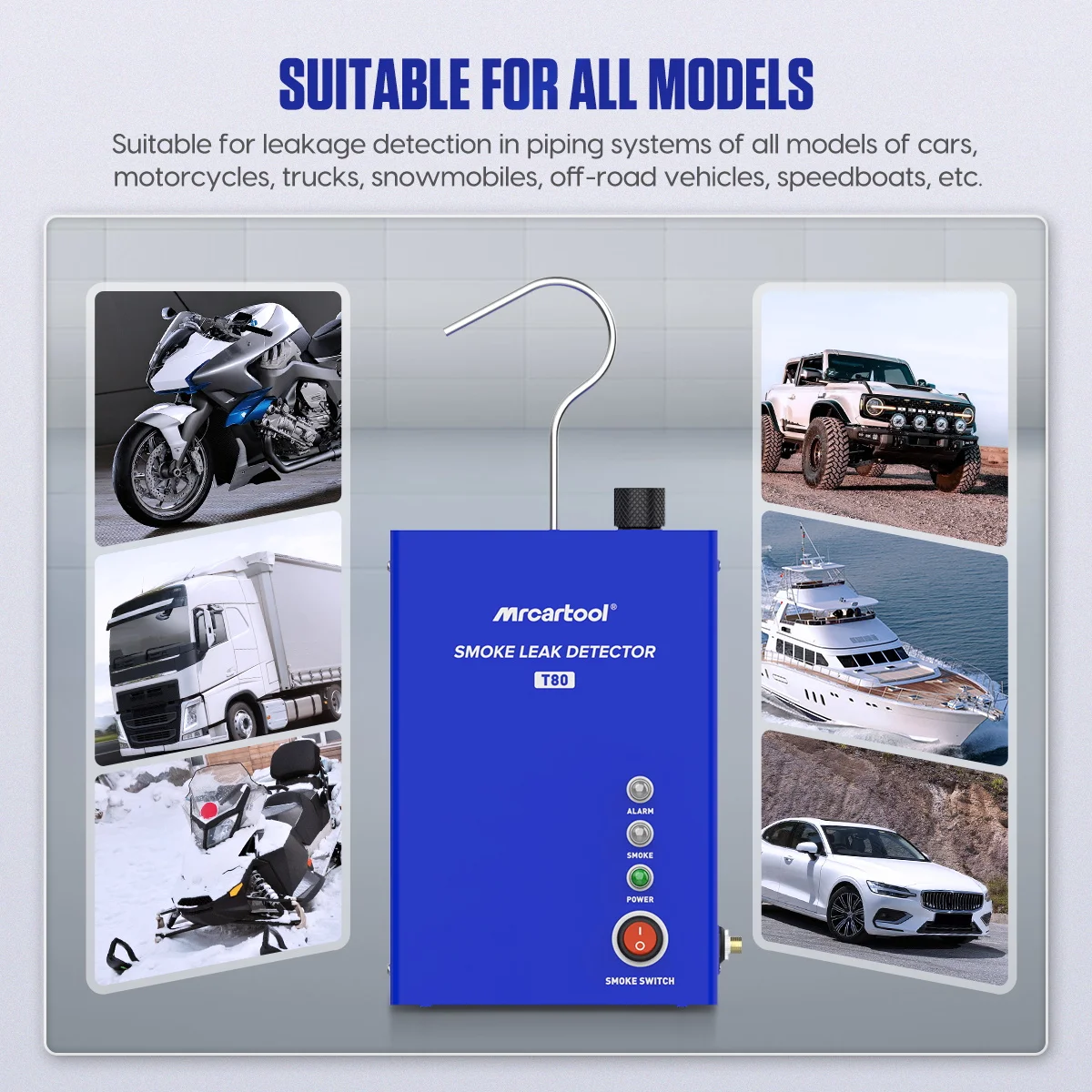

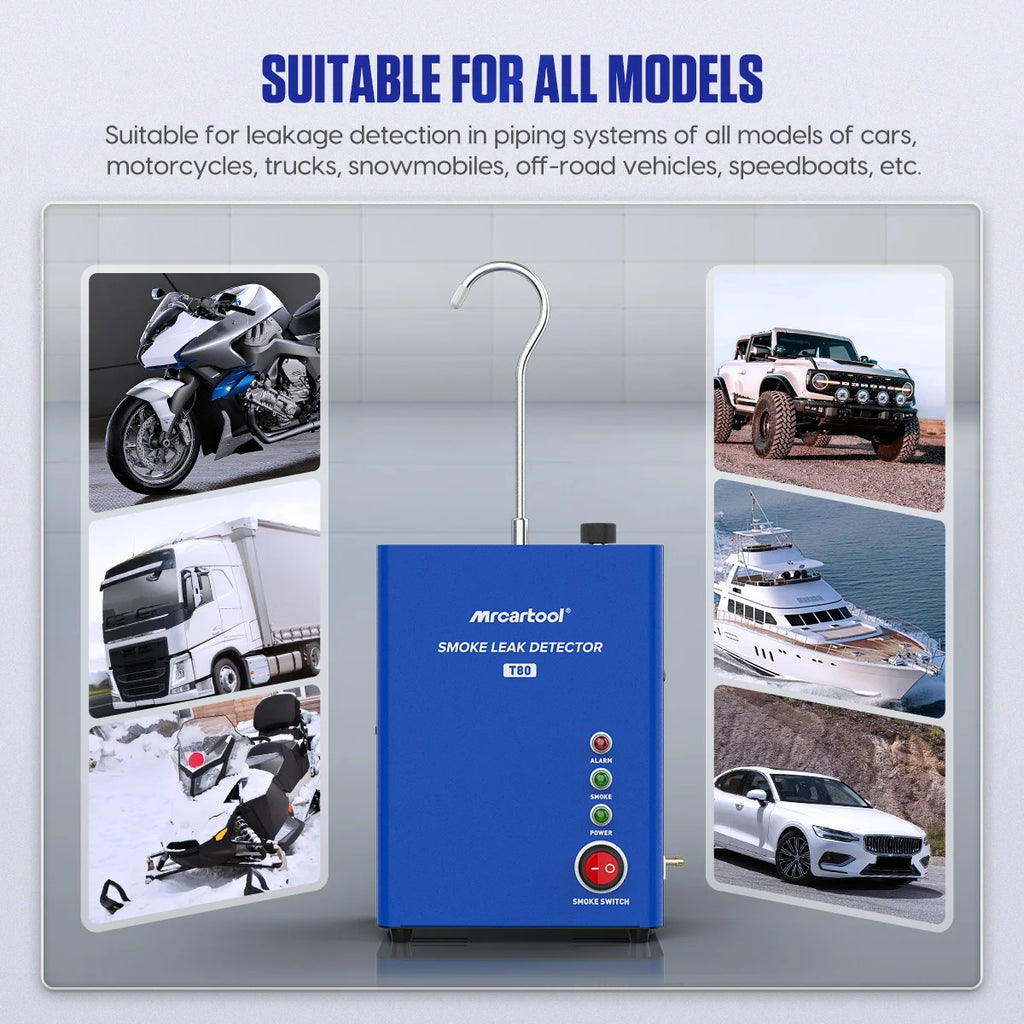

1.[Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

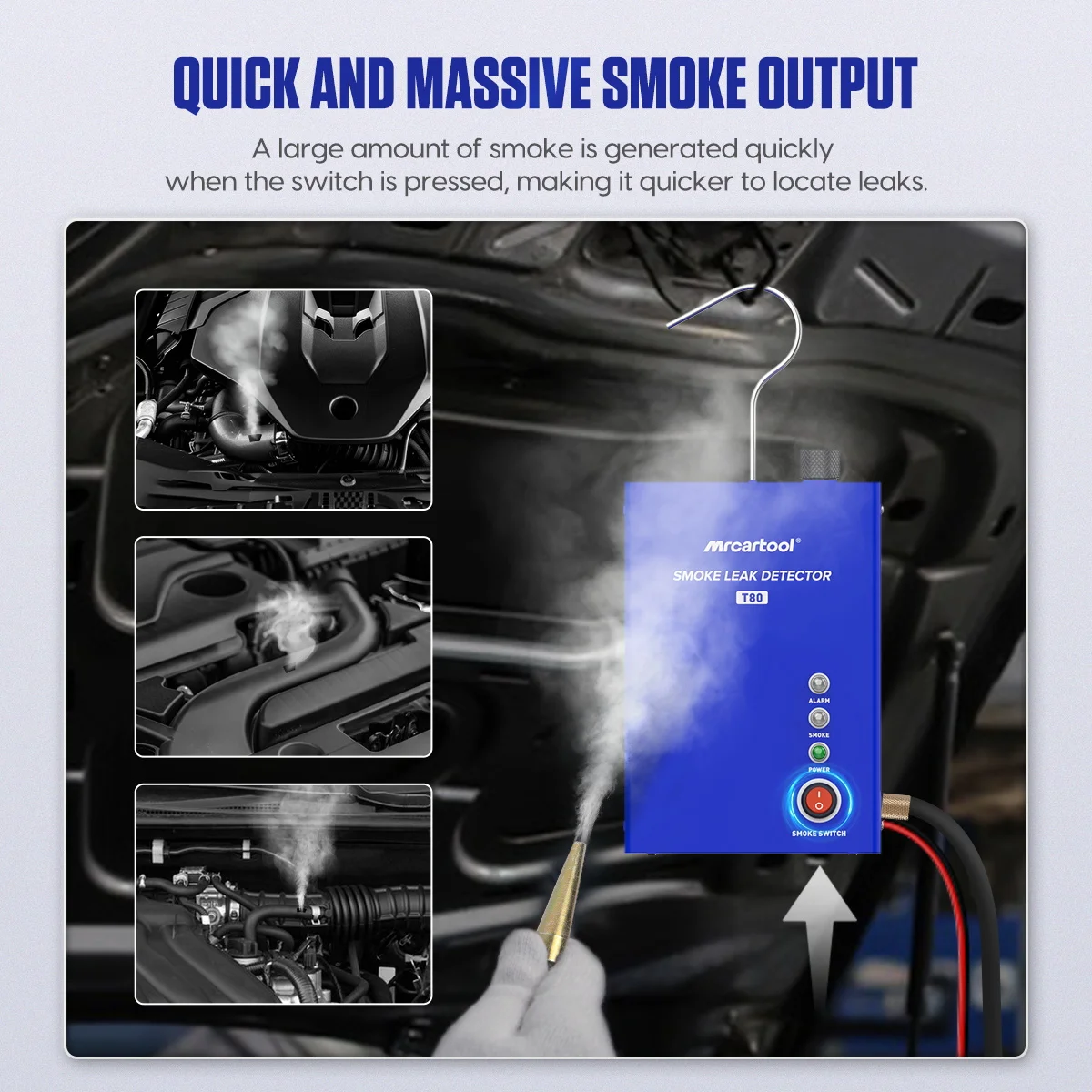

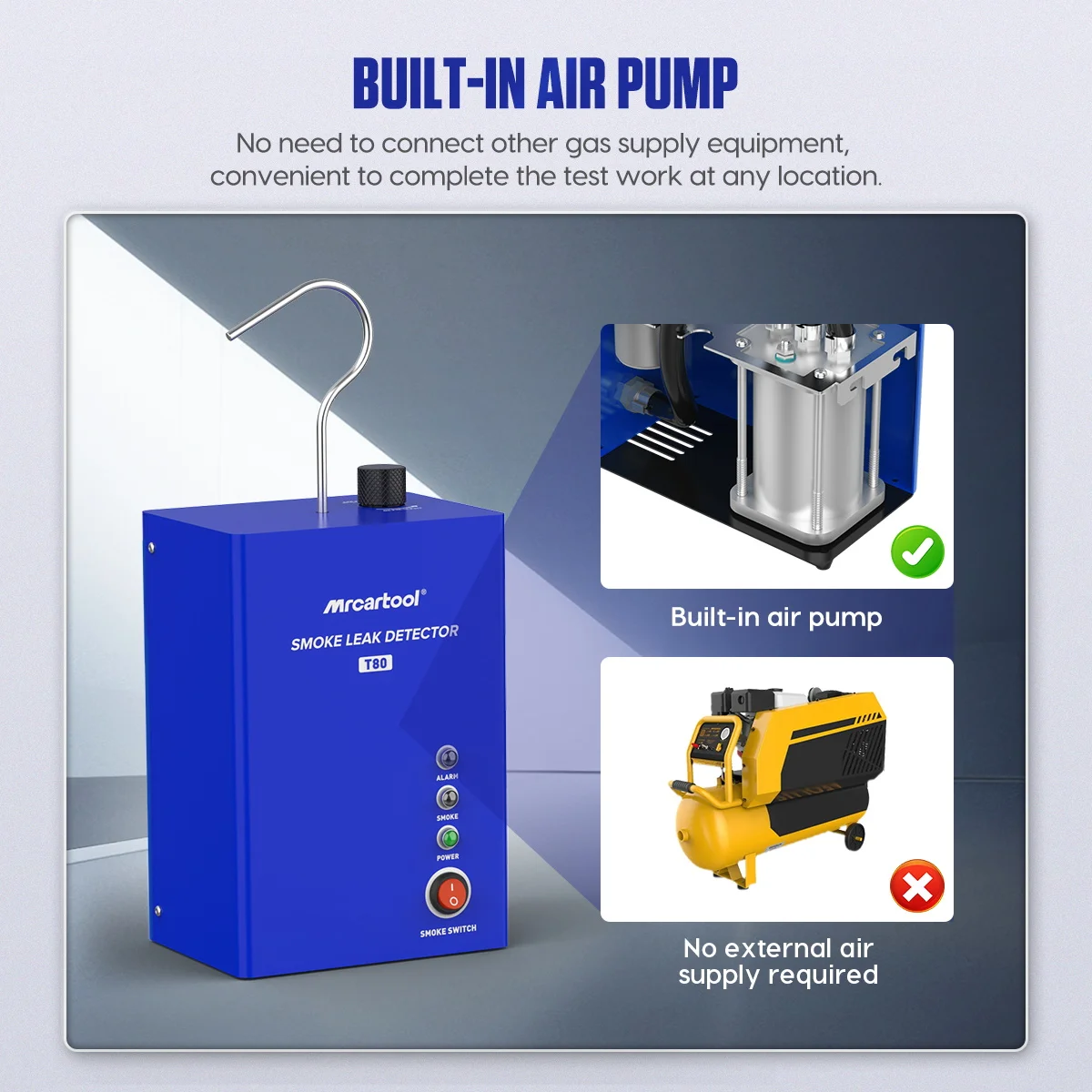

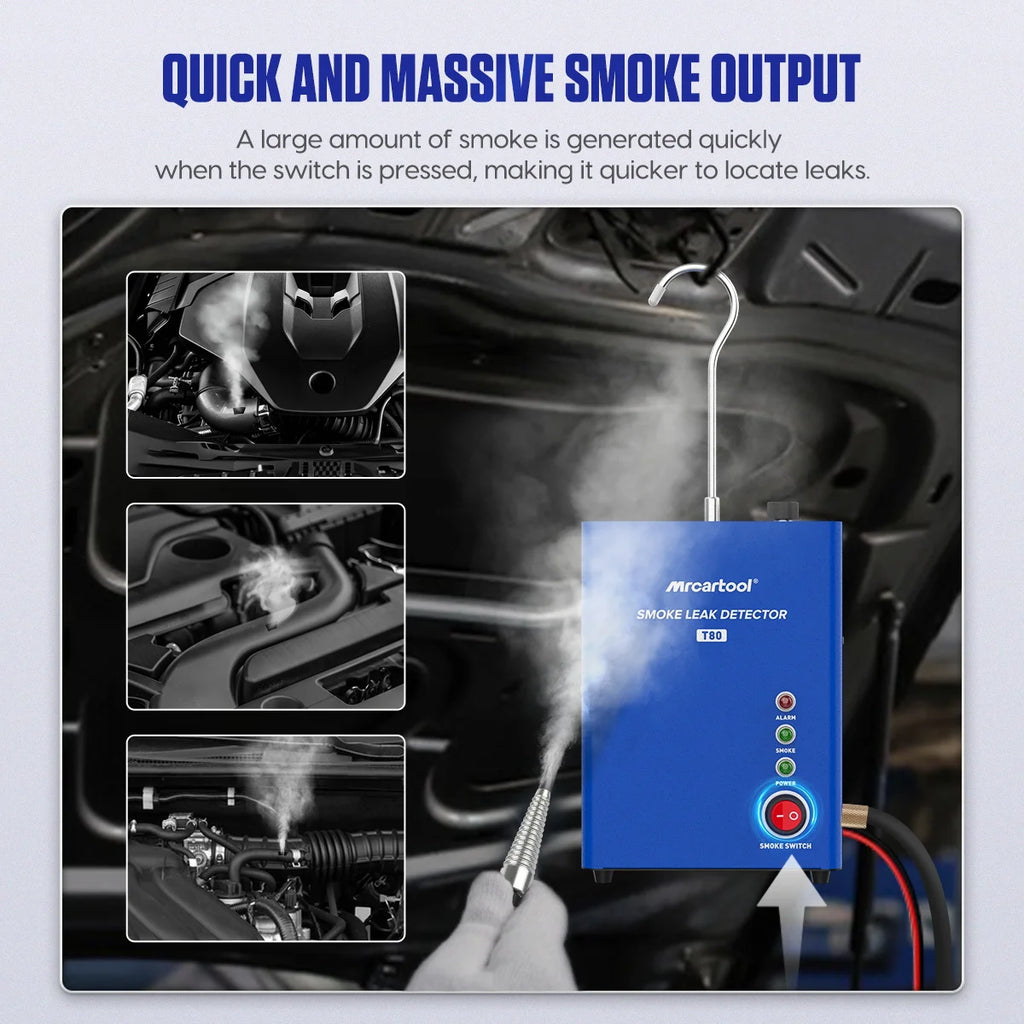

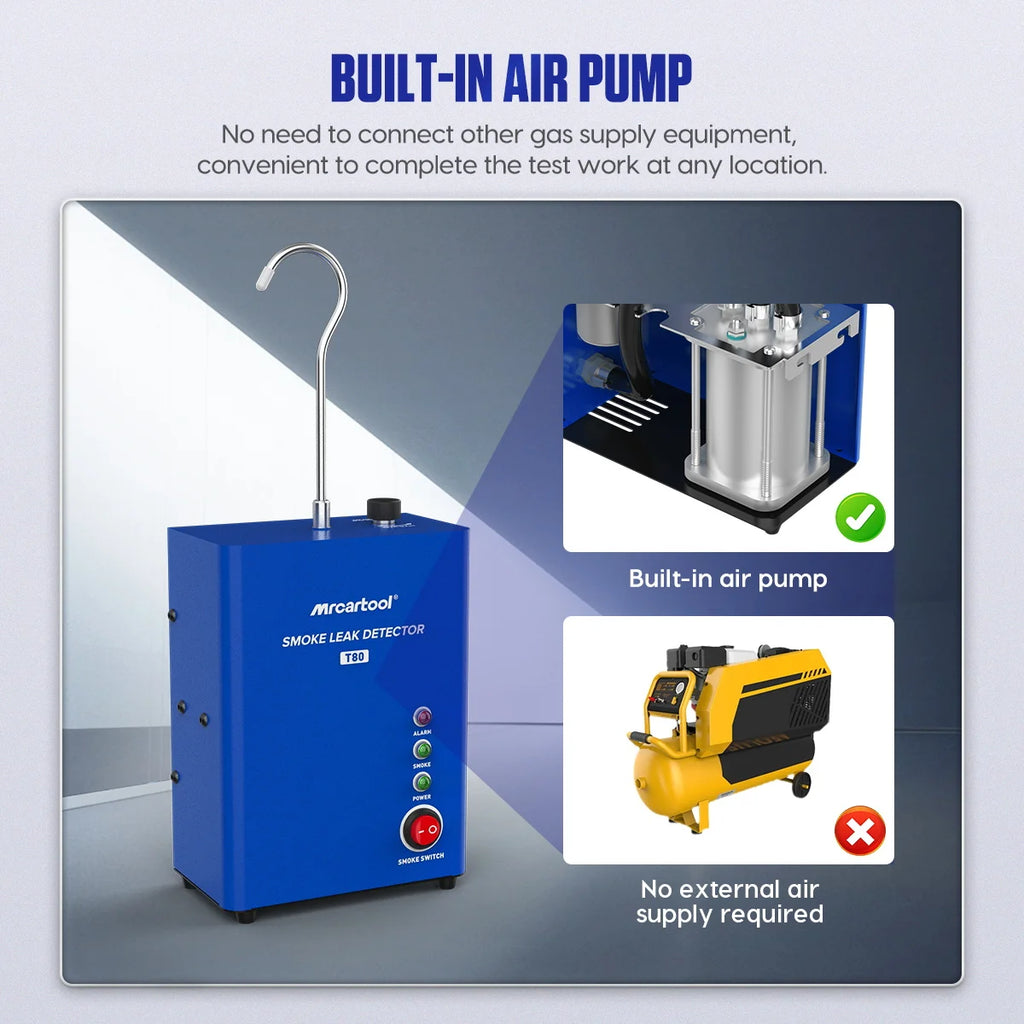

2.[Powerful and easy to operate] The MR CARTOOL T80 has its own air pump, it does not rely on other air machine ,Connect the detector with DC12V battery,It can be outputs lots of Smoke within 30 seconds after turning on.
3.[Advanced technology] It works on the EVAP system (we also have another version that specially designed for EVAP system).

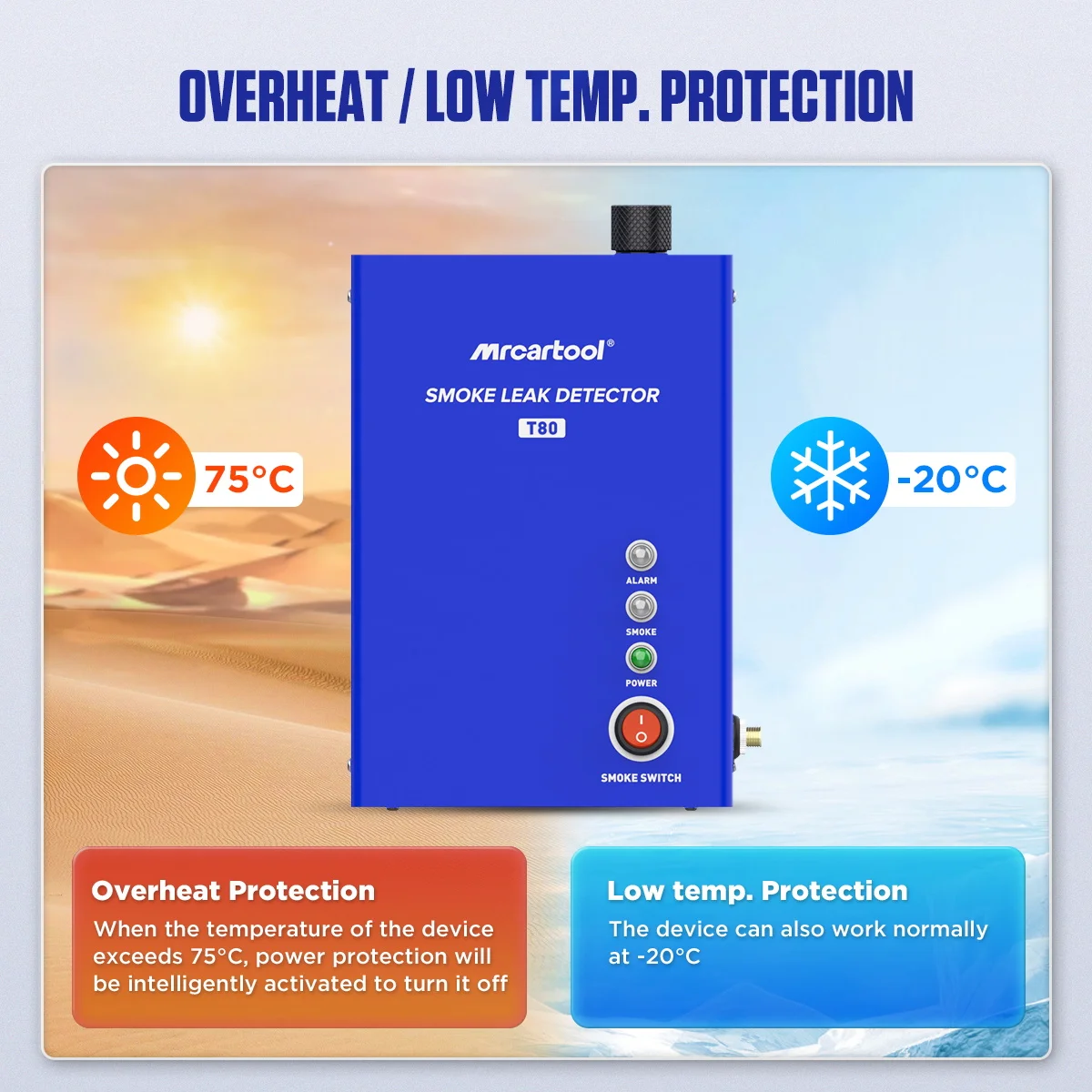

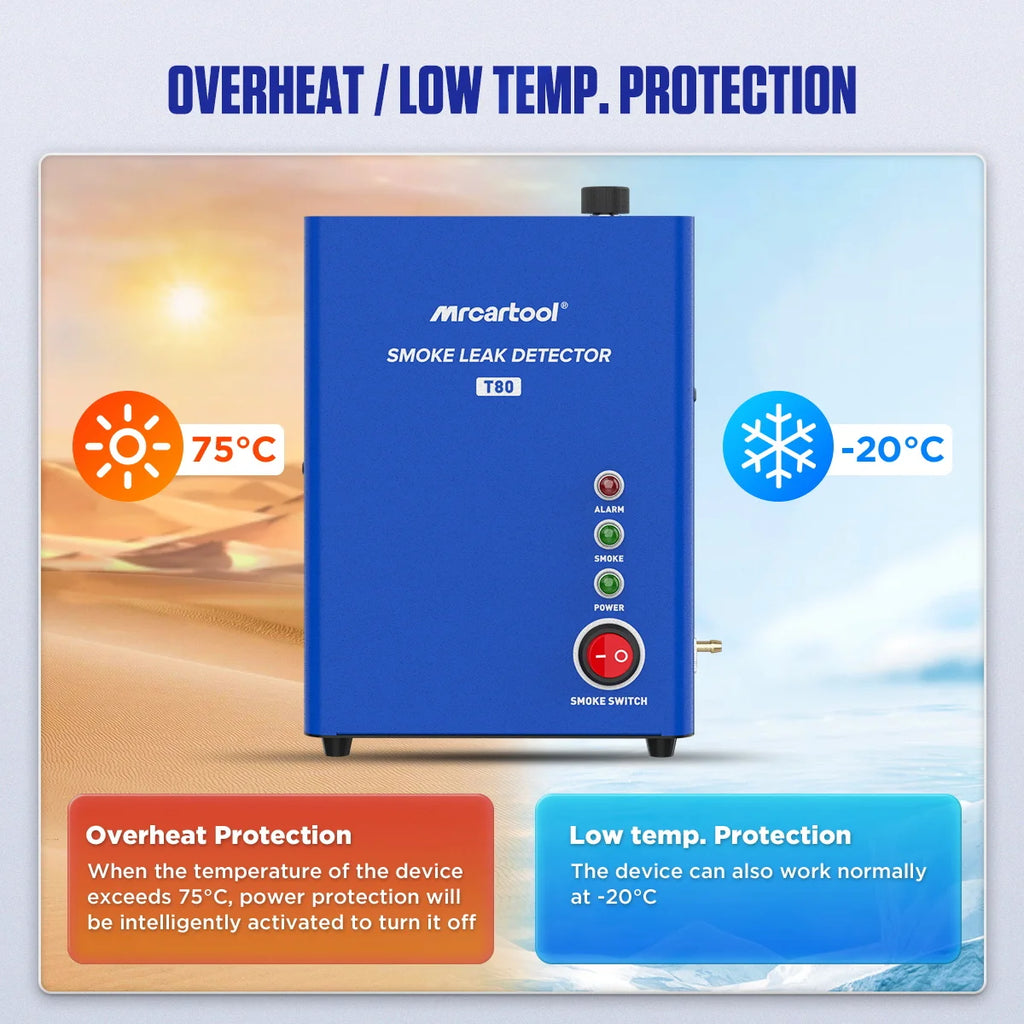

4.[Overheat & Anti-frost protection] The detector has smart protector. If it exceeds working limit,for e.g over 80℃. It will power off automatically.
5.[2 years warranty] For damage caused by non-human factors, we promise to resend parts for free within 2 years.
Caution：
1.When you use this MR CARTOOL T80 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5.During the process of leak detection, please keep away from smoke-sensitive parts.
6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 80 ℃, it will automatically turn off the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be careful to avoid burns.
9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

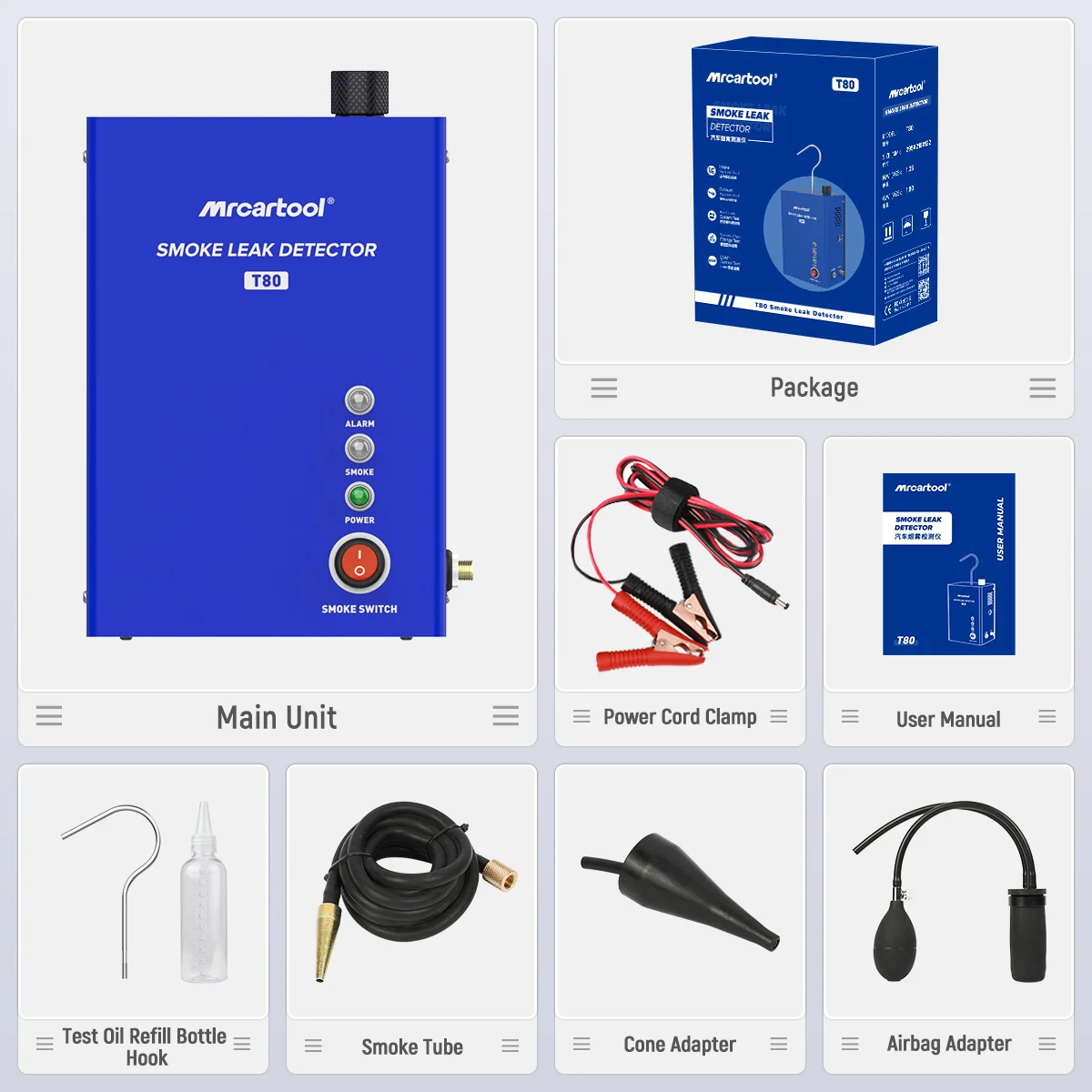

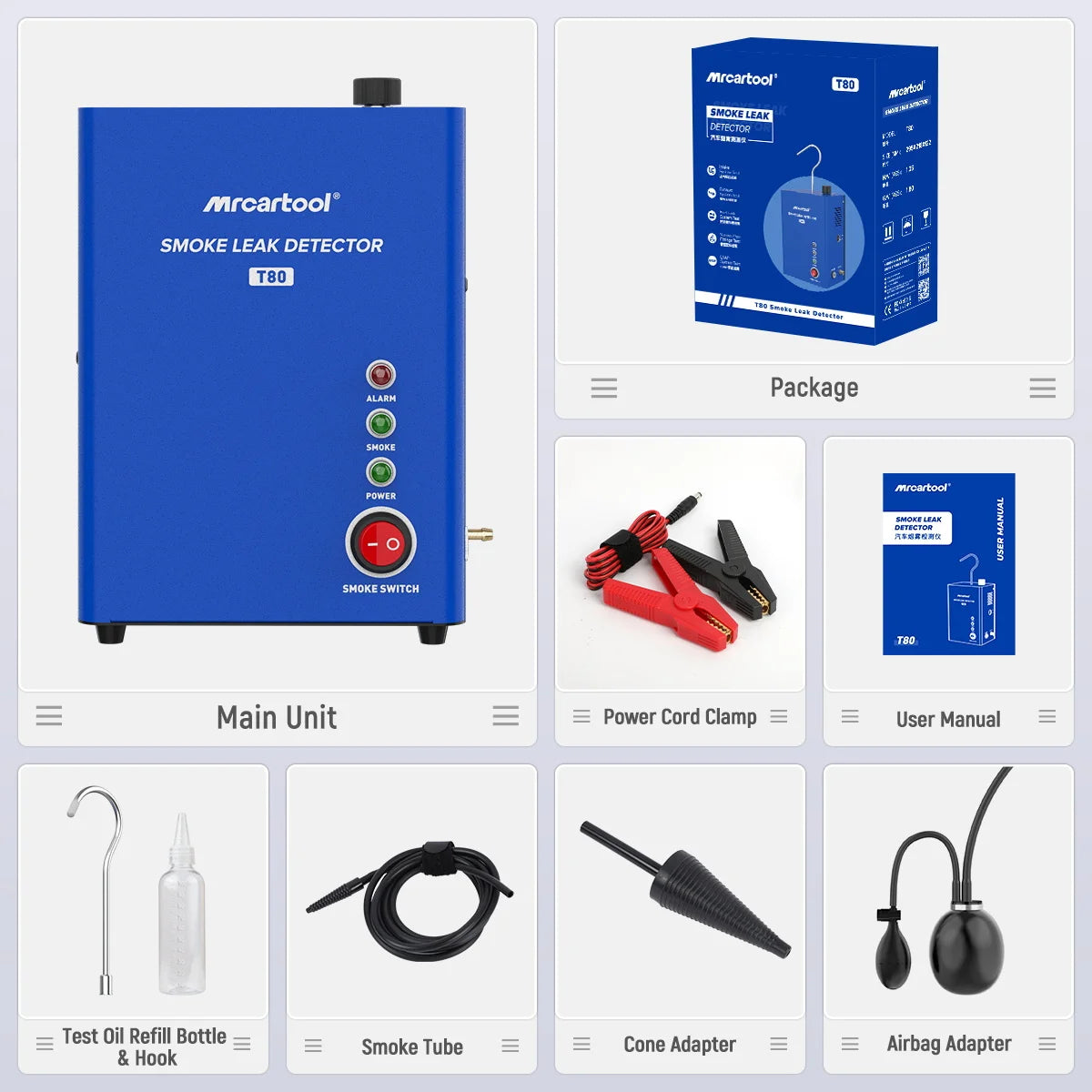

Packing List :
