SPECIFICATIONS

Front End Wheel Alignment Turn Plates

Wheel Alignment Turn Plates

The wheel alignment turn plates are one of the important components of the four-wheel alignment instrument, which can facilitate the measurement of steering angle and ensure adjustment accuracy as the necessary supporting product during the four-wheel alignment. Meanwhile, as technical equipment in four-wheel alignment, the wheel alignment turn plates have become a good assistant for improving the quality and efficiency of automotive maintenance due to their excellent measurement accuracy, wide applicability, sturdy and durable structure, and simple operation process.

Wheel Alignment Turn Plates

The wheel alignment turn plates are one of the important components of the four-wheel alignment instrument, which can facilitate the measurement of steering angle and ensure adjustment accuracy as the necessary supporting product during the four-wheel alignment. Meanwhile, as technical equipment in four-wheel alignment, the wheel alignment turn plates have become a good assistant for improving the quality and efficiency of automotive maintenance due to their excellent measurement accuracy, wide applicability, sturdy and durable structure, and simple operation process.

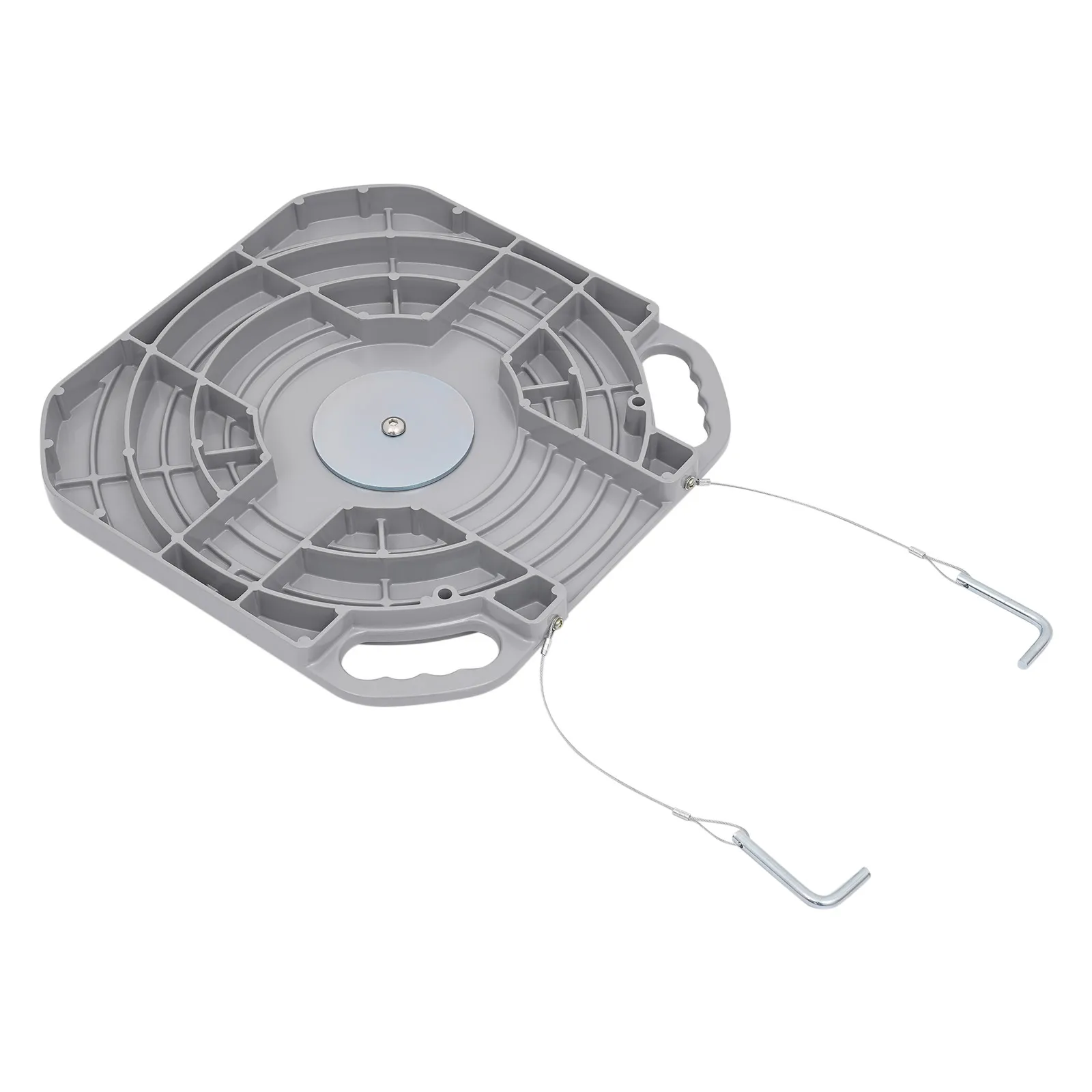

Latches: They are made of high-quality carbon steel and conveniently fix the turn plates.

Anti-slip Textures: They are on the surface of turn plates and can prevent the tires from slipping.

Clear Scales: They are beside the handles and can provide a detailed angle for adjustment without a computer display.

Application

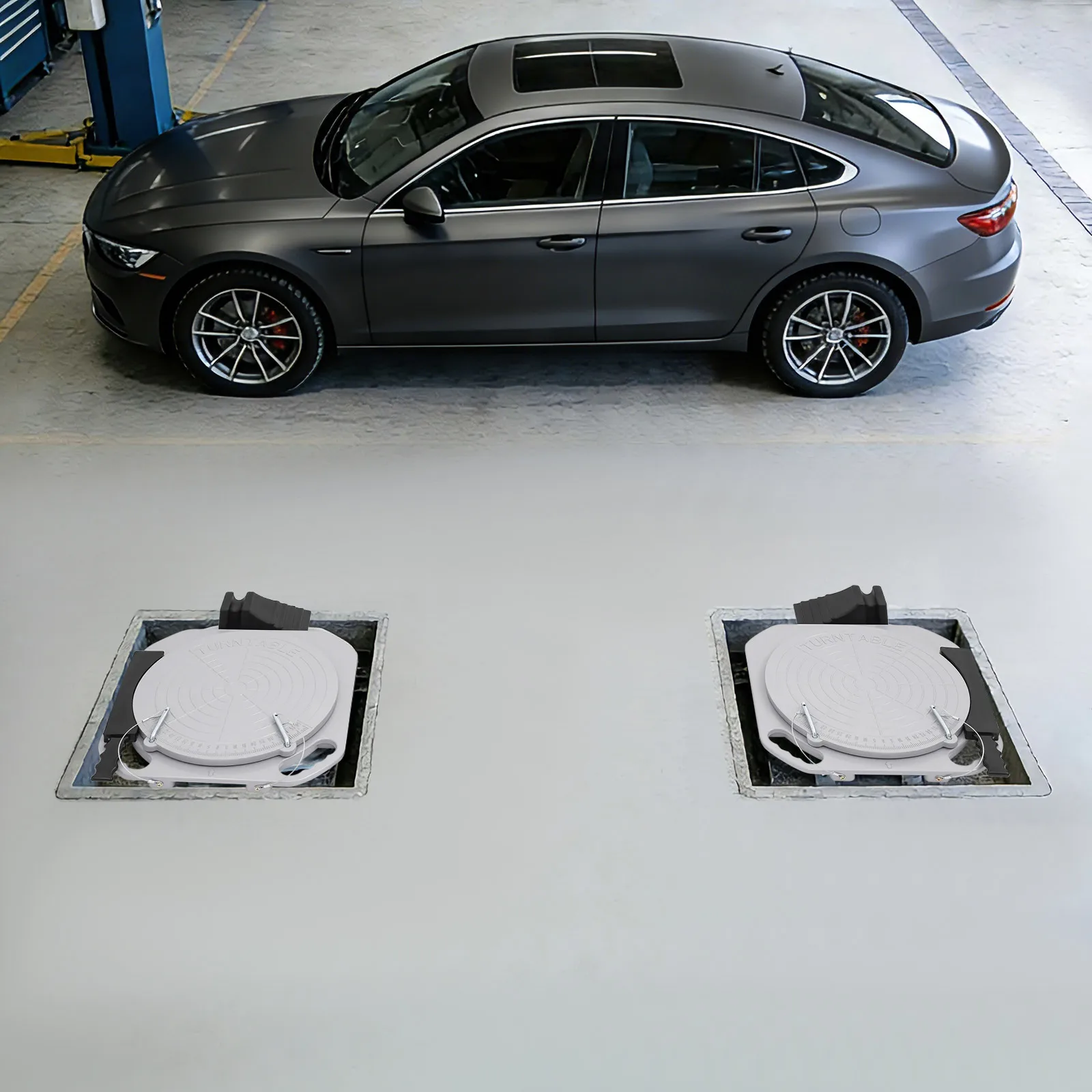

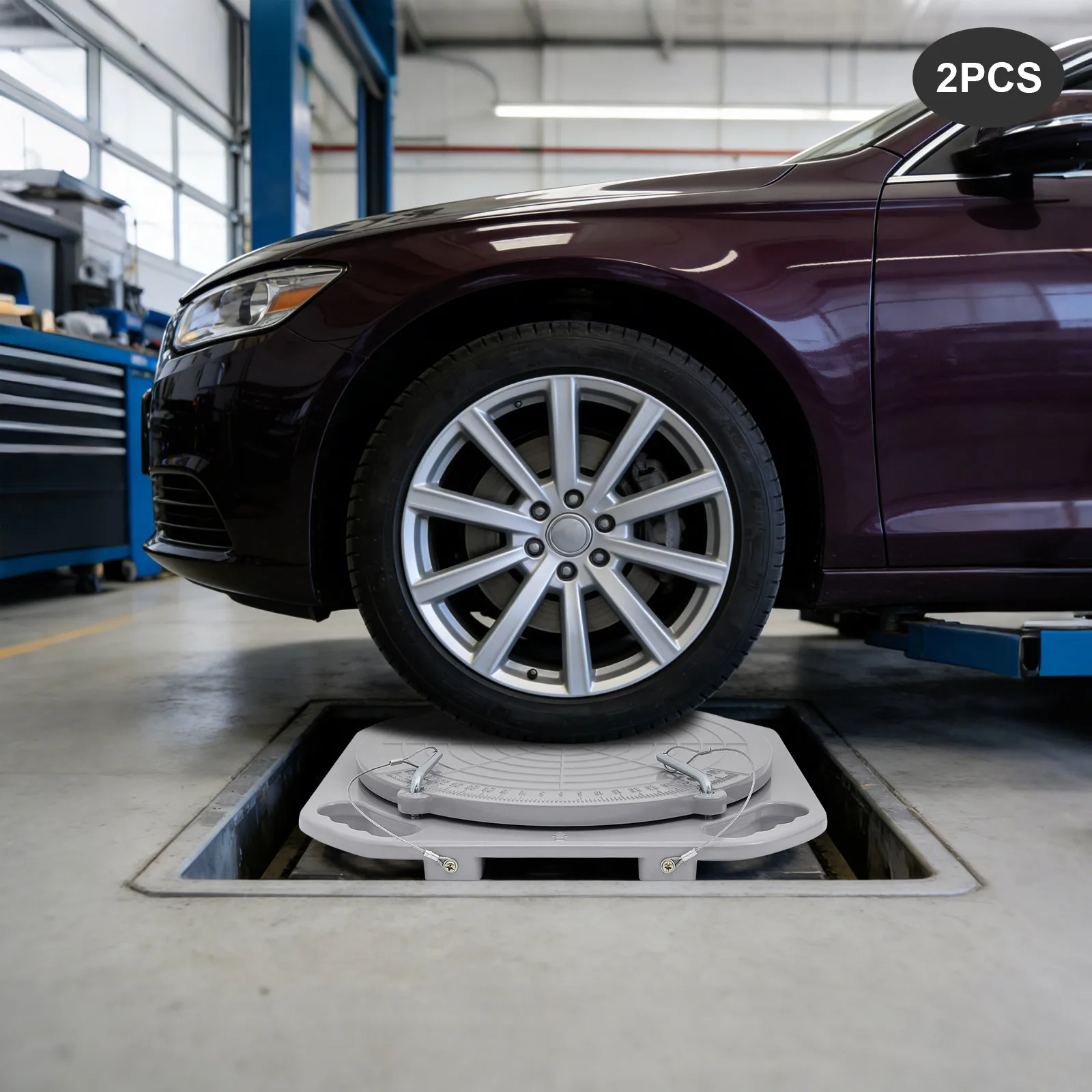

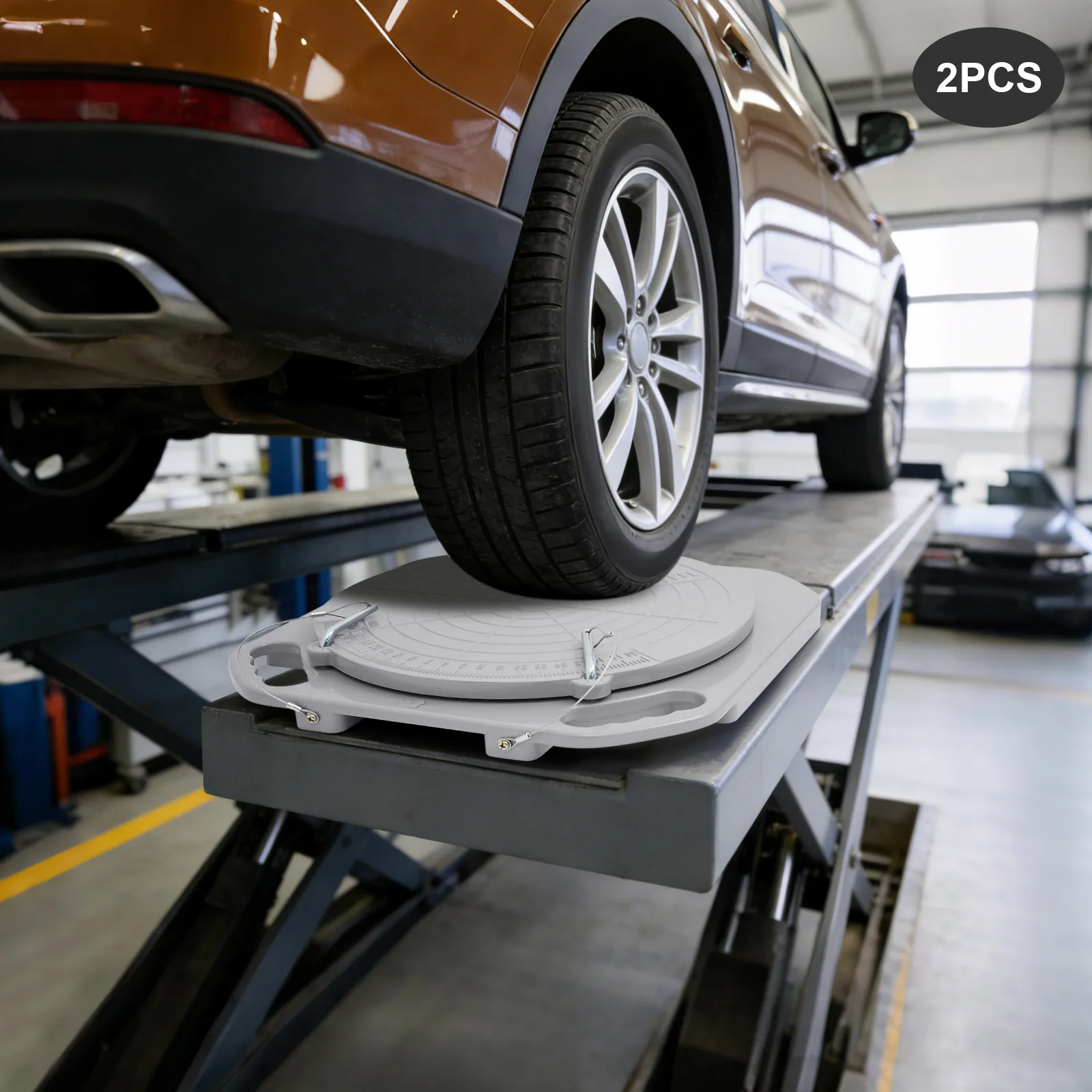

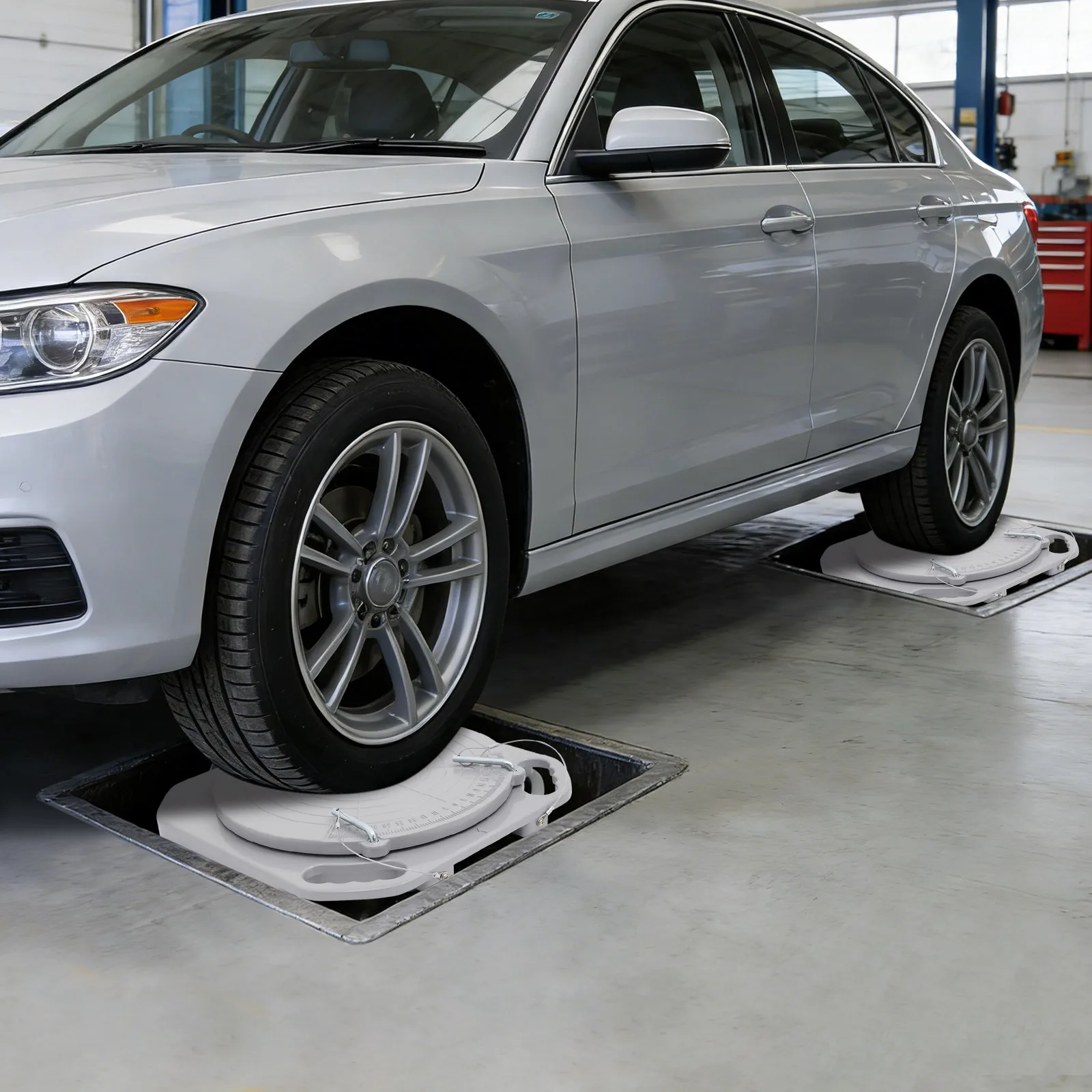

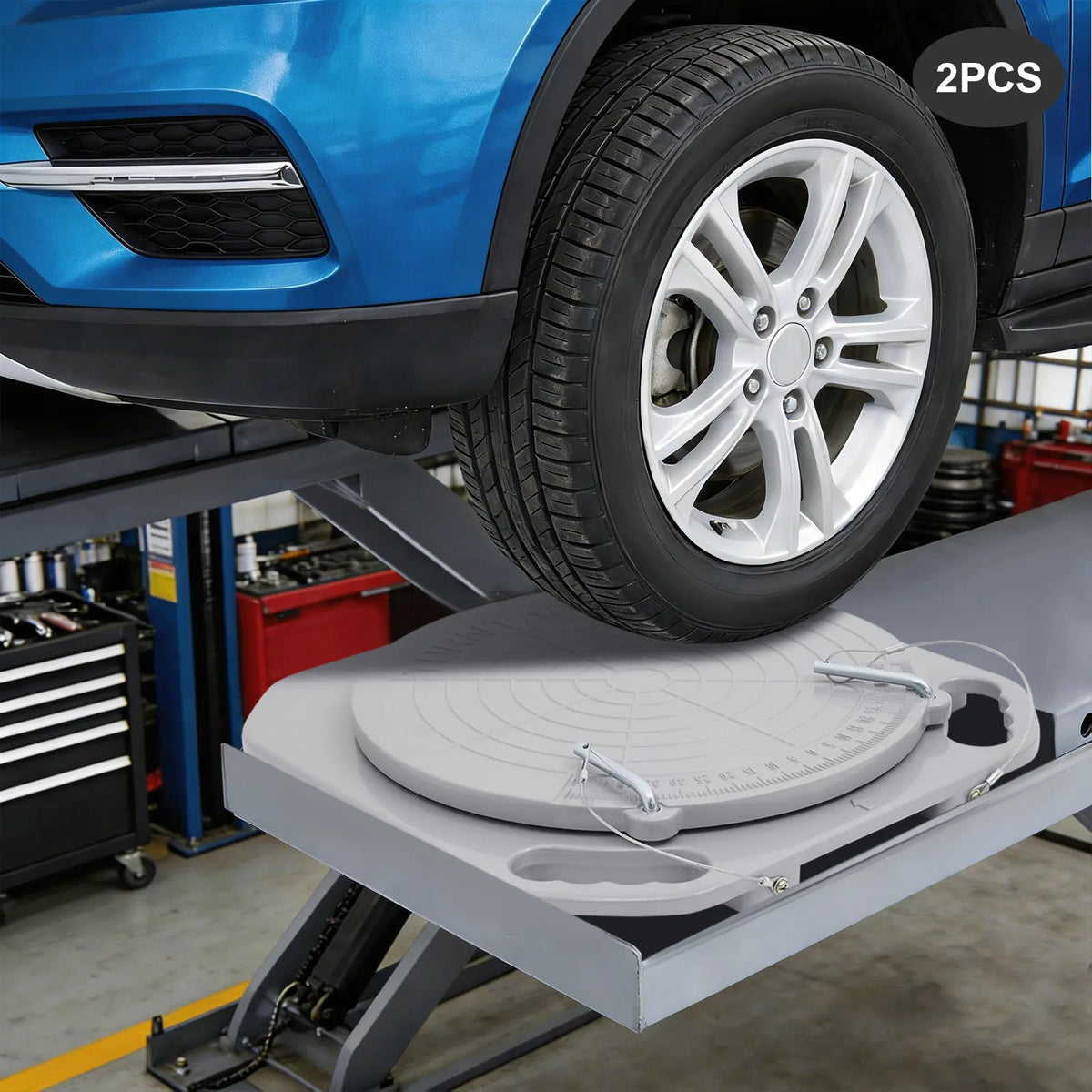

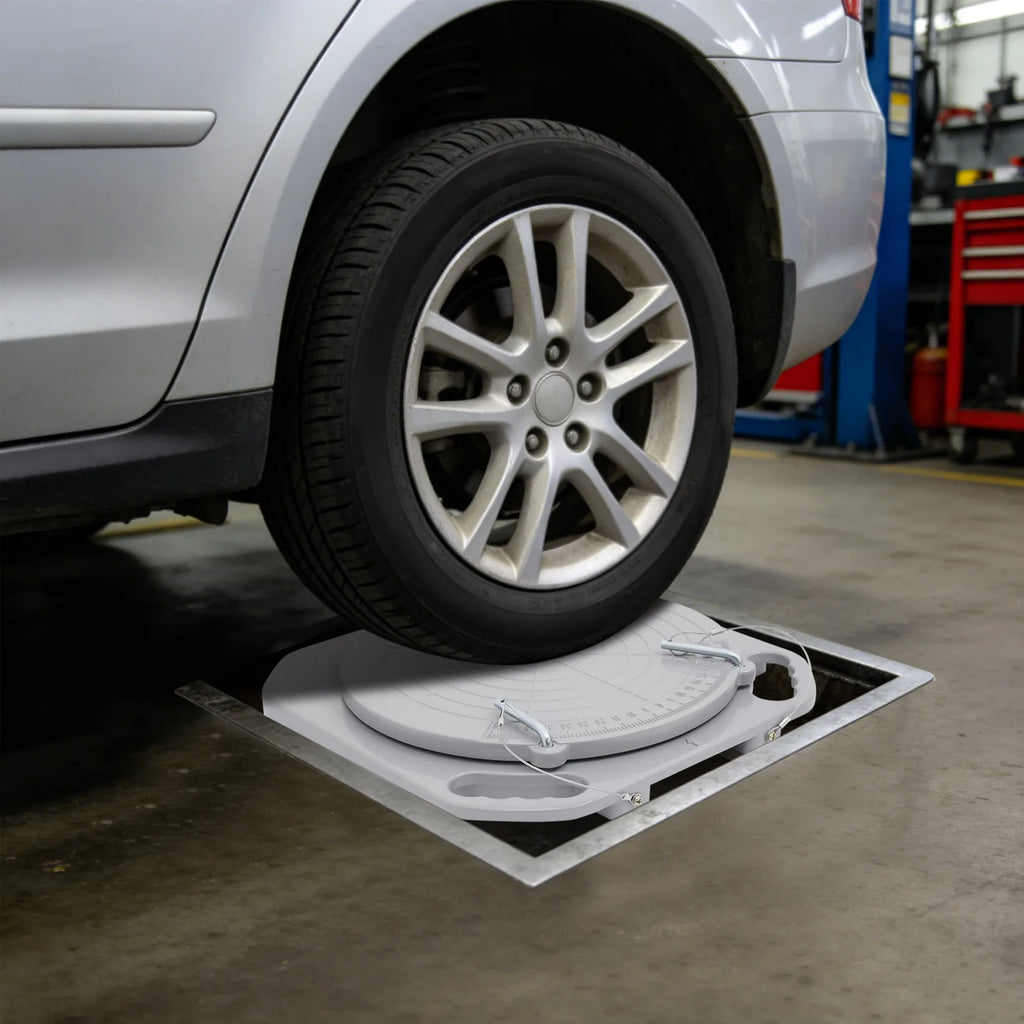

They can be applied to the automobile lift's groove and the groove size is 15.74 (length) * 1.93 (depth) inches. They can't be used if the groove size is smaller than the size. The following situations can also be used with simple retrofit: the groove length is 400+a mm, and you can put an iron square tube or wood batten (length: a mm; height: 50mm; width: equal to the lifting platform's width) in front of the wheel alignment turn plates; the groove depth is 50+b mm, and you can put an iron sheet (thickness: b mm; the other size is the same as the groove's size) under the wheel alignment turn plates.

Specifications

Color: Grey

Material: Magnesium-aluminum Alloy, Rubber, Nylon, Carbon Steel

Process: Die-casting Process

Loading-bearing Capacity (Single One): Greater Than 3T/6613 lbs

Suitable Groove's Size(Length*Depth): 400*50mm/15.74*1.96inch

Gross Weight: 15.8kg/34.83lbs

Single Net Weight: 4.3kg/9.48lbs

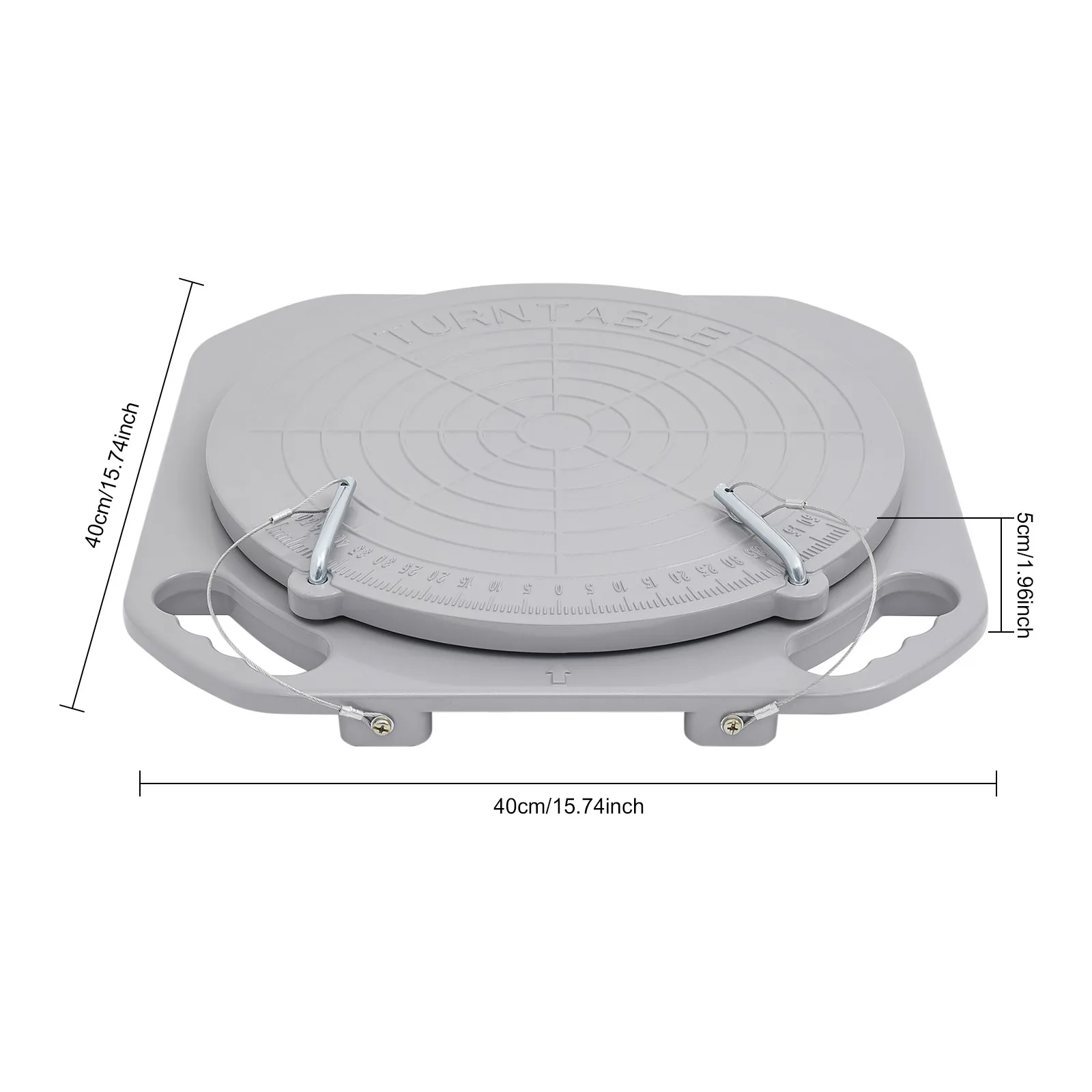

Single Product Size: 40*40*5cm/15.74*15.74*1.96inch

Package Size: 48*41.5*12cm/18.89*16.33*4.72inch

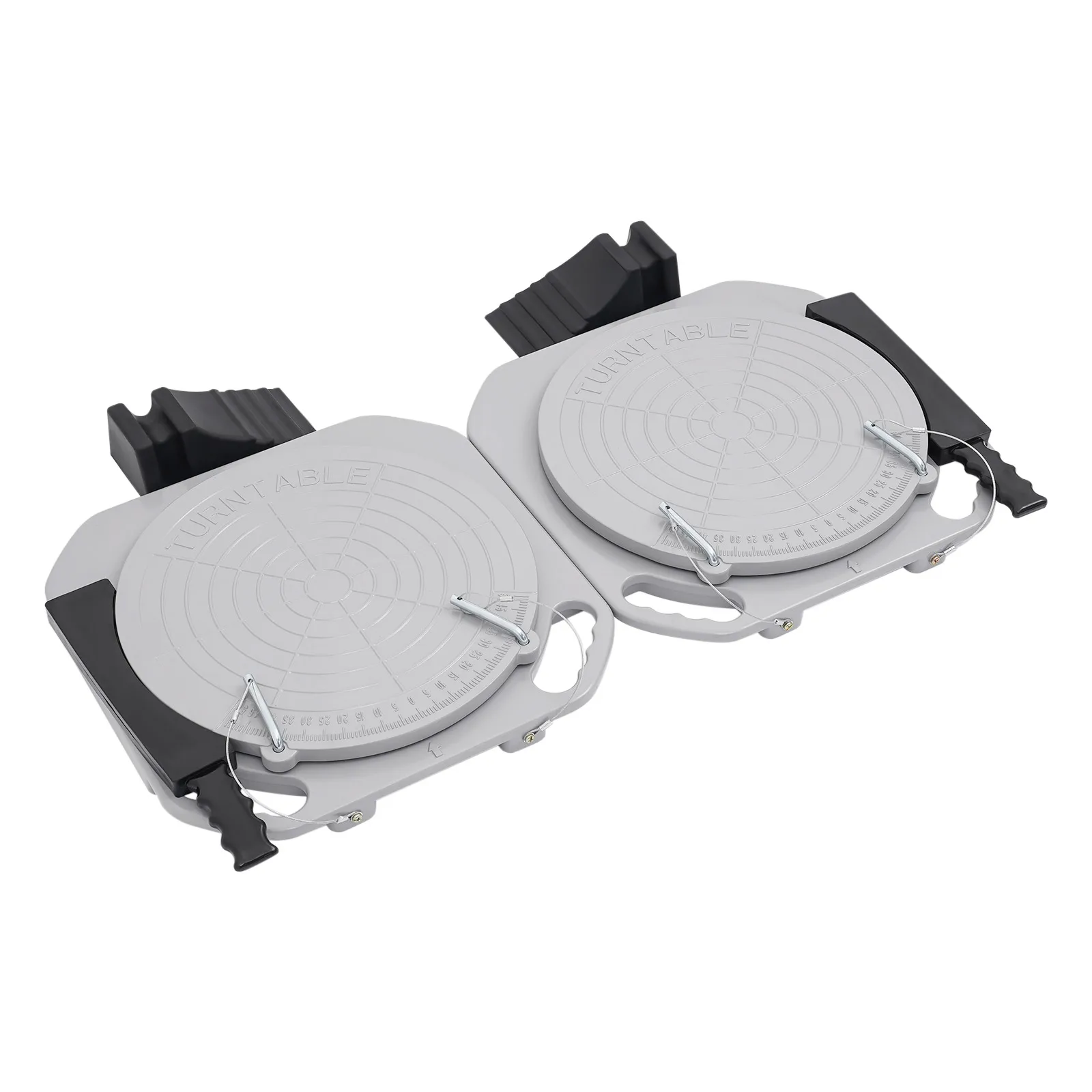

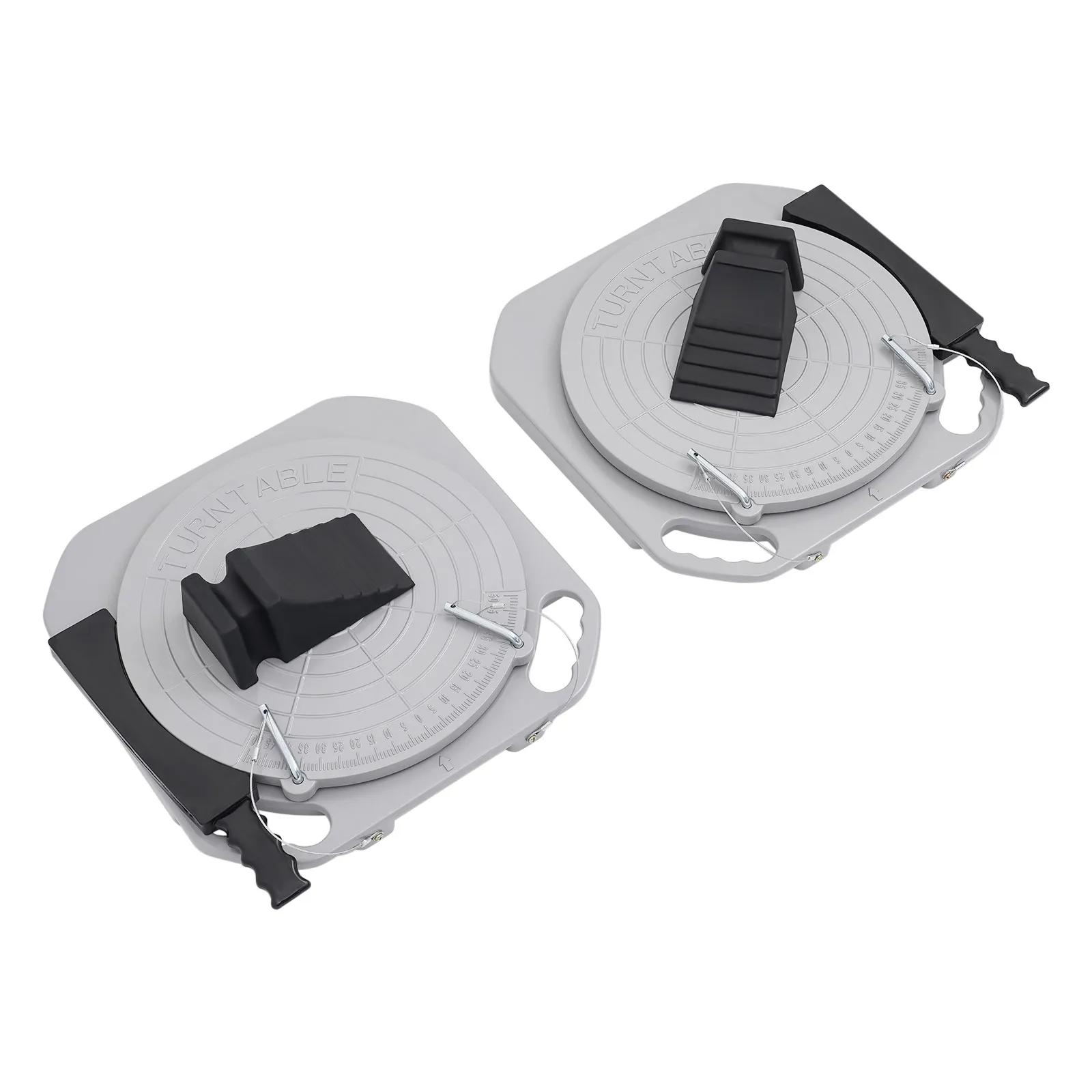

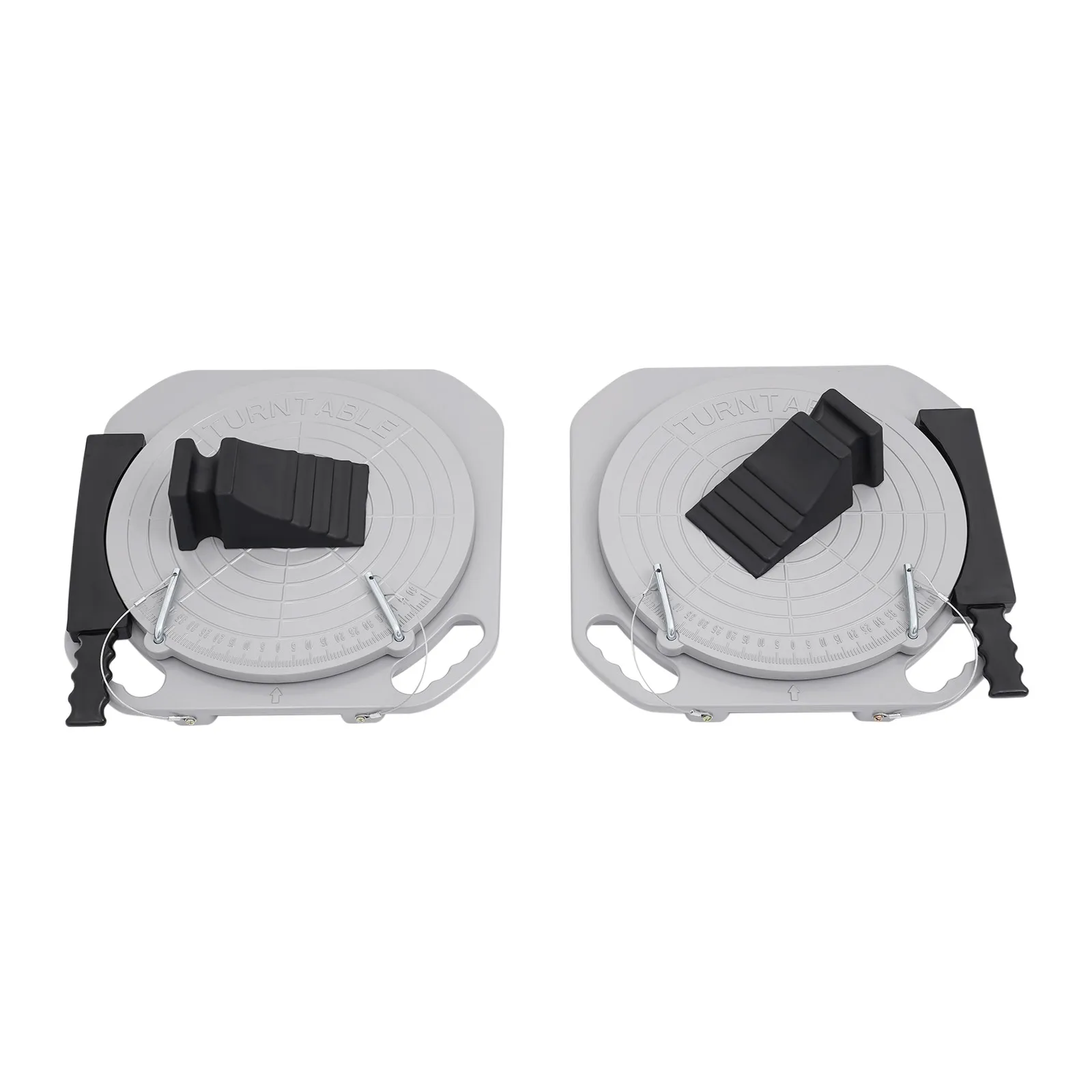

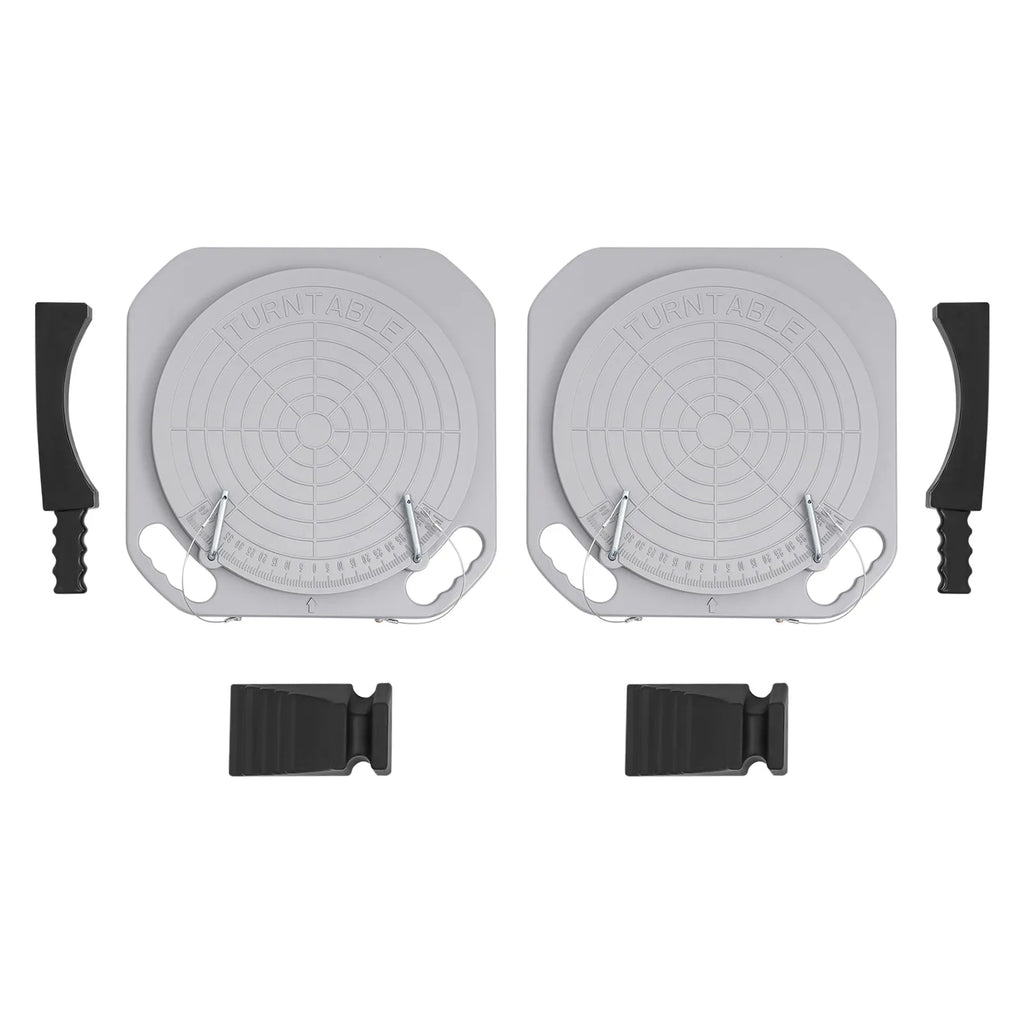

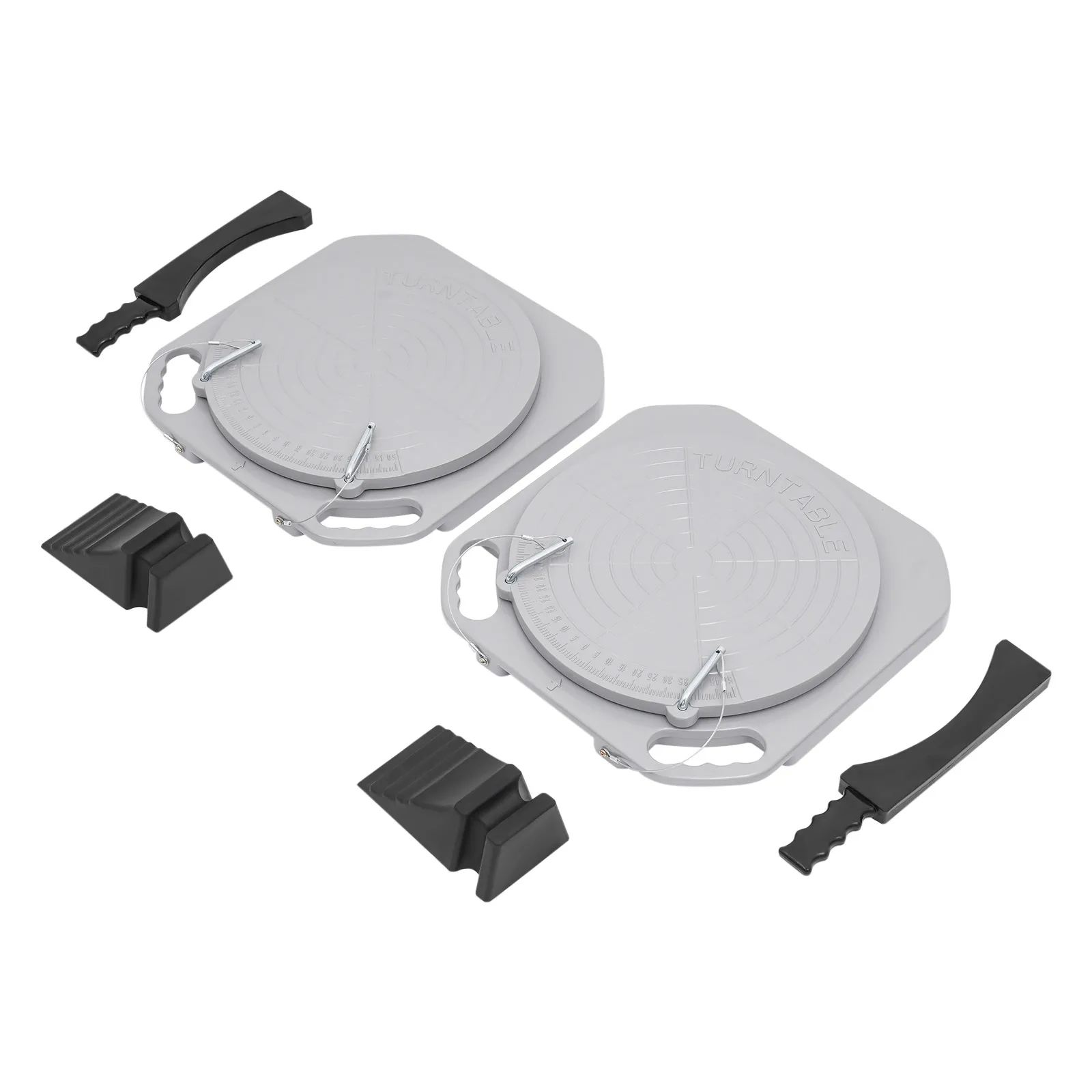

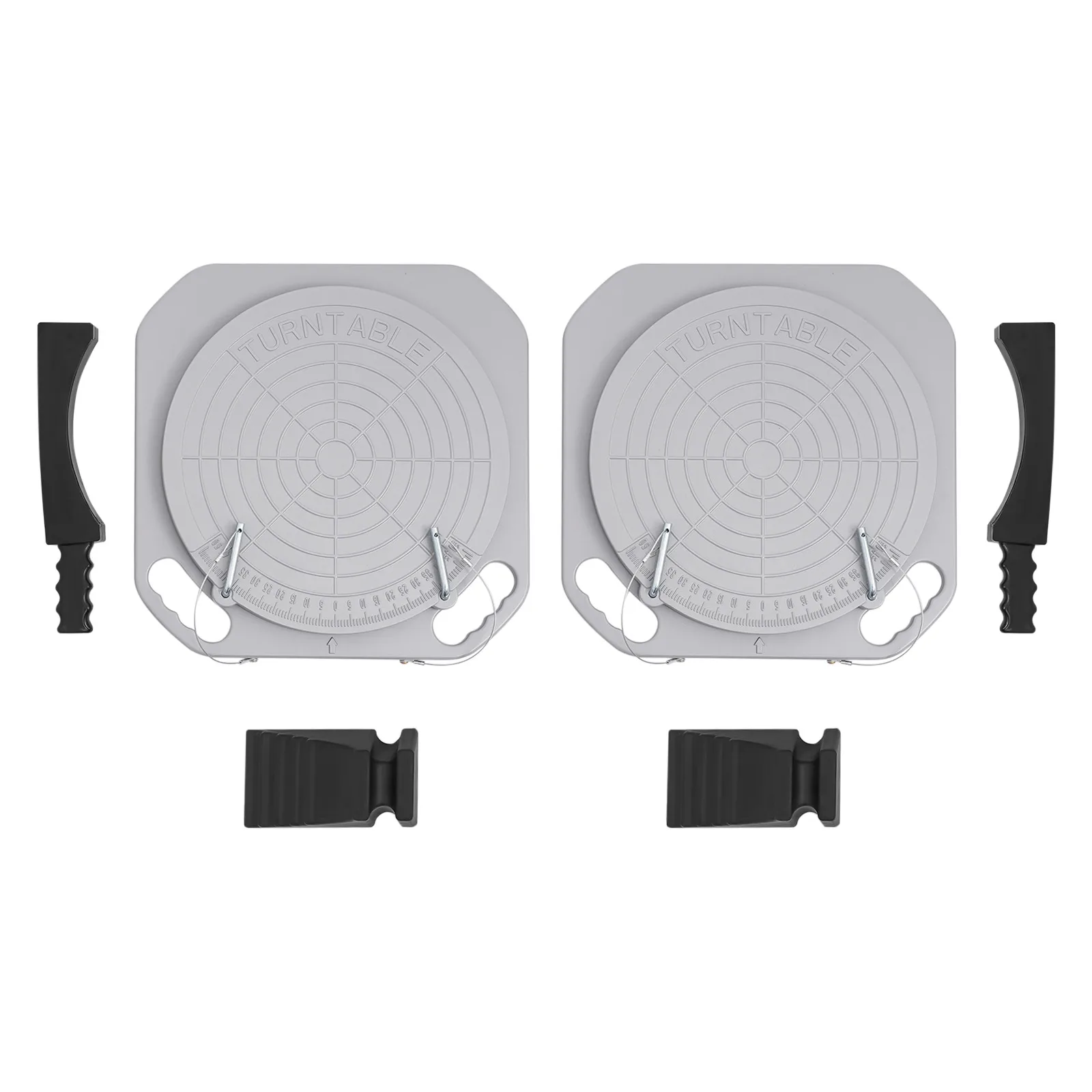

Package Included

2*Wheel Alignment Turn Plates

2*Transition Blocks

2*Thrust Pads

2 Pairs*Latches

Notes

Please try to avoid small particles entering the inner disk and they can't be washed with water. The compressed air is available for cleaning.

Please allow the slight color difference caused by the shooting light and the 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
