SPECIFICATIONS

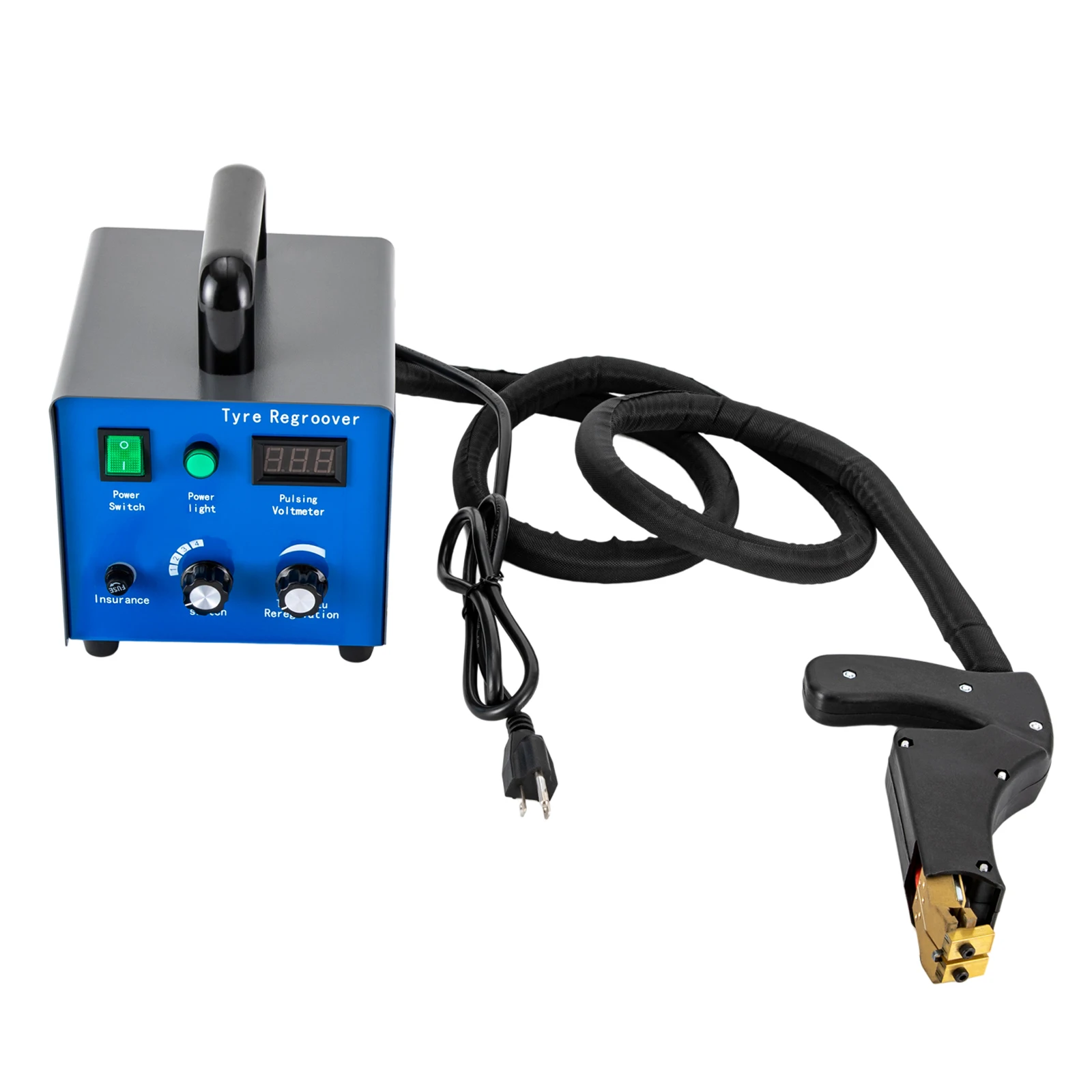

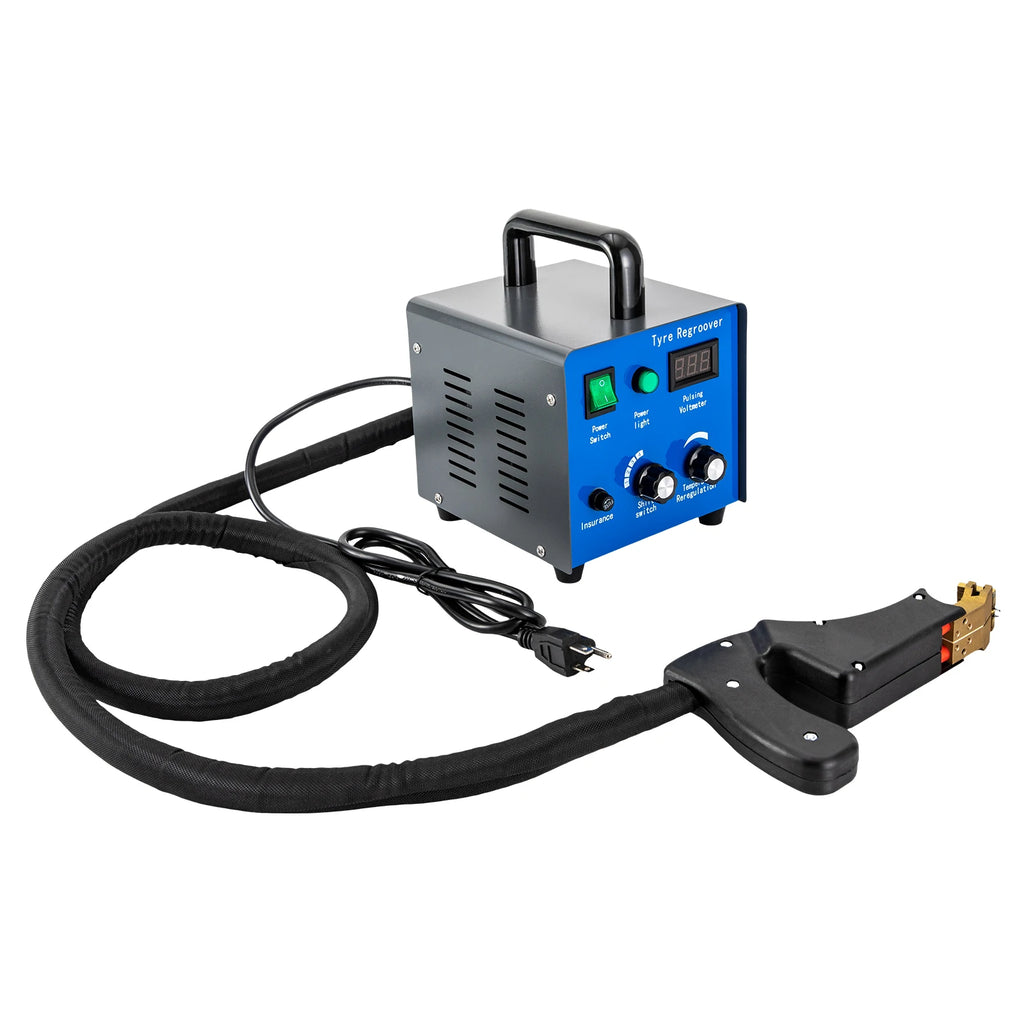

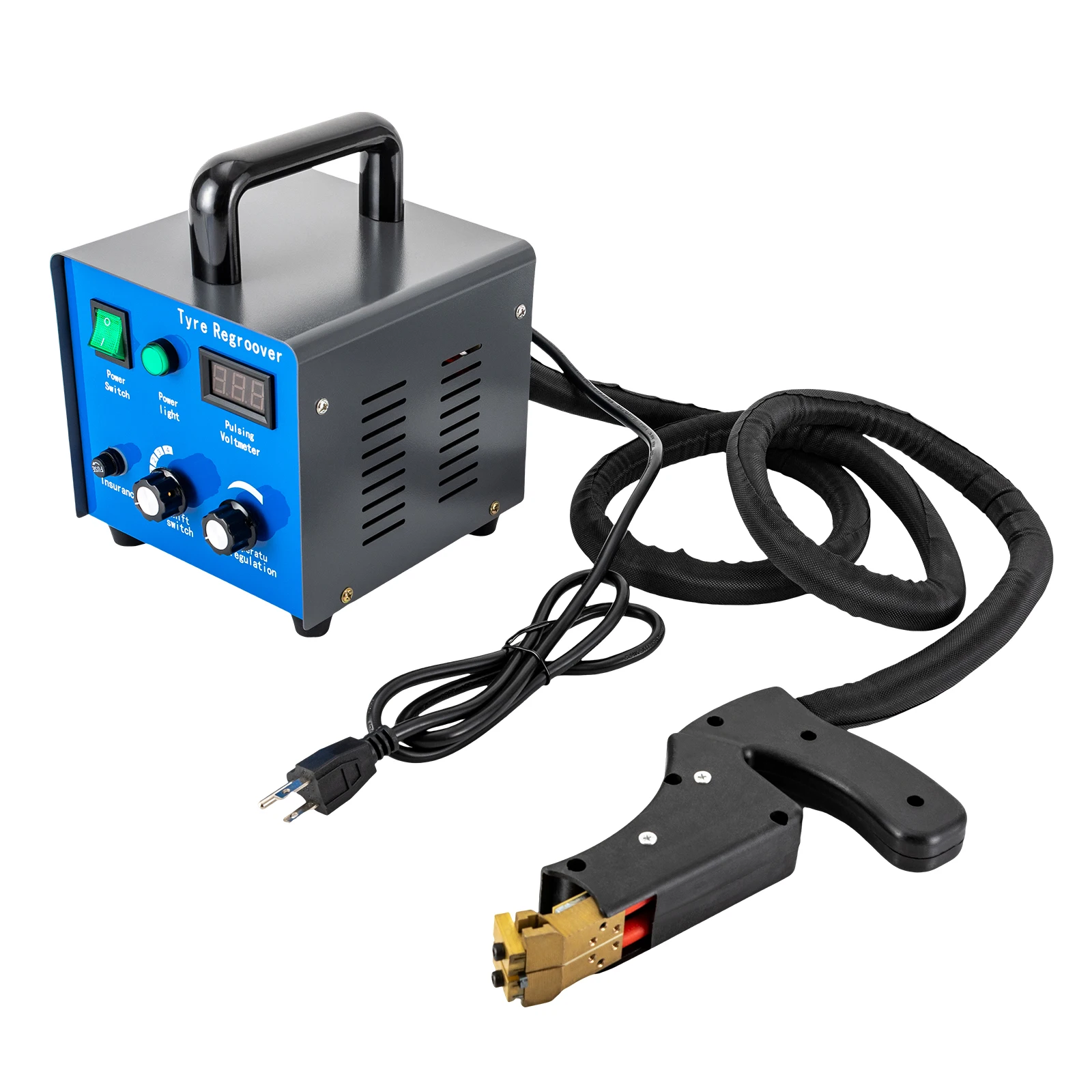

Tire Groover Machine

Tire Groover Machine

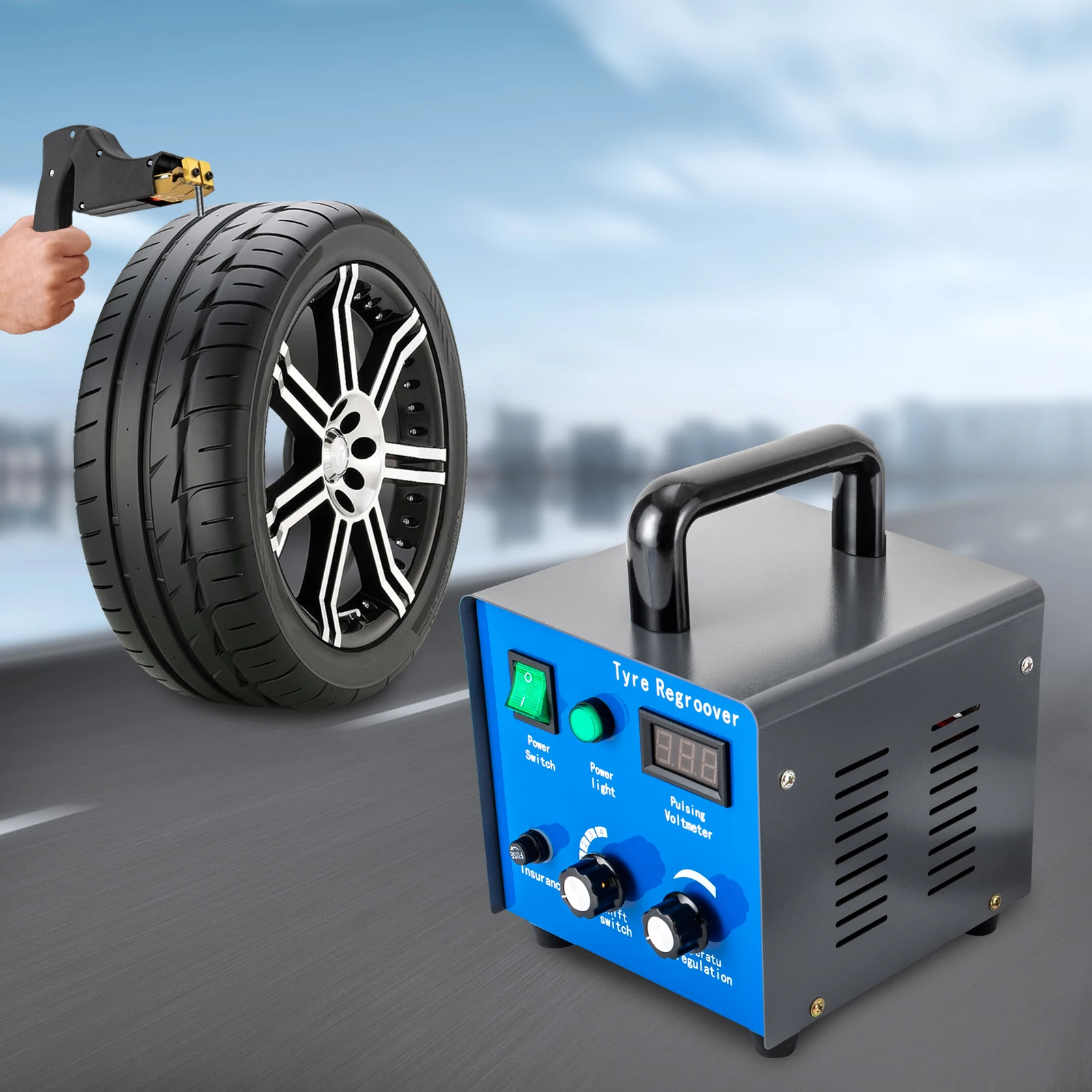

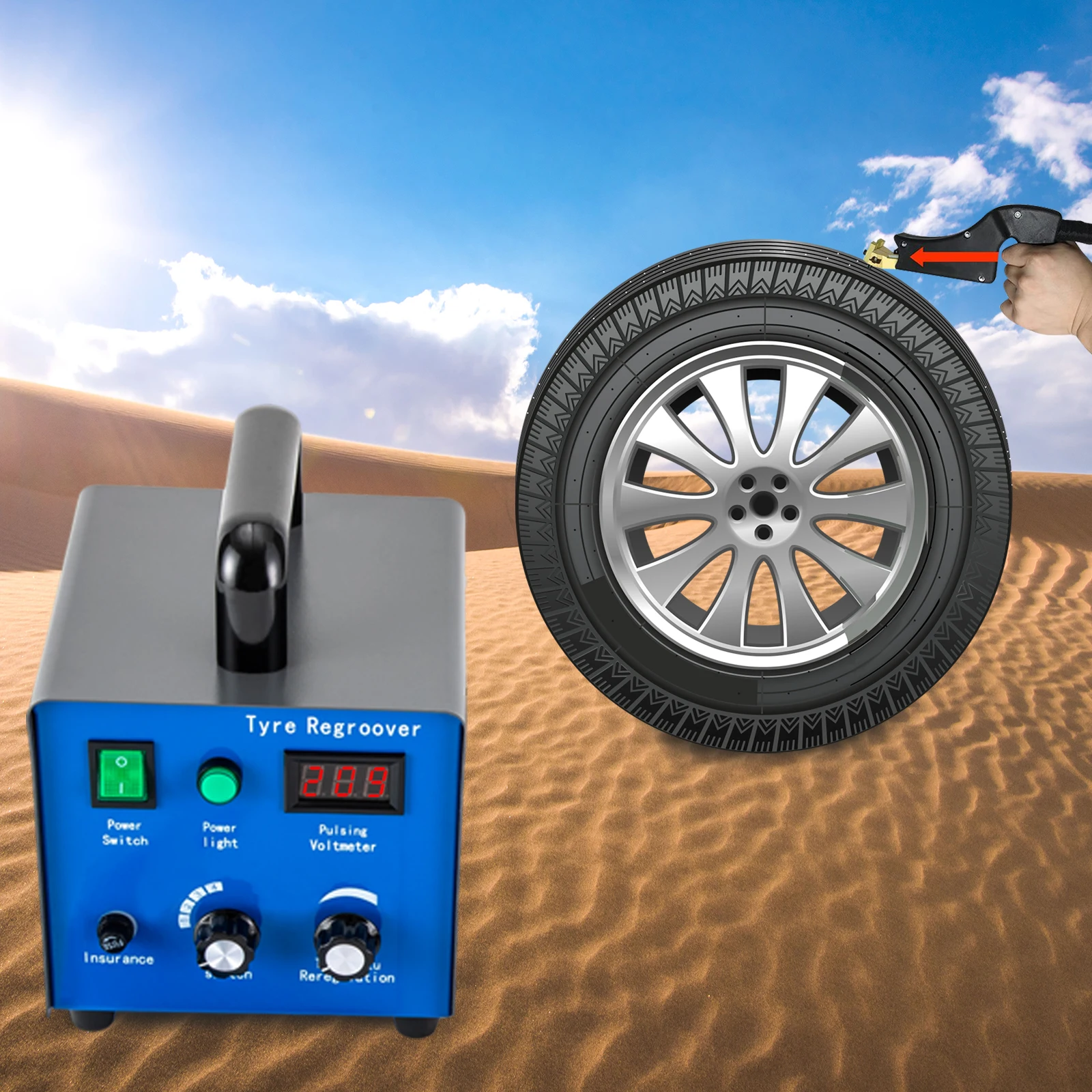

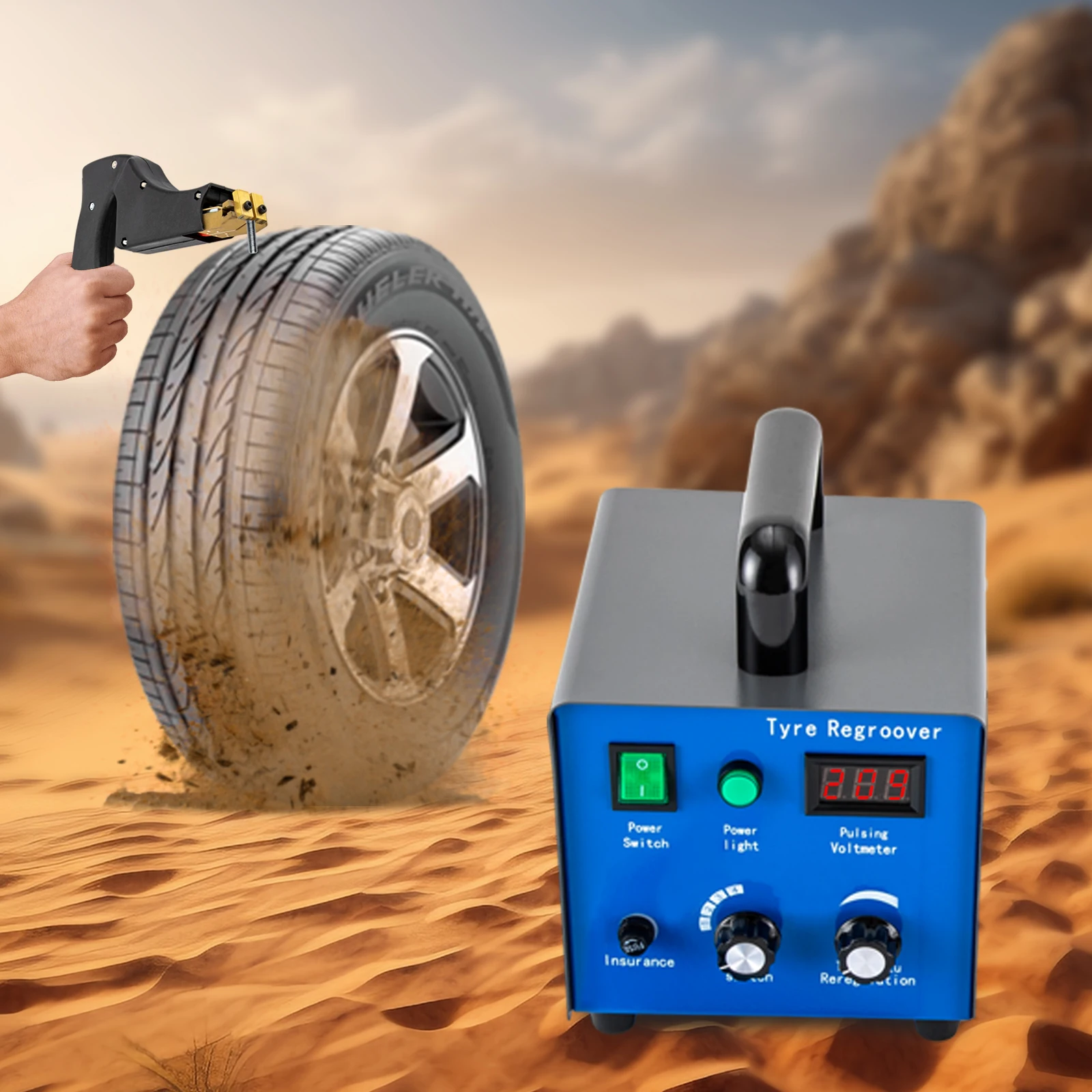

It is a special machine for processing tire surfaces, which can engrave all kinds of U-shaped patterns, V-shaped patterns, linear patterns, etc. to enhance the friction between the tires and the ground to make the vehicle safer to drive. With high precision, high efficiency, high flexibility, and easy operation and maintenance, this machine is widely used in automobile manufacturing, modification, and car shows.

Tire Groover Machine

It is a special machine for processing tire surfaces, which can engrave all kinds of U-shaped patterns, V-shaped patterns, linear patterns, etc. to enhance the friction between the tires and the ground to make the vehicle safer to drive. With high precision, high efficiency, high flexibility, and easy operation and maintenance, this machine is widely used in automobile manufacturing, modification, and car shows.

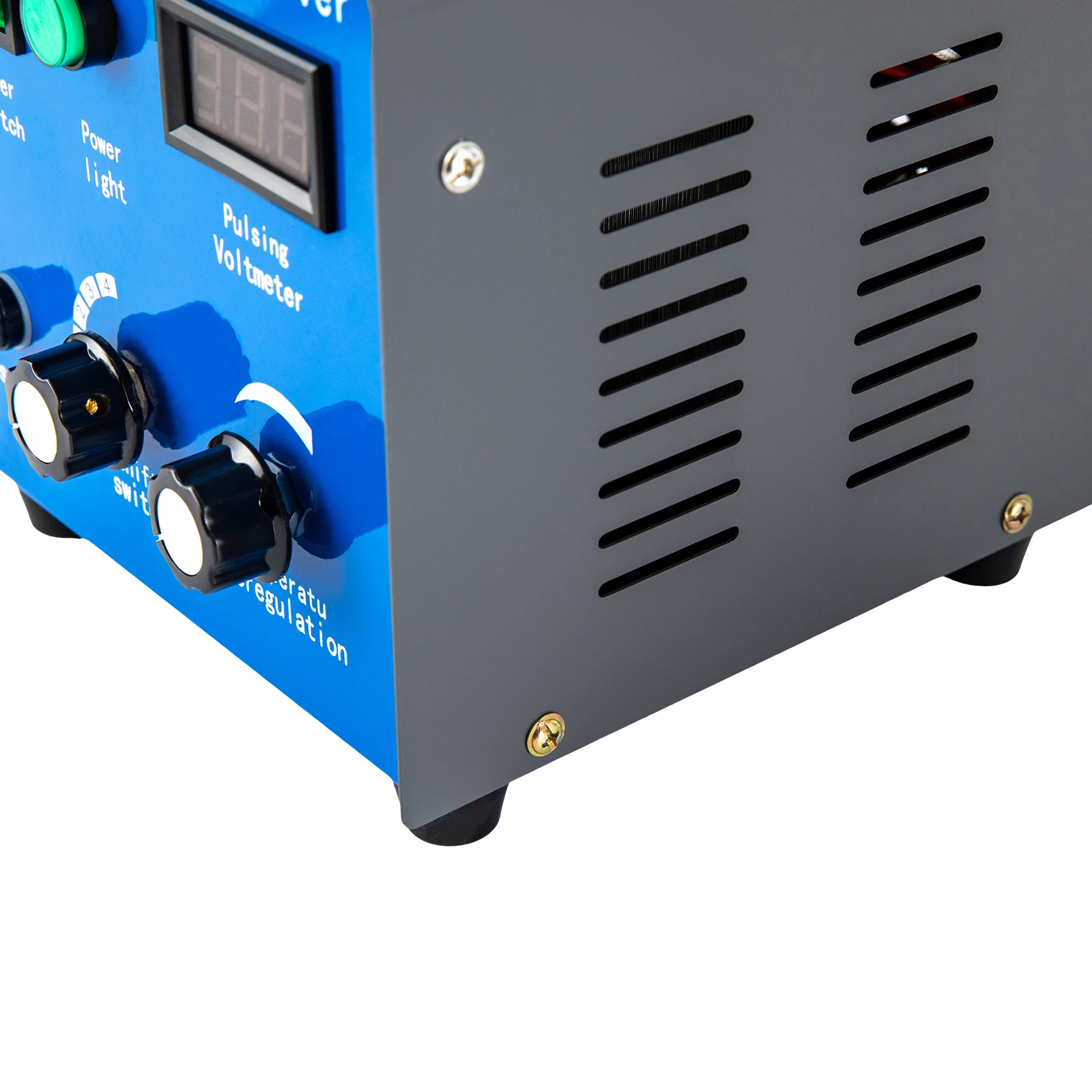

Anti-slip Feet: The anti-slip feet under the body to ensure the whole working process is carried out smoothly and safely, avoiding the machine from slipping during operation.

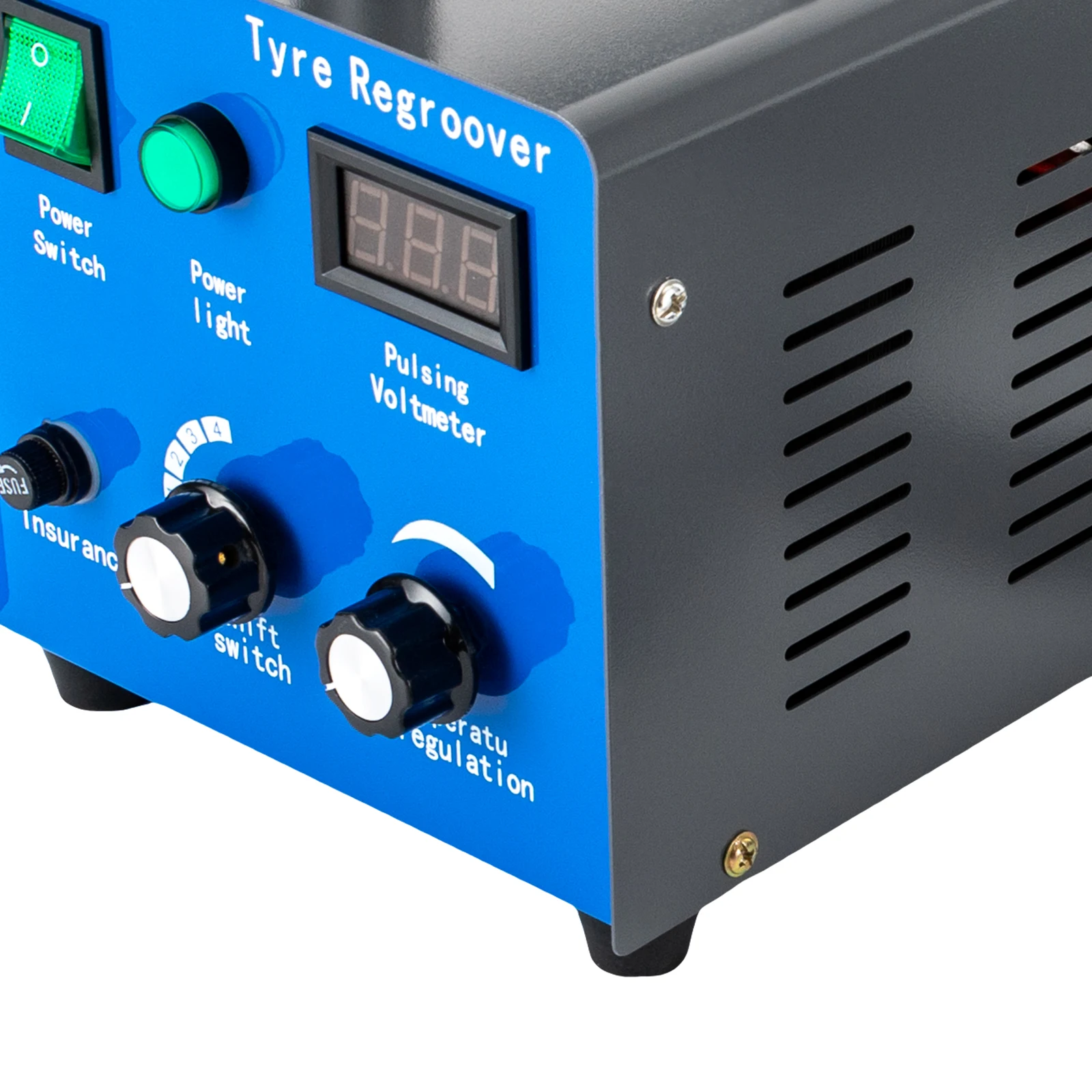

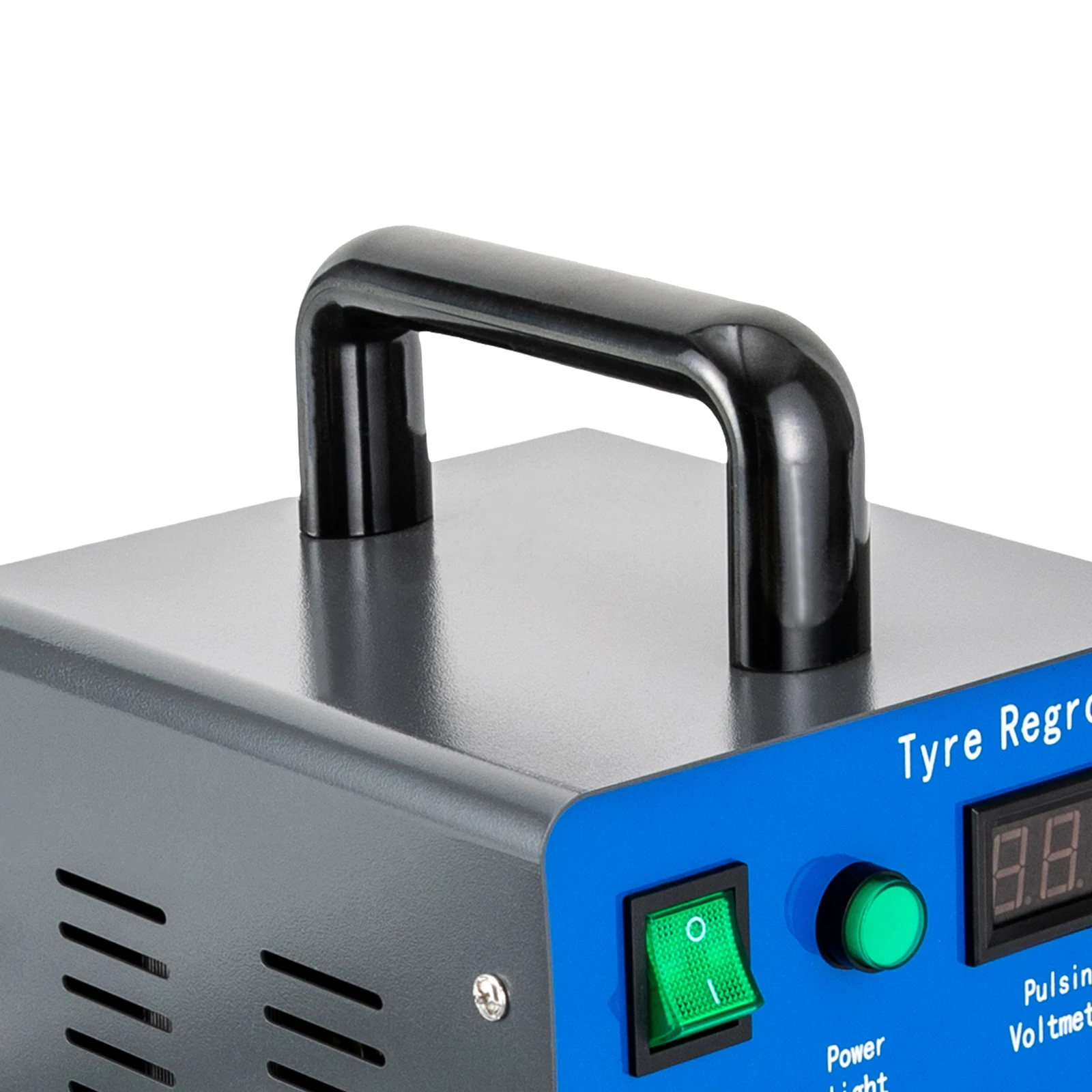

Indicate Light: It can show the current working status of the machine and help you better grasp the operation of the machine.

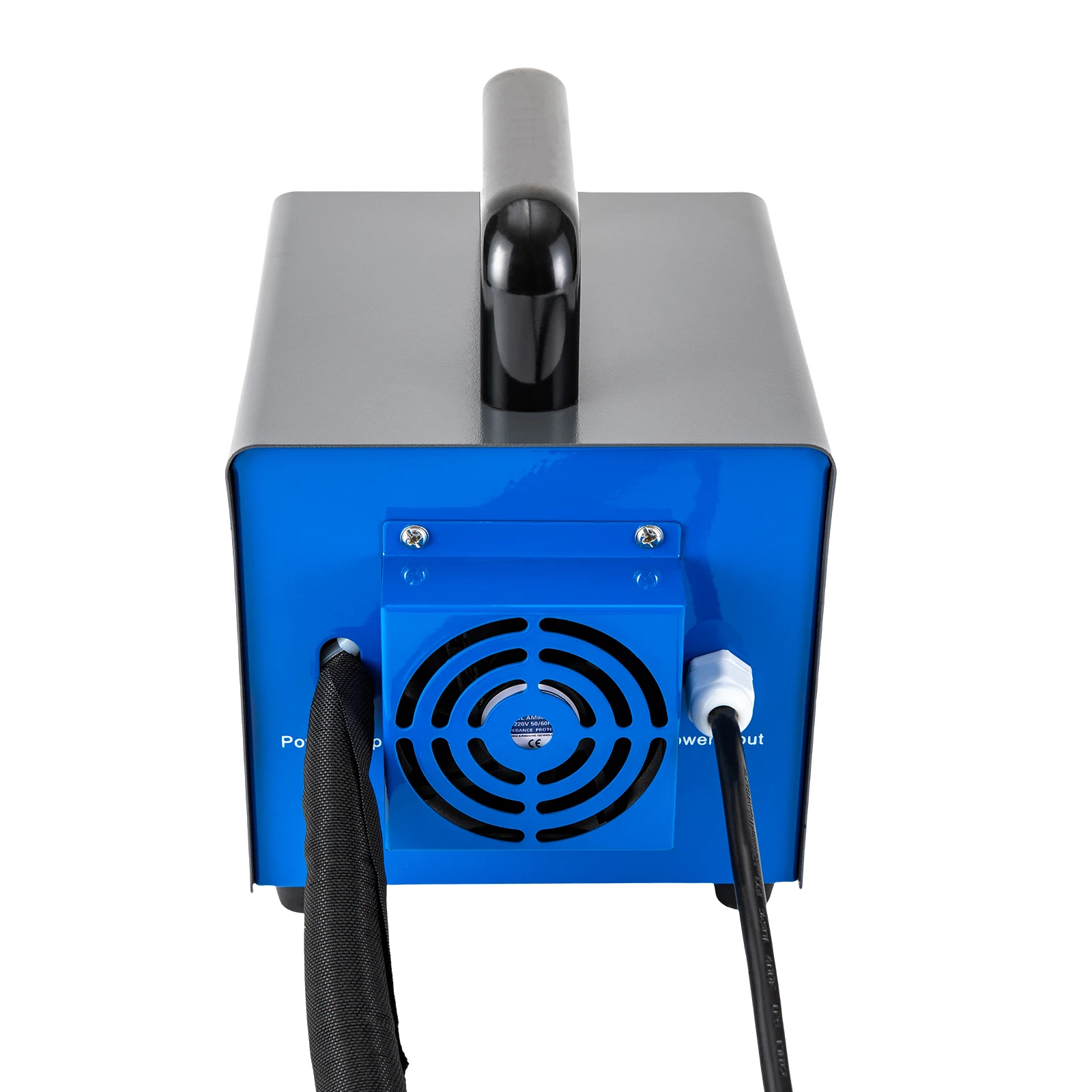

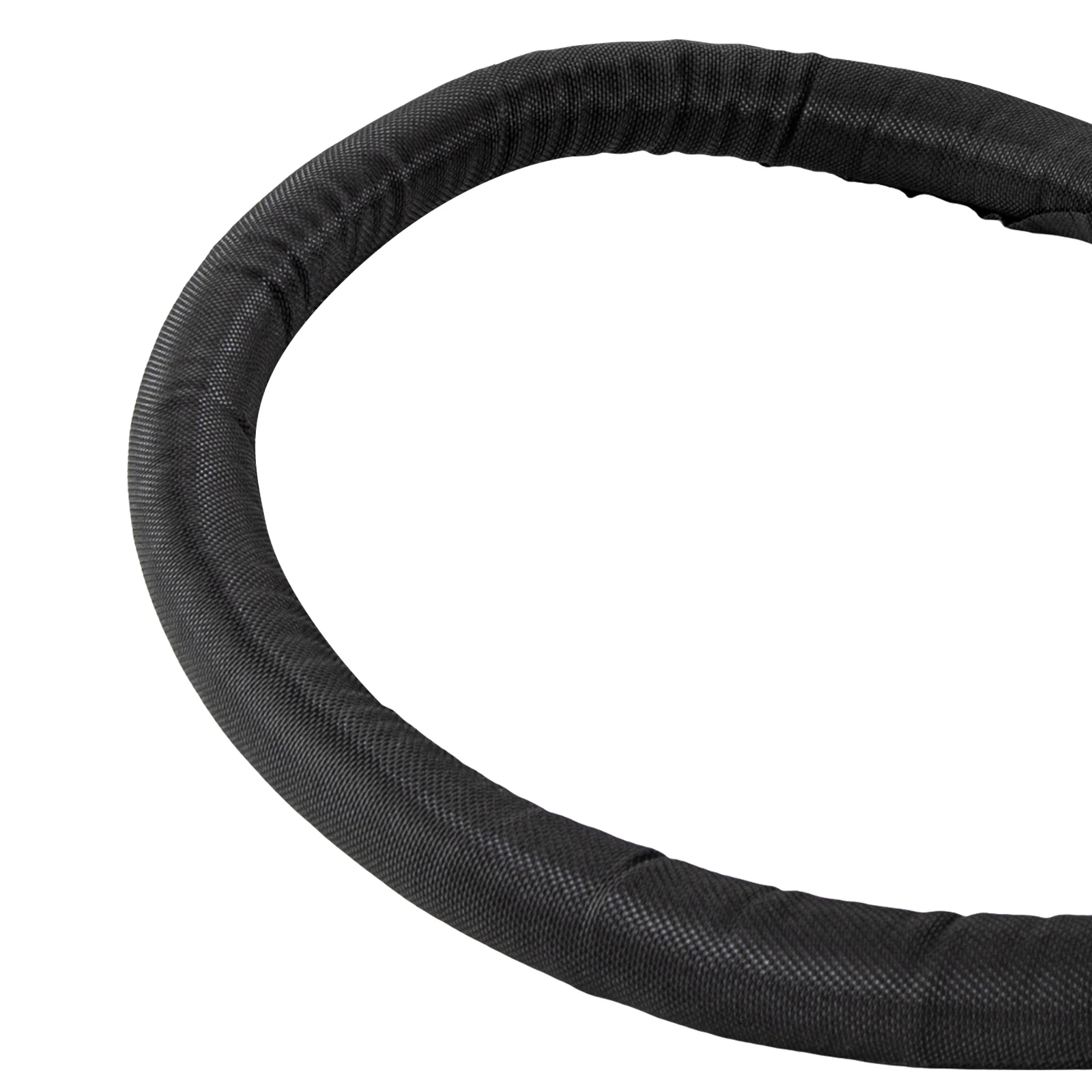

Long Wires: It comes with a 4.92 ft. power cord and 5.91 lead wire, making it easier for you to connect power and work more flexibly.

Application

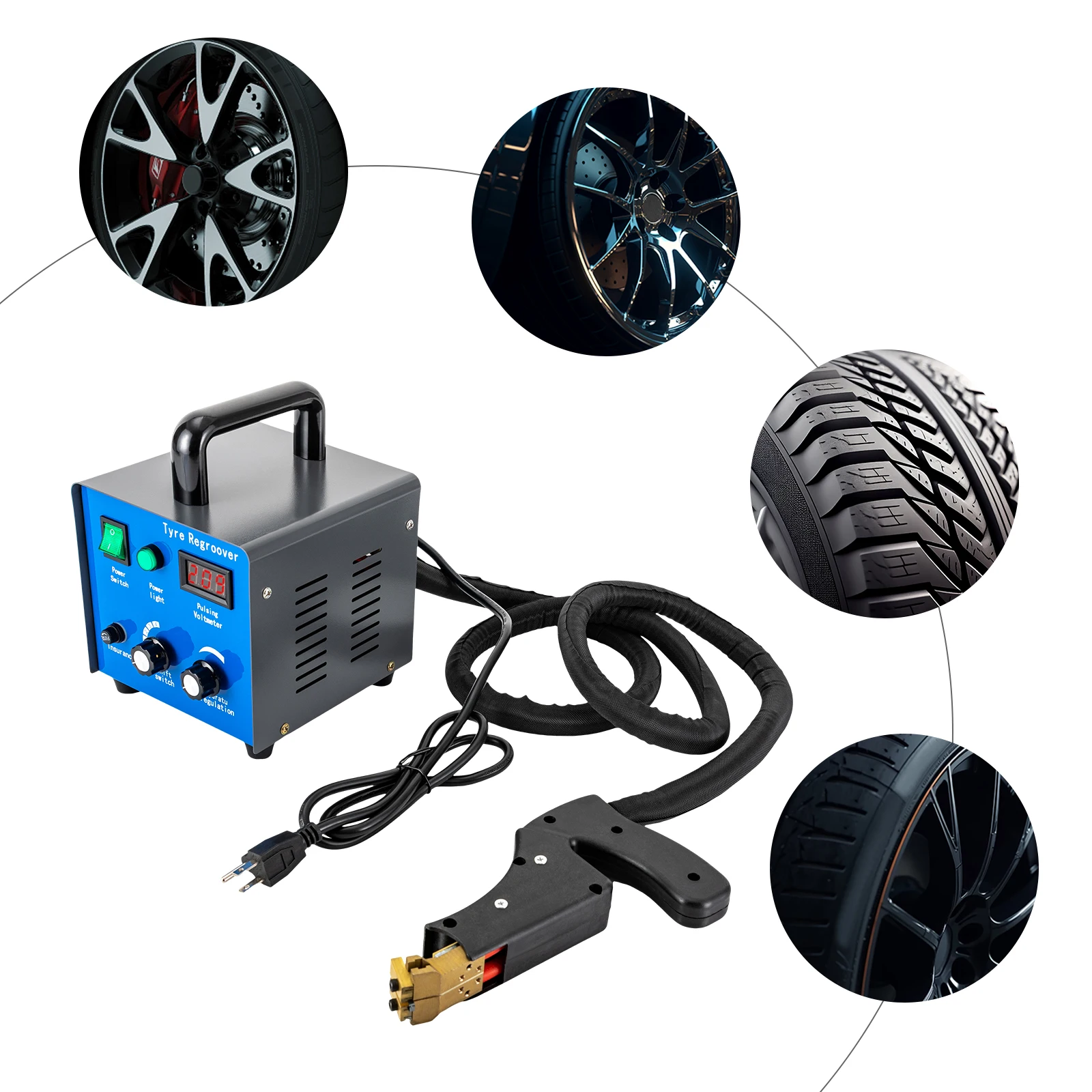

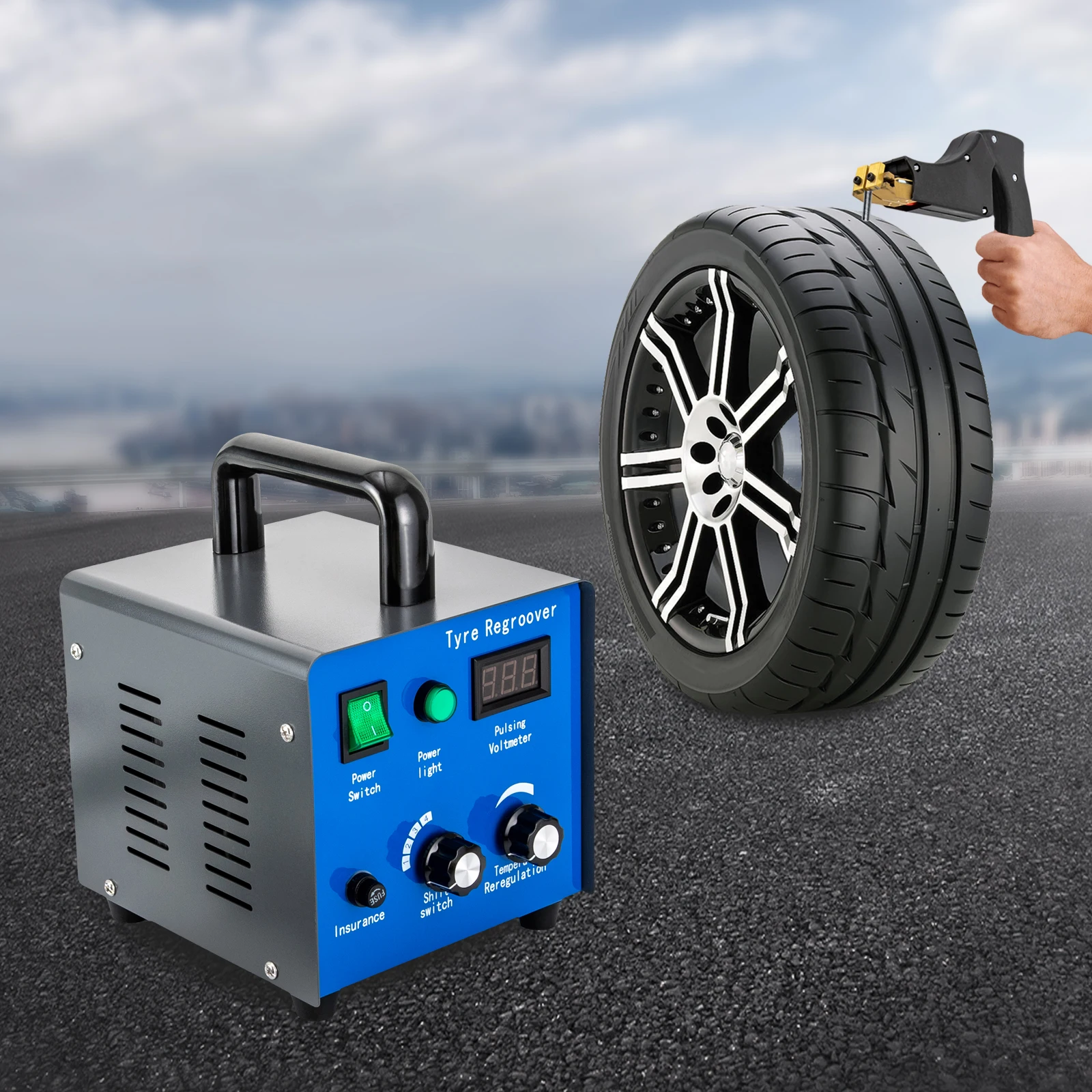

It has a wide range of applications and can be used to engrave and groove automotive tires, including racing tires, truck tires, motorcycle tires, go-kart tires, ATV tires, industrial tires, etc.

Specifications

Material: Copper, PV Soft Material

Voltage: 110V

Plug: US Standard

Output Power: 450W

Maxium Output Temperature: 600℃

Lead Wire Length: 1800mm/5.91ft

Power Cord Length: 1.5m/4.92ft

Cutting Width: 2-14mm/0.08-0.55in

Cutting Depth: 9-14mm/0.35-0.55in

Blade Size(W*D):

R1 Blades: 2-3*9mm/0.08-0.12*0.35in

R2 Blades: 3-5*9mm/0.12-0.2*0.35in

R3 Blades: 5-9*12mm/0.2-0.35*0.47in

R4 Blades: 7-11*13mm/0.28-0.43*0.51in

R5 Blades: 9-14*14mm/0.35-0.55*0.55in

W1 Blades: 2-3*9mm/0.08-0.12*0.35in

W2 Blades: 4-6*11mm/0.16-0.24*0.43in

W3 Blades: 6-9*13mm/0.24-0.35*0.51in

W4 Blades: 8-11*14mm/0.315-0.43*0.55in

W5 Blades: 10-14*14mm/0.39-0.55*0.55in

Knife Holder Handle: 300*200*70mm/11.8*7.87*2.76in

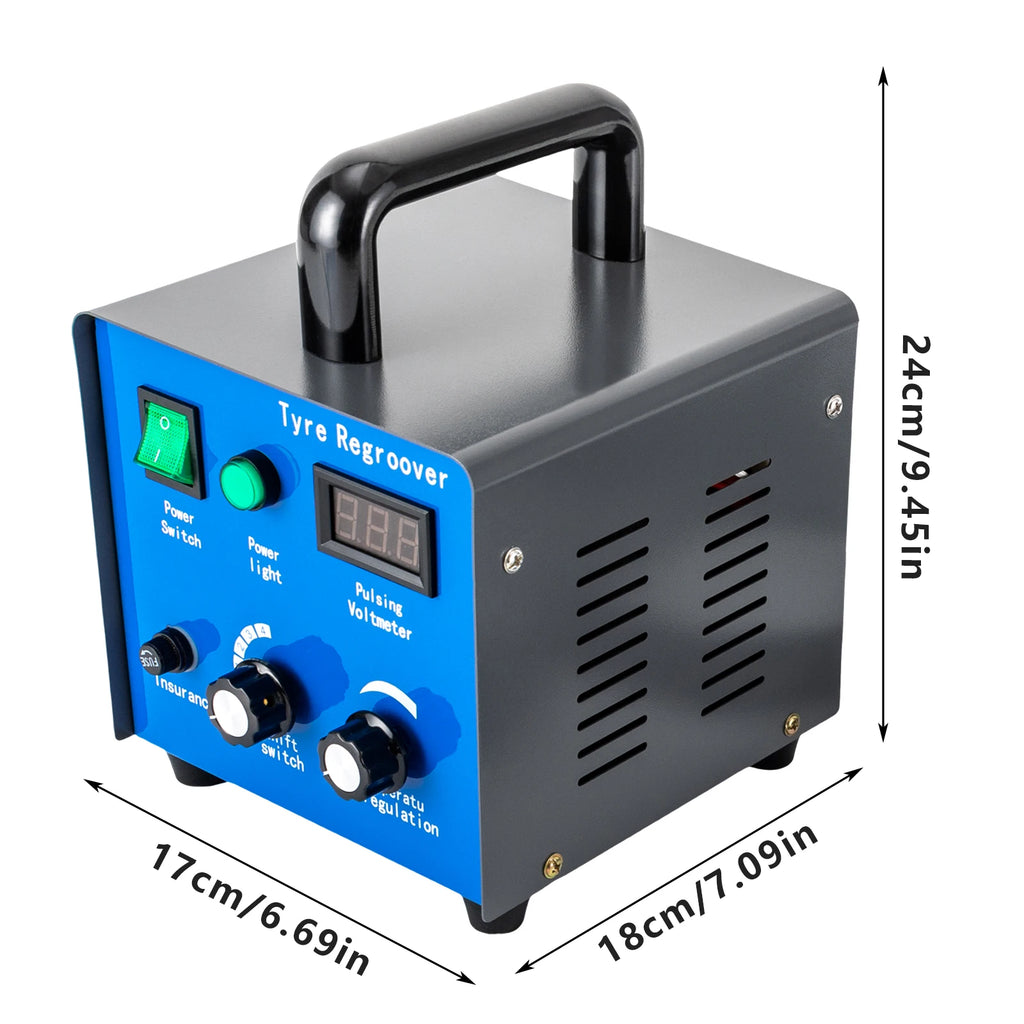

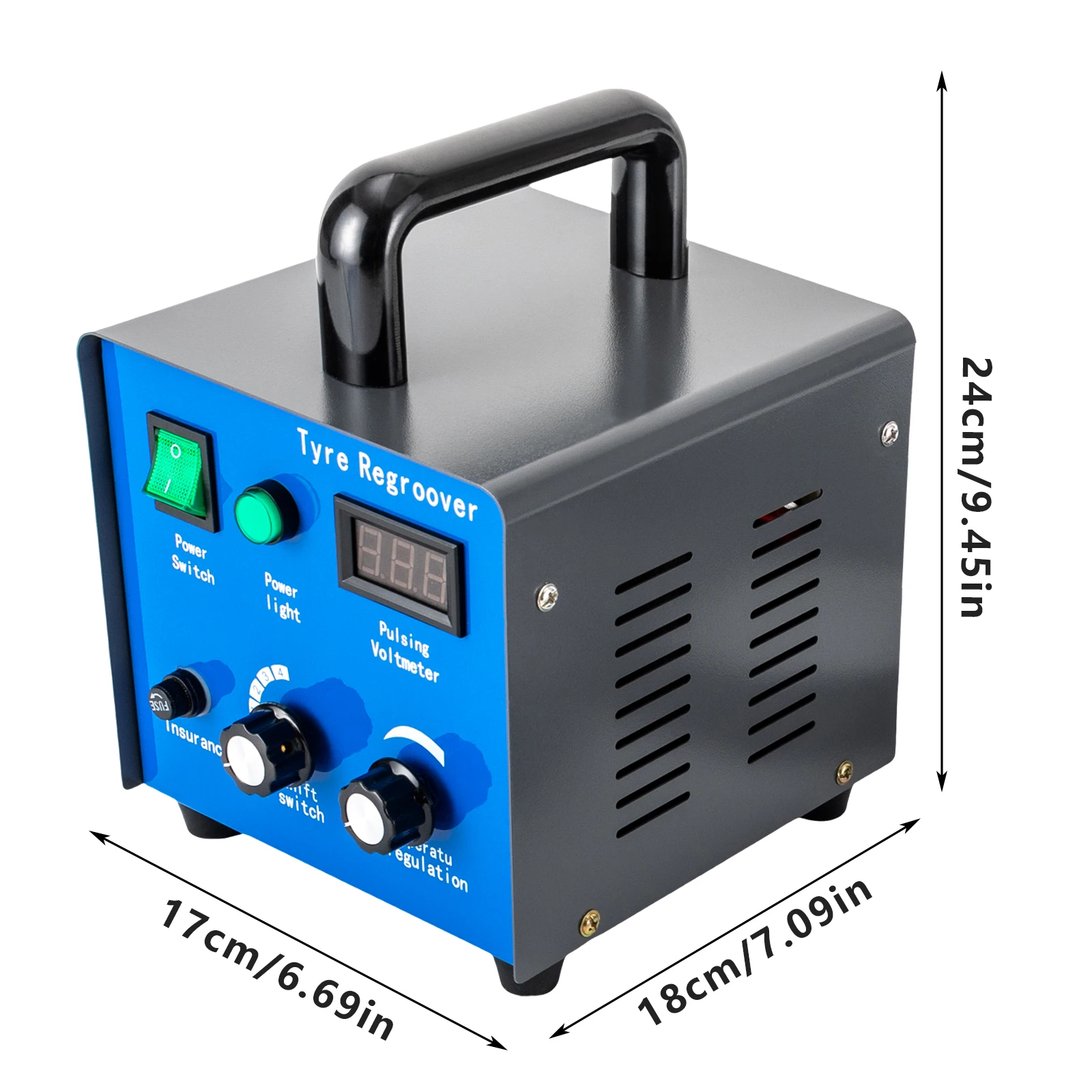

Product Size: 18*17*24cm/7.09*6.69*9.45in

Package Size: 29*26*22cm/10.2*9.8*8.7in

Gross Weight: 7.5kg/16.5 lbs

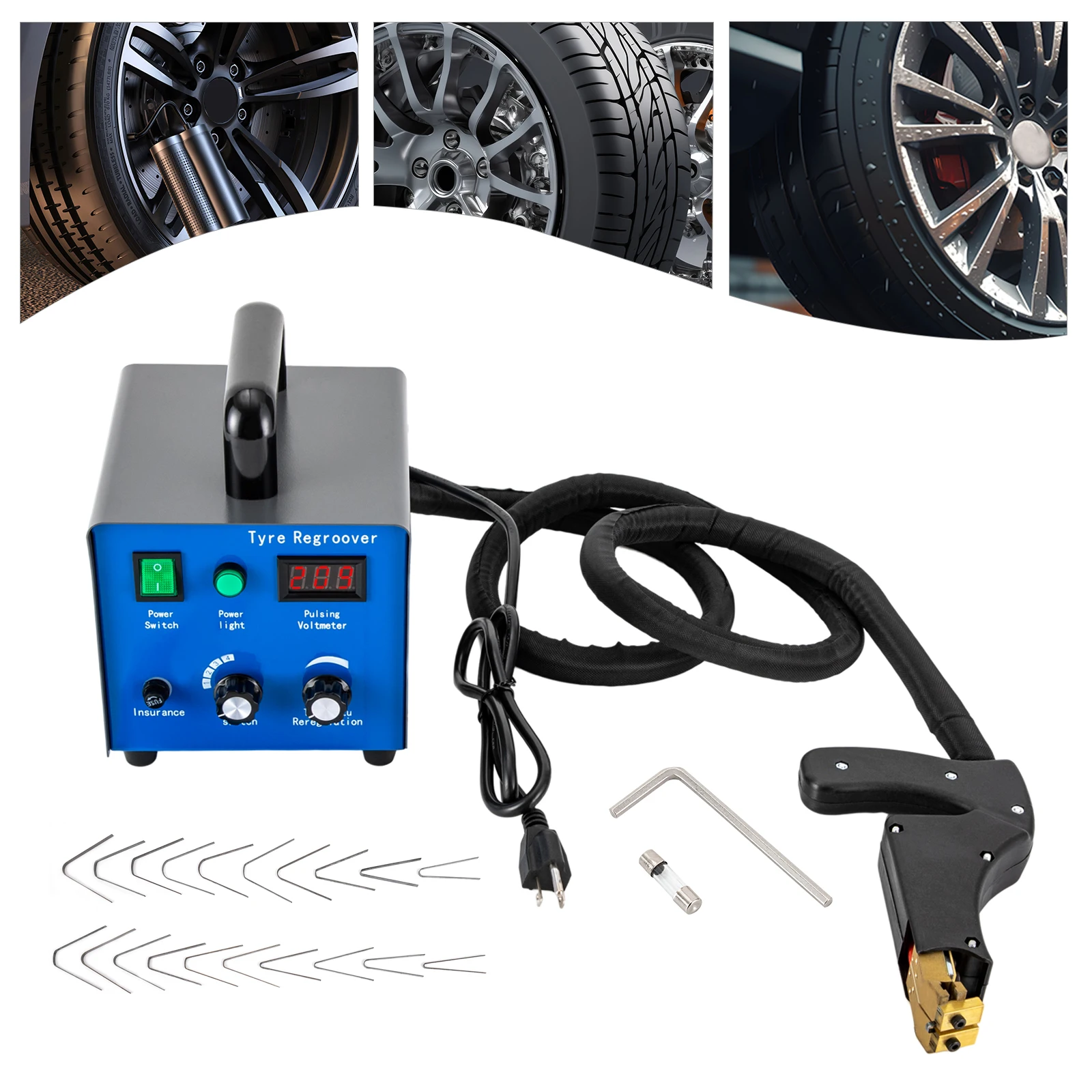

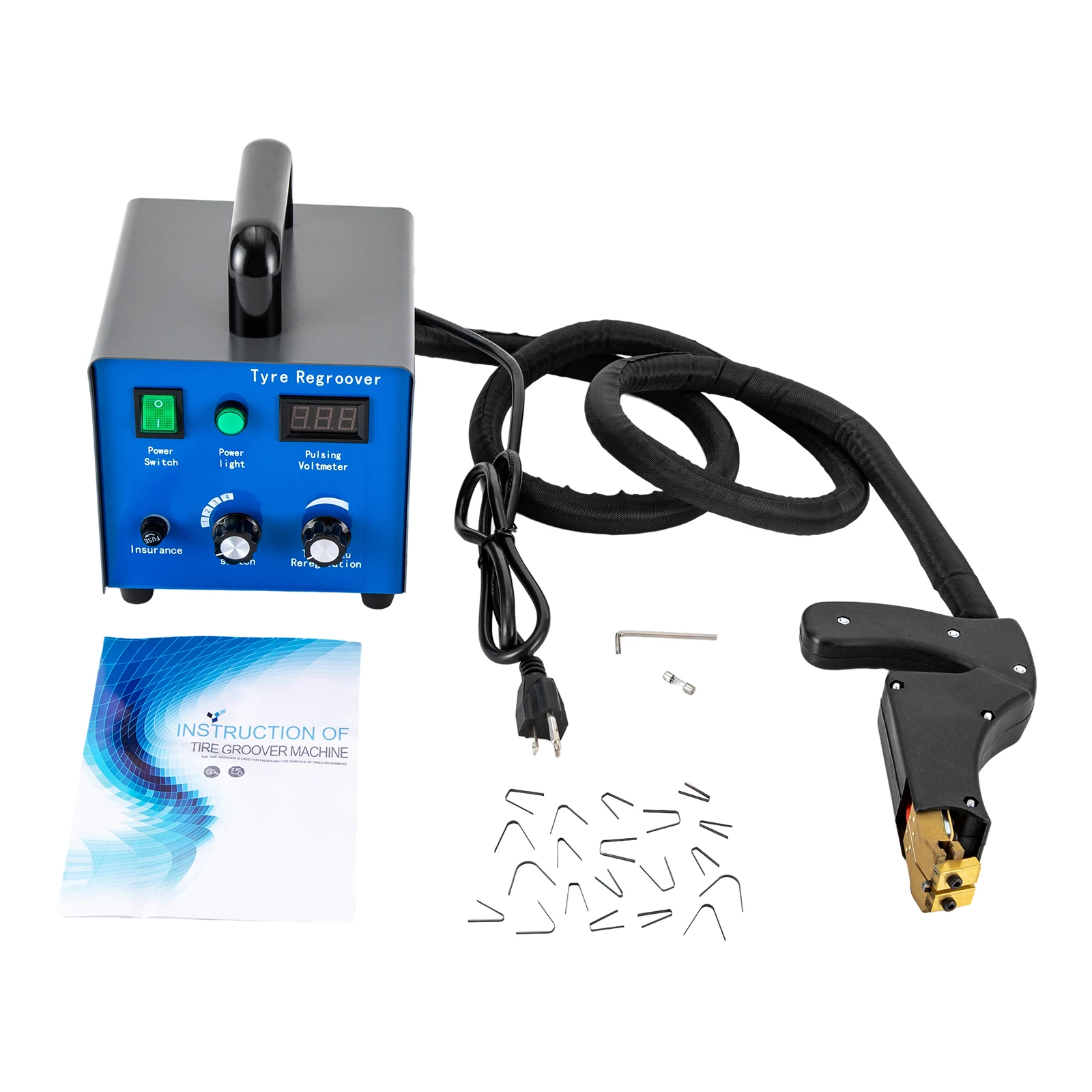

Package Included

1* Tire Groover Machine

2* R1 Blades

2* R2 Blades

2* R3 Blades

2* R4 Blades

2* R5 Blades

2* W1 Blades

2* W2 Blades

2* W3 Blades

2* W4 Blades

2* W5 Blades

1* English Manual

All Accessories for Use

Notes:

Please place the machine in a stable place.

Please clean the steel wires and stones on the tire before use to avoid burning the blade.

Please check that the power supply meets the standard voltage of the machine before use, and use a standard reliable AC grounded outlet.

When unplugging, you must hold the plug, do not grab the power cord and pull it. Also, do not place heavy objects on the power cord to prevent squeezing and damaging the power cord. Do not operate with wet hands when plugging in or unplugging. Do not plug or unplug the power cord in places where there is a gas leak.

If the power cord is damaged, to avoid danger, it must be replaced by the production plant, maintenance department, or similar professionals.

Normally, the pulse power cord may get hot while the machine is in operation.

When using the blade, do not dry burn. Do not let the blade burn red when using, otherwise, the blade will be easily damaged.

The engraving depth and the depth of the exposed part of the fixed blade must be the same.

When installing the blade, the contact points of the copper heads of the two clamping blades must not be connected, otherwise, the main machine may be damaged.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
