SPECIFICATIONS

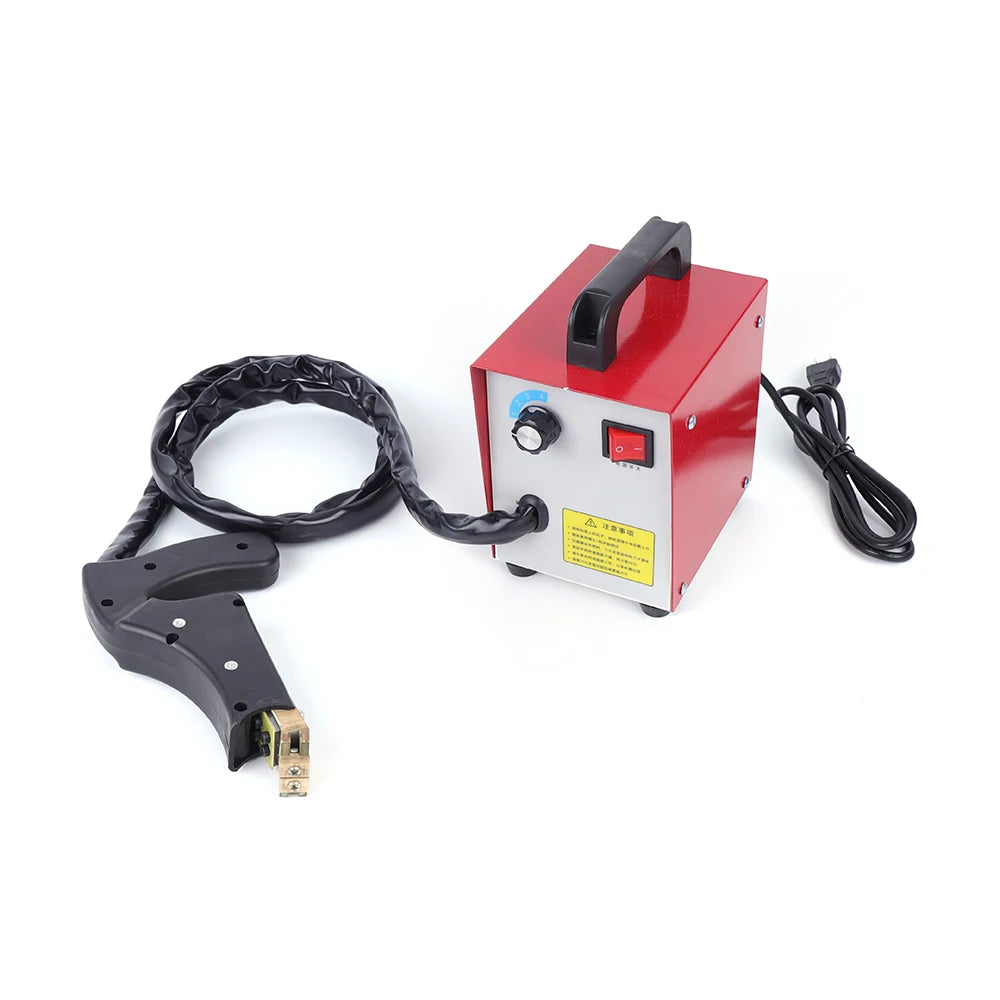

Tire Regroover

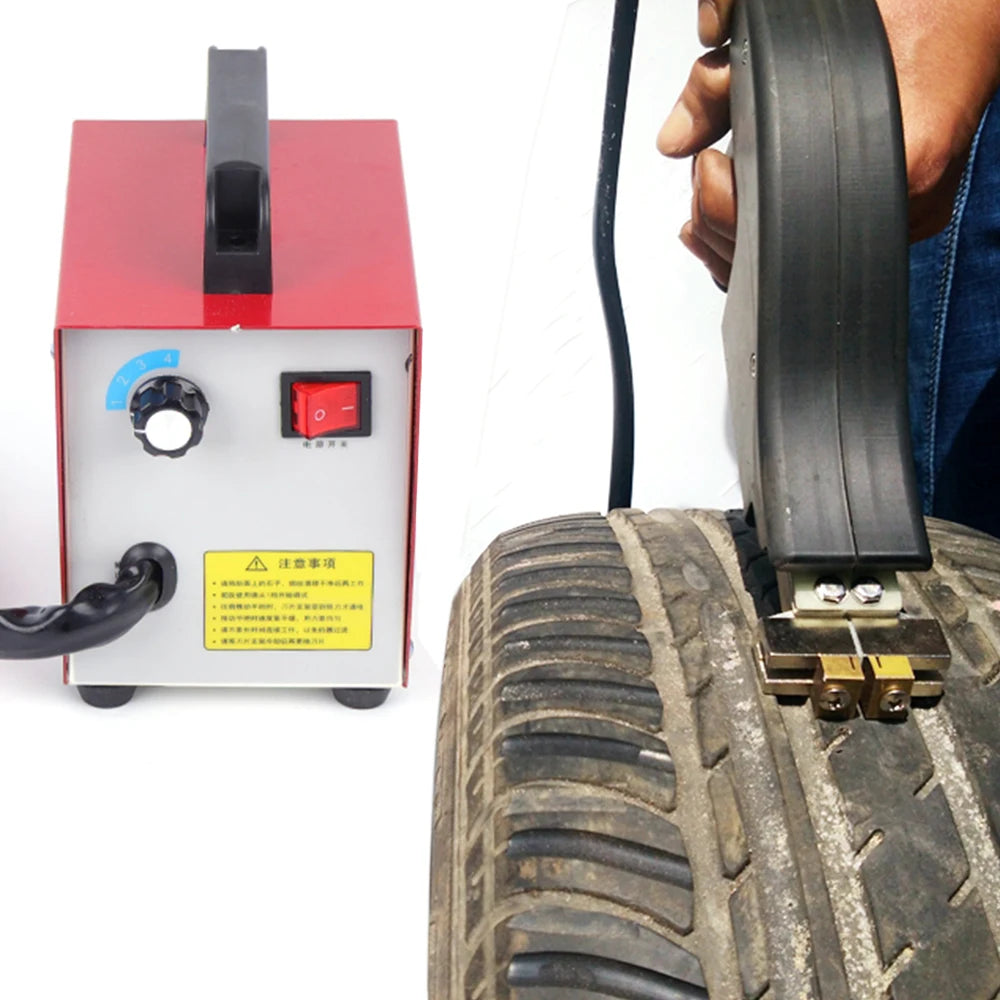

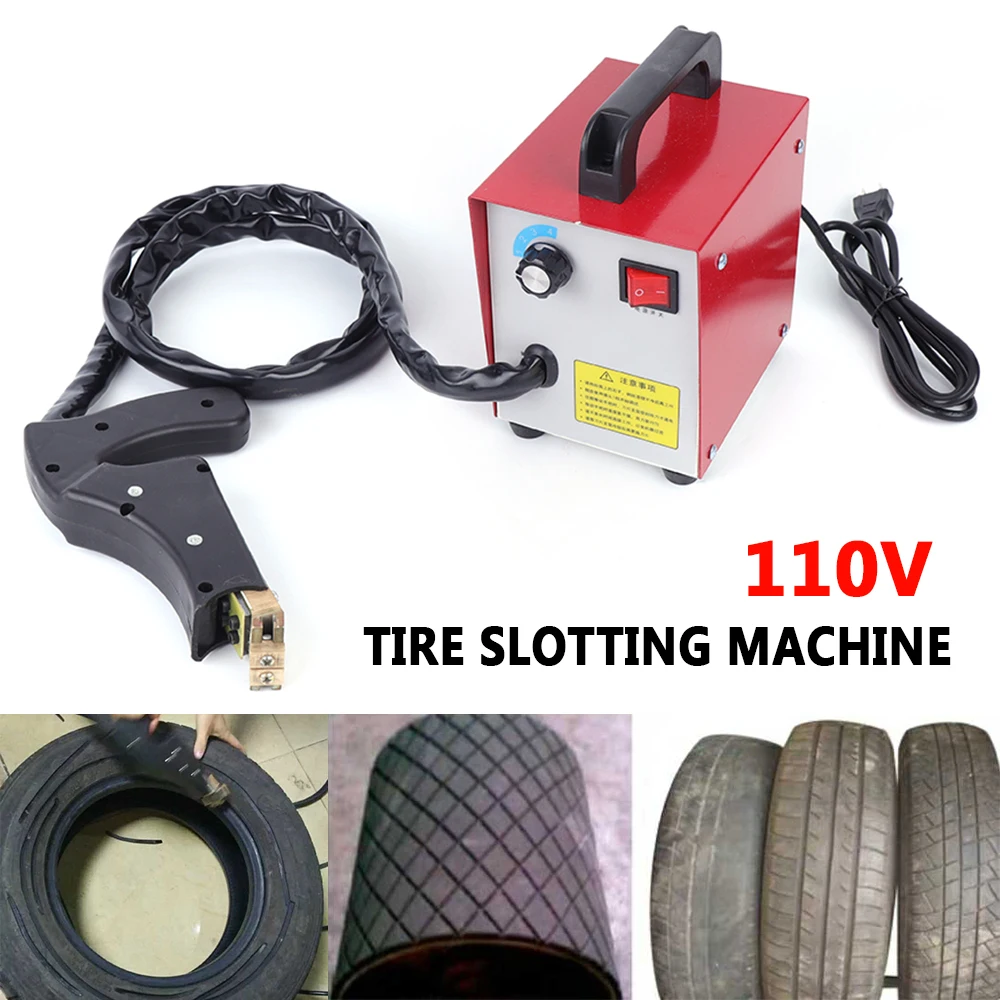

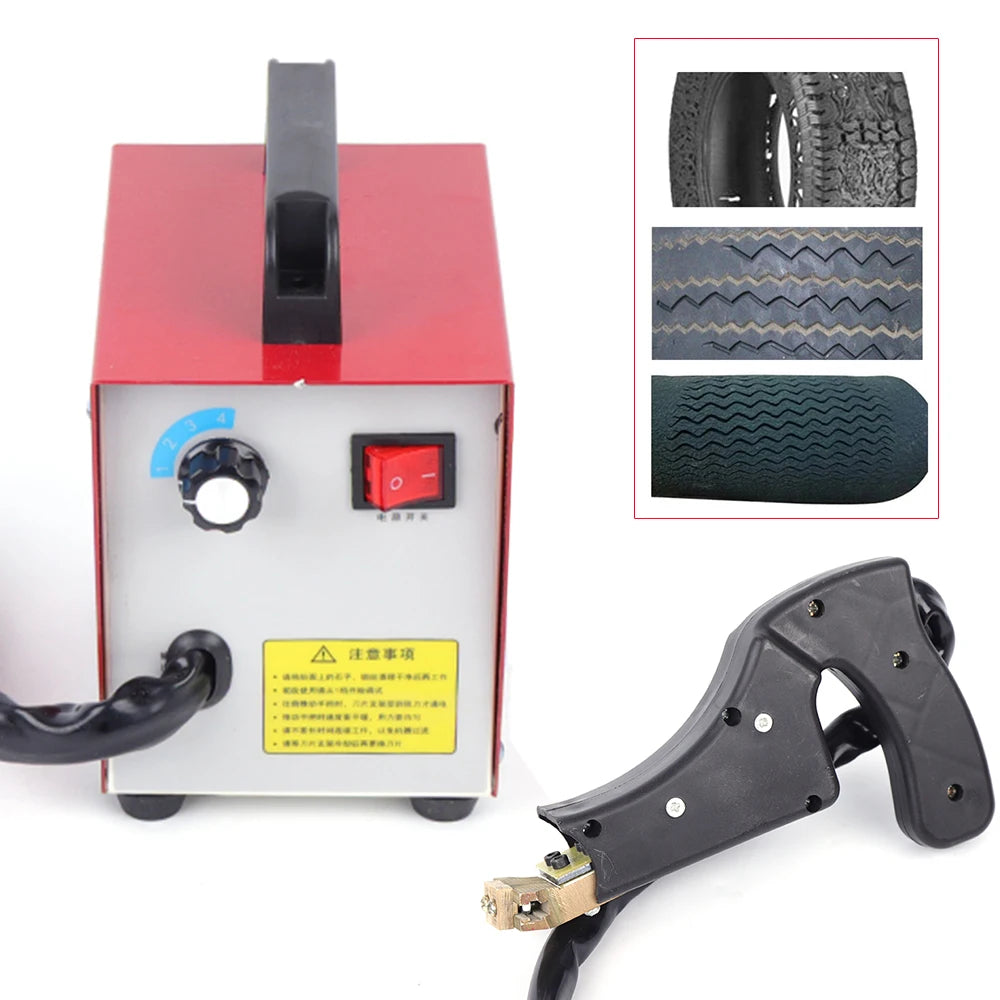

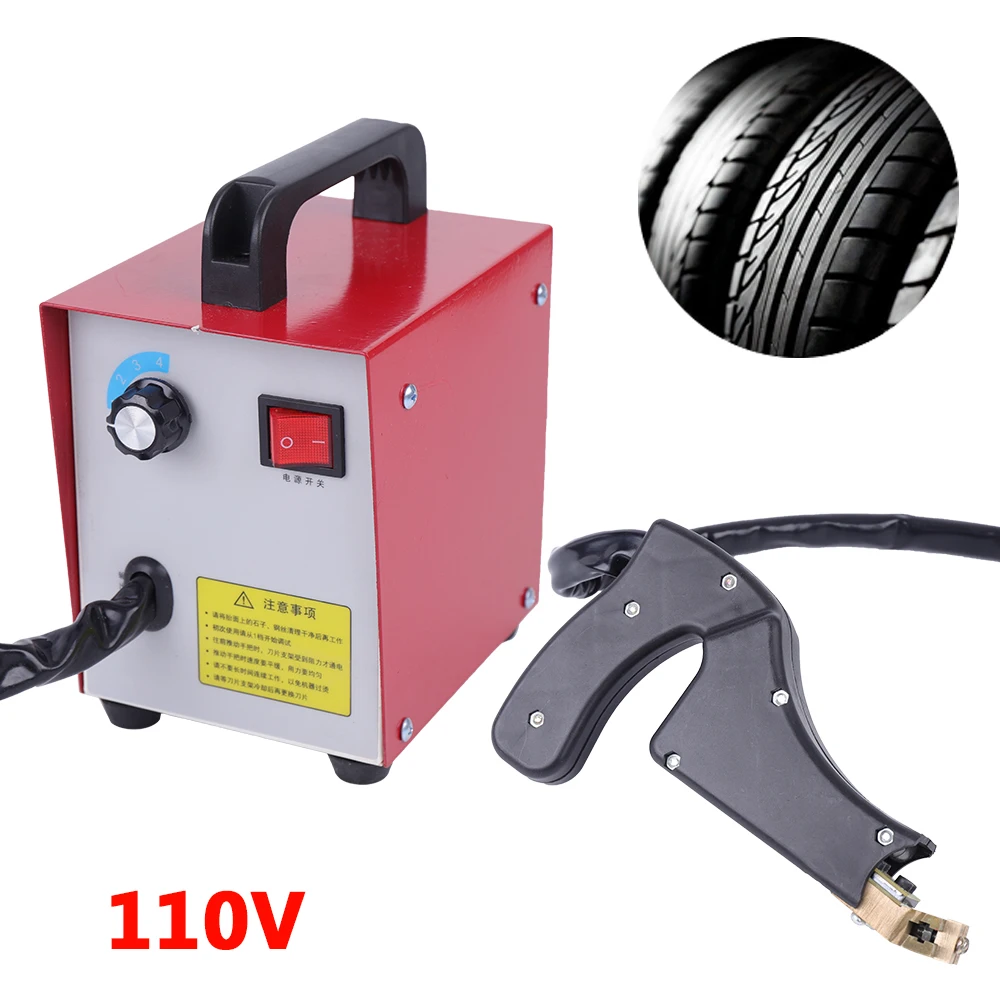

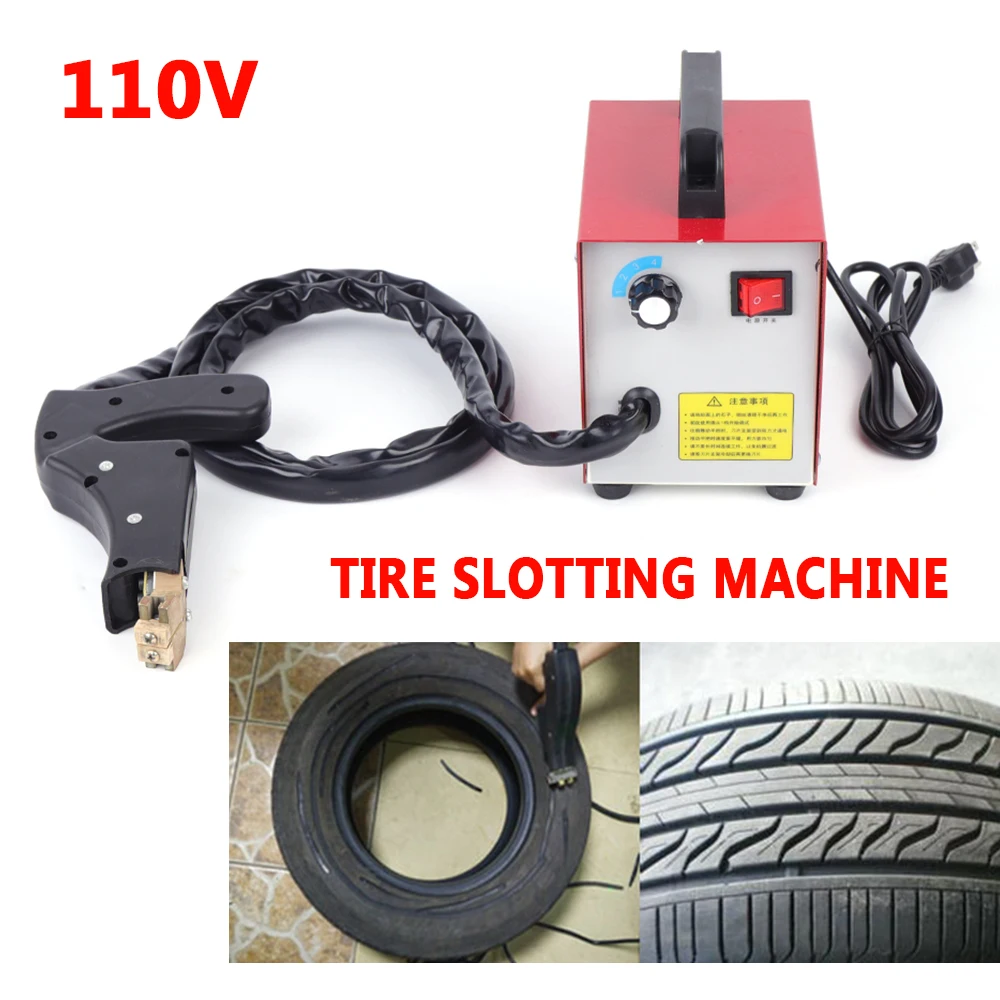

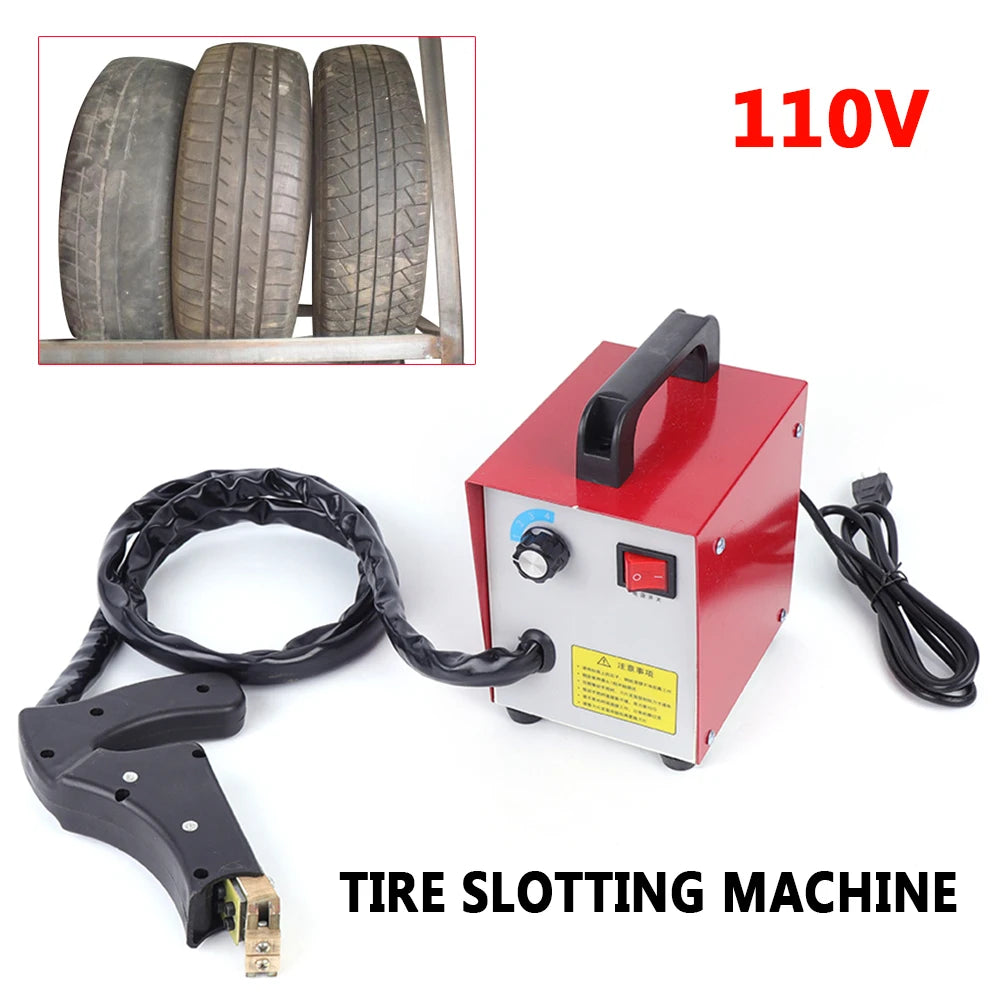

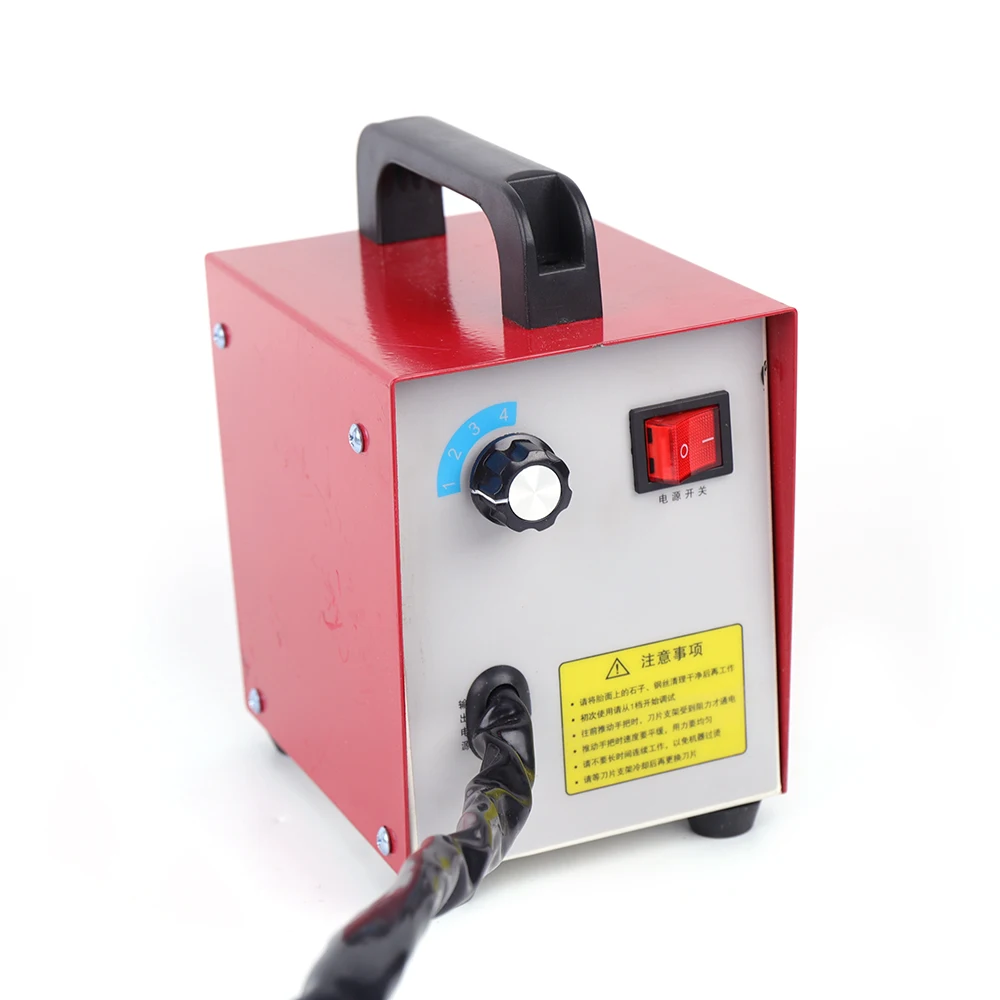

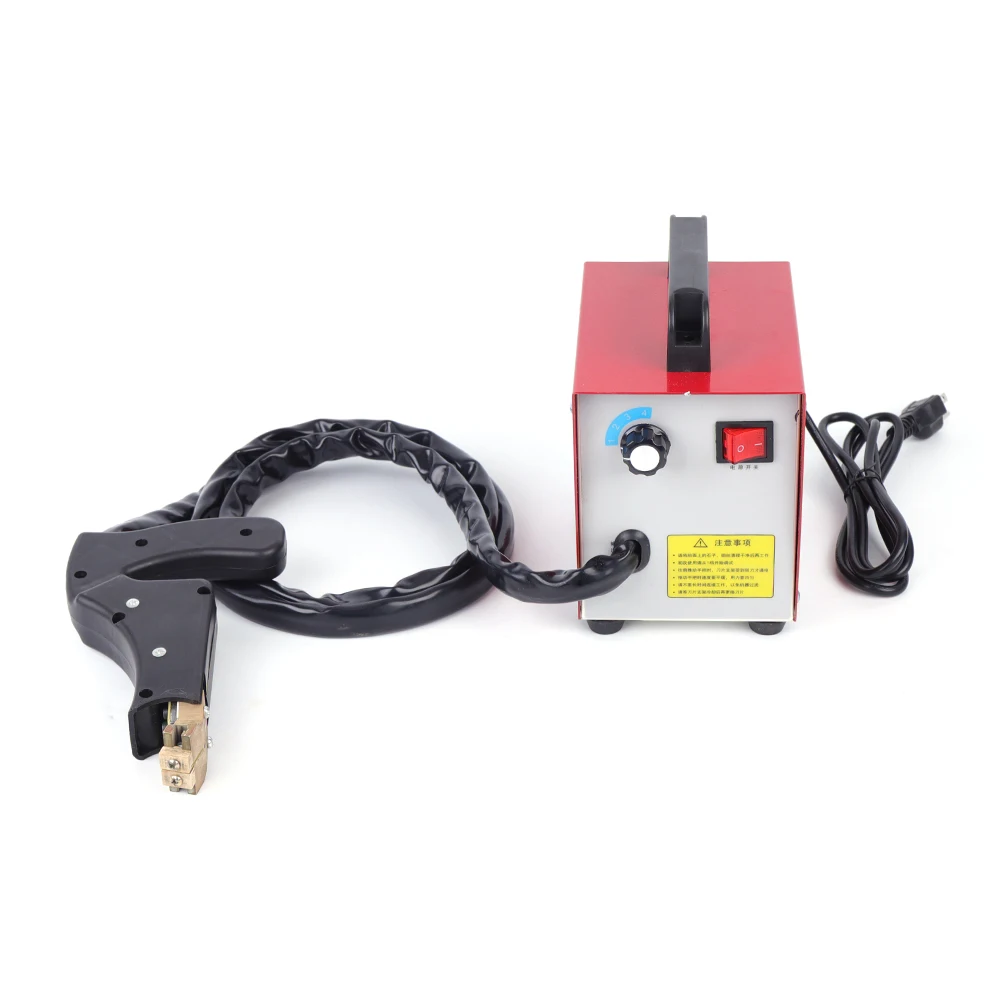

Tire Grooving Tool

The tread pattern of the tire not only improves its appearance but also increases the friction between the tread and the road to achieve the function of improving driving safety. This tire grooving tool uses an advanced microcomputer temperature control system to provide you with an adjustable temperature of 0-600°C for flexible and accurate grooving.

Tire Grooving Tool

The tread pattern of the tire not only improves its appearance but also increases the friction between the tread and the road to achieve the function of improving driving safety. This tire grooving tool uses an advanced microcomputer temperature control system to provide you with an adjustable temperature of 0-600°C for flexible and accurate grooving.

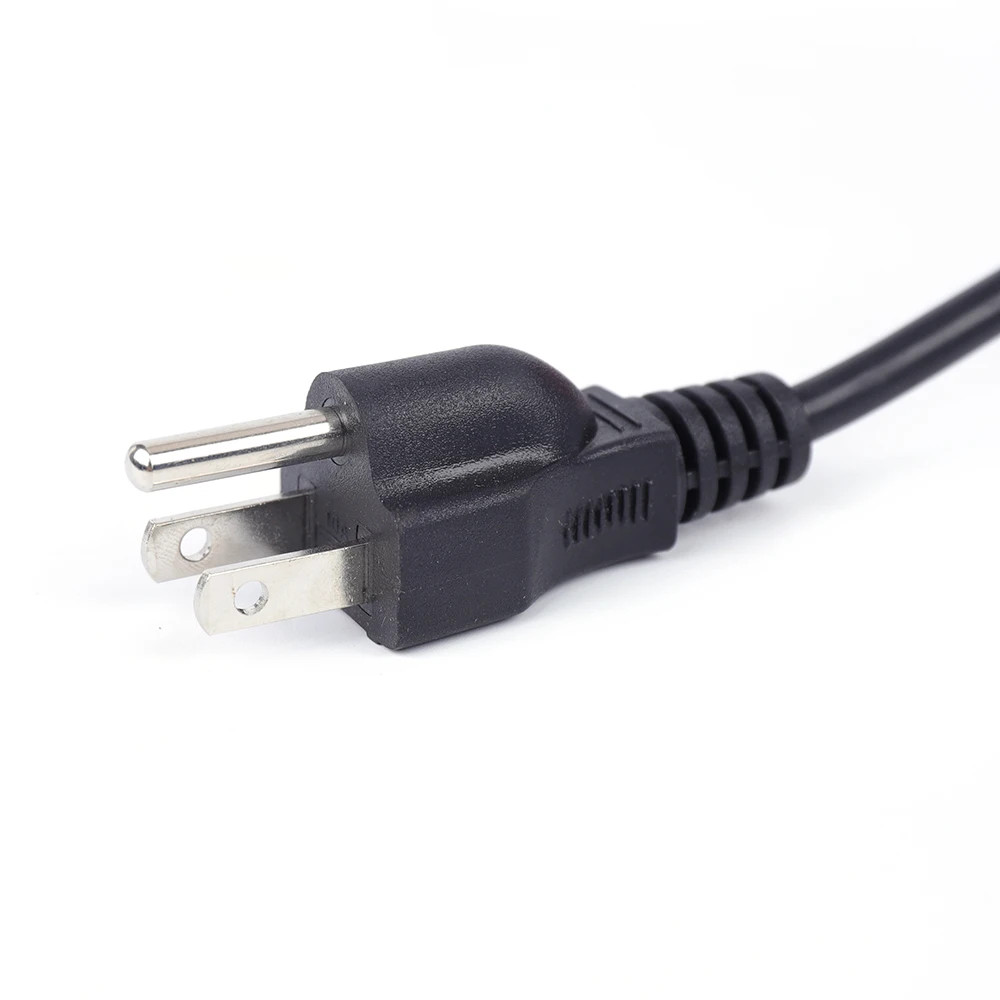

Durable Power Cord: Longer and thicker power cord (4.9feet in length)give you the flexibility to operate while providing safe operation.

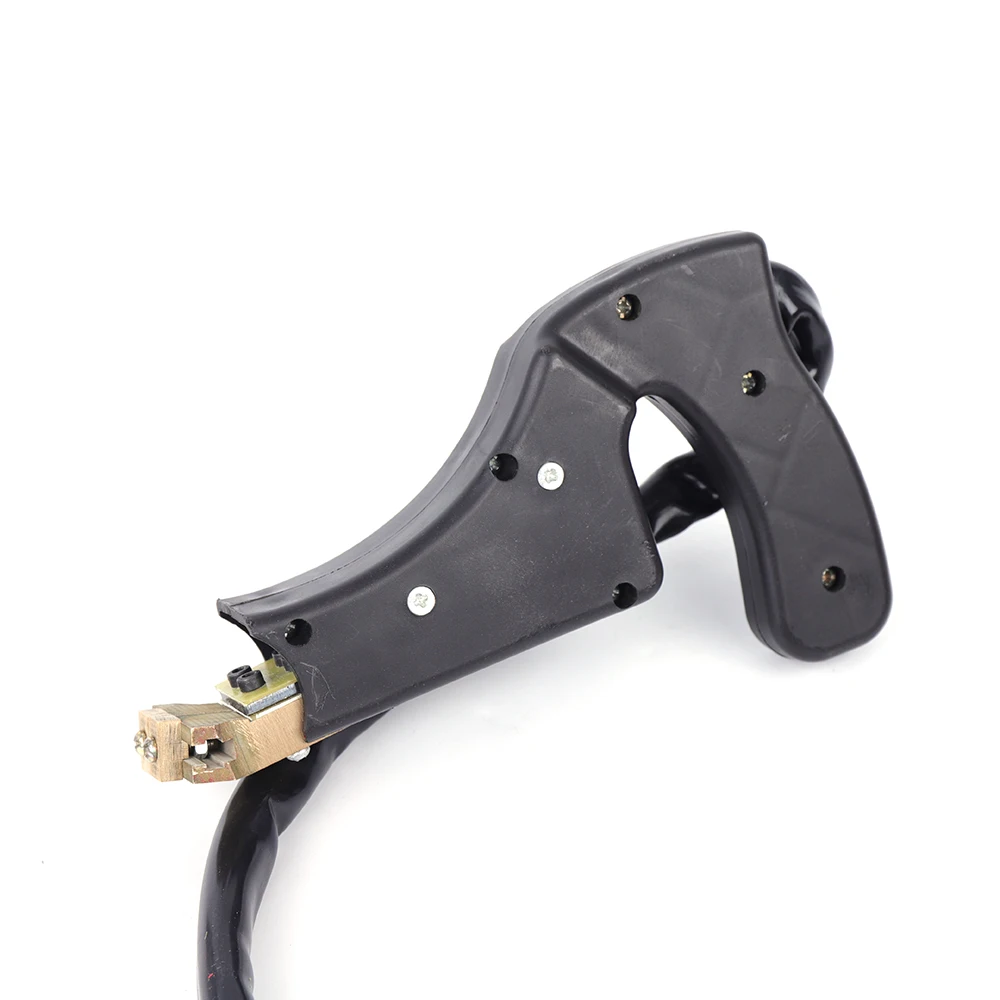

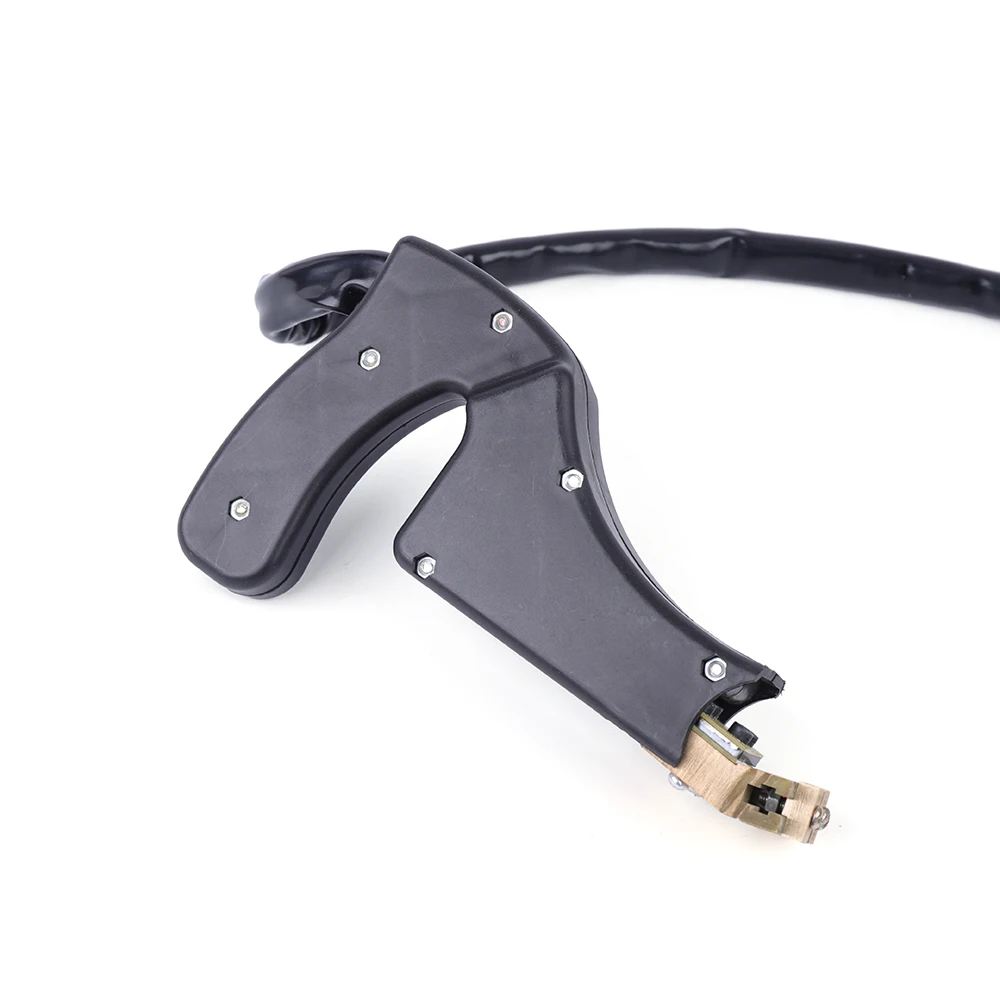

Ergonomic Handles: The ergonomically designed handle fits snugly in the palm of your hand and does not move easily. The lightweight,

the compact handle allows you to use it for a long time without too much fatigue. The top handle makes the machine easy to move and carry.

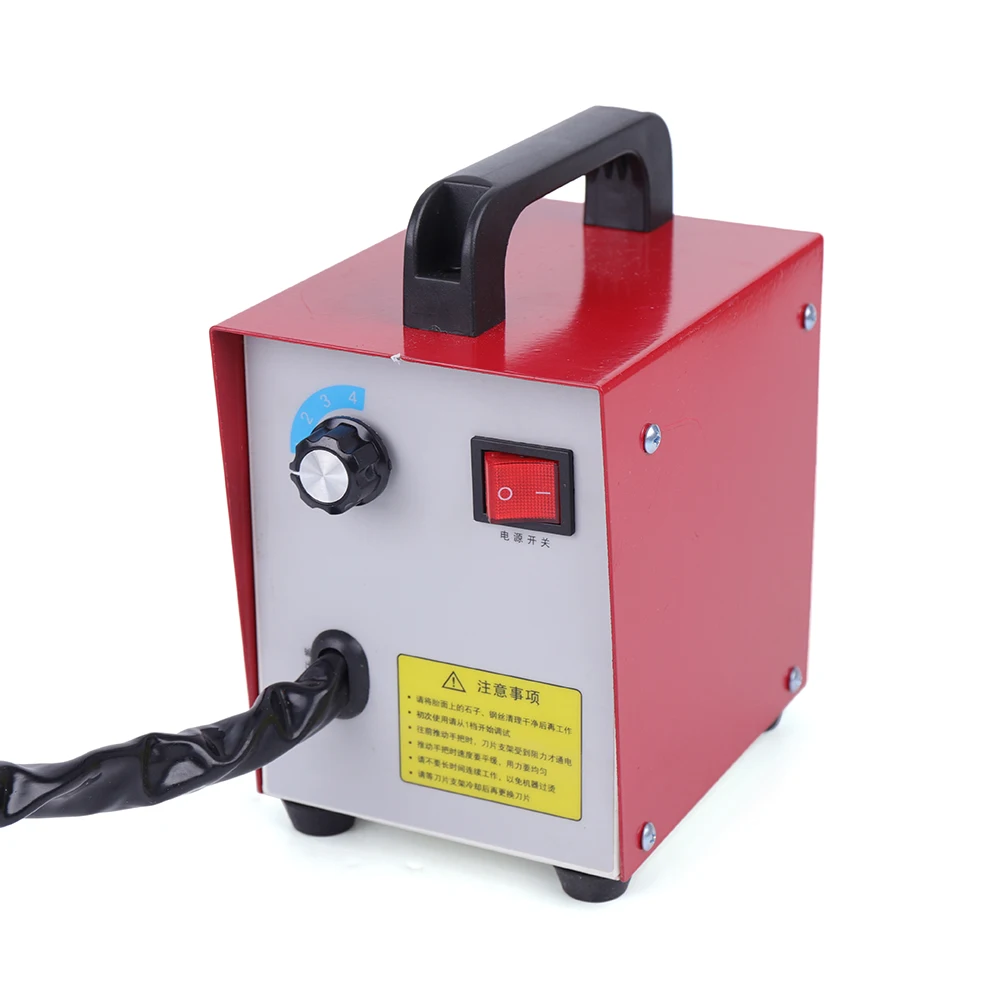

Support Feet: The four support feet at the bottom can stabilize the product so that it does not slide or shake.

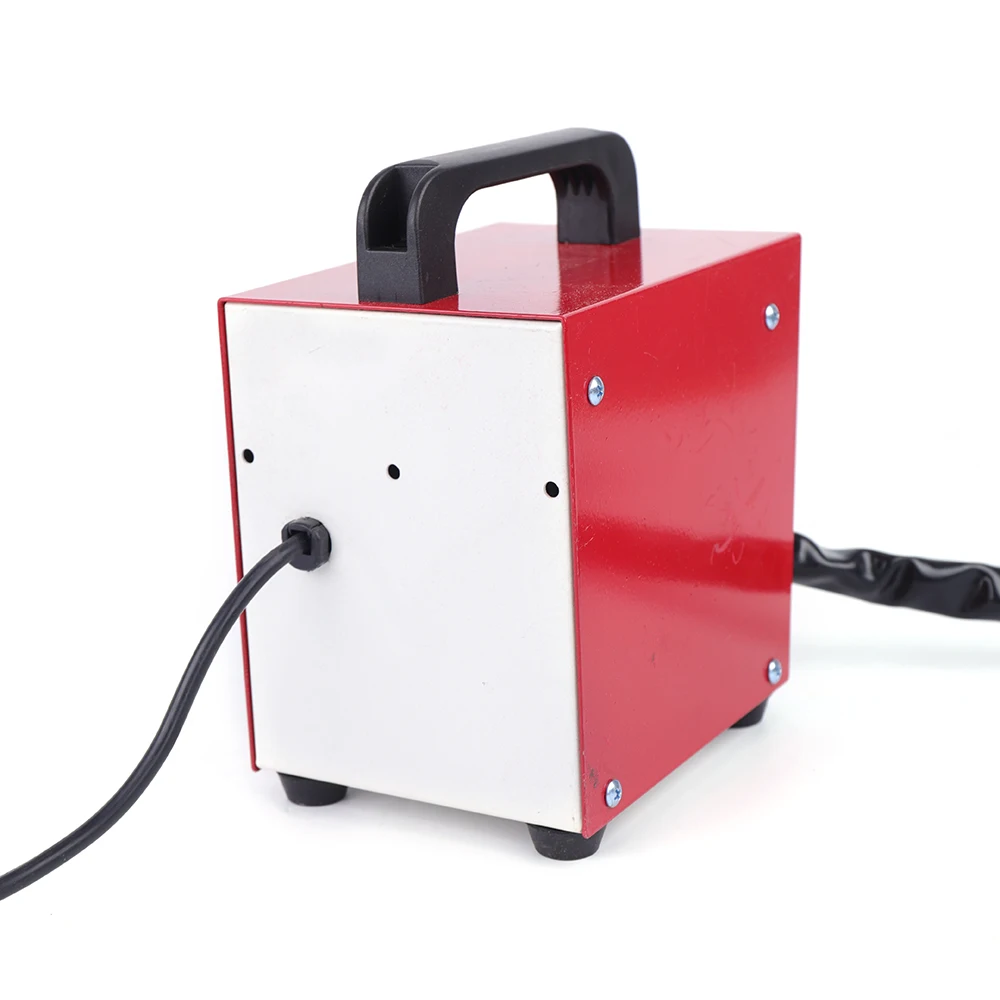

Cooling Hole: The cooling hole on the back of the product can dissipate heat in time to avoid overheating.

Application

It is suitable for a wide range of applications including racing tires, truck tires, motorcycle tires, go-kart tires, ATV tires, industrial tires, and more.

Specifications

Material: Copper, Iron, Plastic

Color: Red, White

Operating Type: Manual

Process: Spray Painting

Power: 350W

Voltage: 110V

Number of Gears: 4

Adjustable Temperature: 0-600℃/32-1112℉

Power Cord Length: 1.5m/4.9ft

Gross Weight: 6.75kg/14.88lbs

Package Size: 33.25*21.5*28cm/13.09*8.46*11.02in

Product Size: 17*12.5*20cm/6.69*4.92*7.87in

Handle Length: 21cm/8.26in

Depth: 7-16mm/0.28-0.63in

Width: 3-20mm/0.12-0.79in

Package Included

1*Tire Grooving Tool

1*U-shape Blade

1*V-shape Blade

1*English User Manual

Notes

1. Please clean the gravel and steel wire on the tread before working.

2. Please start debugging from 1 gear for the first time. 1 gear is the lowest, and 4 gear is the highest. Please choose according to the depth of the pattern.

3. Push the handle forward, the blade holder is subject to resistance before the power is turned on. In cutting tire rubber at the same time to cool down the blade. Do not stop or dry burn on the way, otherwise, the blade will melt if the temperature is too high.

4. Push the handle speed to be gentle, and force to be even.

5. Please do not work continuously for a long time to avoid the machine being too hot.

6. Please wait for the blade holder to cool down before replacing the blade.

7. After the completion of the operation should immediately stop the force, release the handle, and do not push.

8. When unplugging, be sure to hold the plug, do not grab the power cord pull. Do not use wet hands to insert and remove the power plug. Do not put heavy objects on the power supply, or squeeze the power cord. Do not plug or unplug the power cord in places where there is a gas leak.

9. If the power cord is damaged, please have it replaced by a professional to avoid danger.

10. Please use a standard reliable AC grounded outlet.

11. The contact points of the two copper head clamping blades are not allowed to be together, otherwise the main unit will be easily damaged.

12. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
